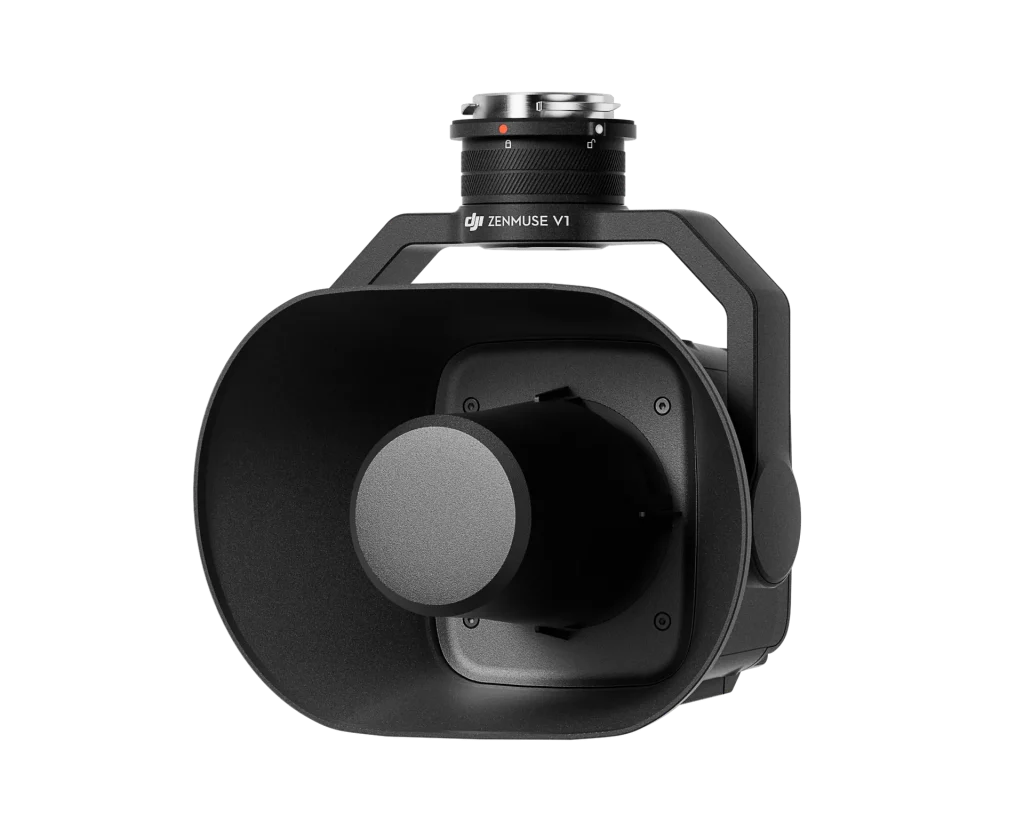

DJI Zenmuse V1
High‑Power Aerial Speaker for Emergency and Public Safety Operations
Purpose-built for mission-critical communication, the Zenmuse V1 transforms drones into airborne public address systems—delivering loud, clear audio across wide areas with precision and control. Whether deployed in fast-moving emergencies or coordinated field operations, it ensures frontline teams can broadcast instructions, alerts, or crowd guidance directly from the sky.
The DJI Zenmuse V1 is DJI’s first dedicated speaker payload for multi-sensor drone platforms. Designed for clear, long-range audio transmission, it enables real-time communication in critical scenarios such as public safety, emergency response, search and rescue, and crowd management. Compatible with the DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK, the Zenmuse V1 delivers powerful sound output, multiple broadcast modes, and seamless integration with DJI Pilot 2 and FlightHub 2 for coordinated ground and aerial operations.
Key Features
Powerful Audio Transmission
Multiple Broadcast Modes
Clear Recording & Noise Reduction

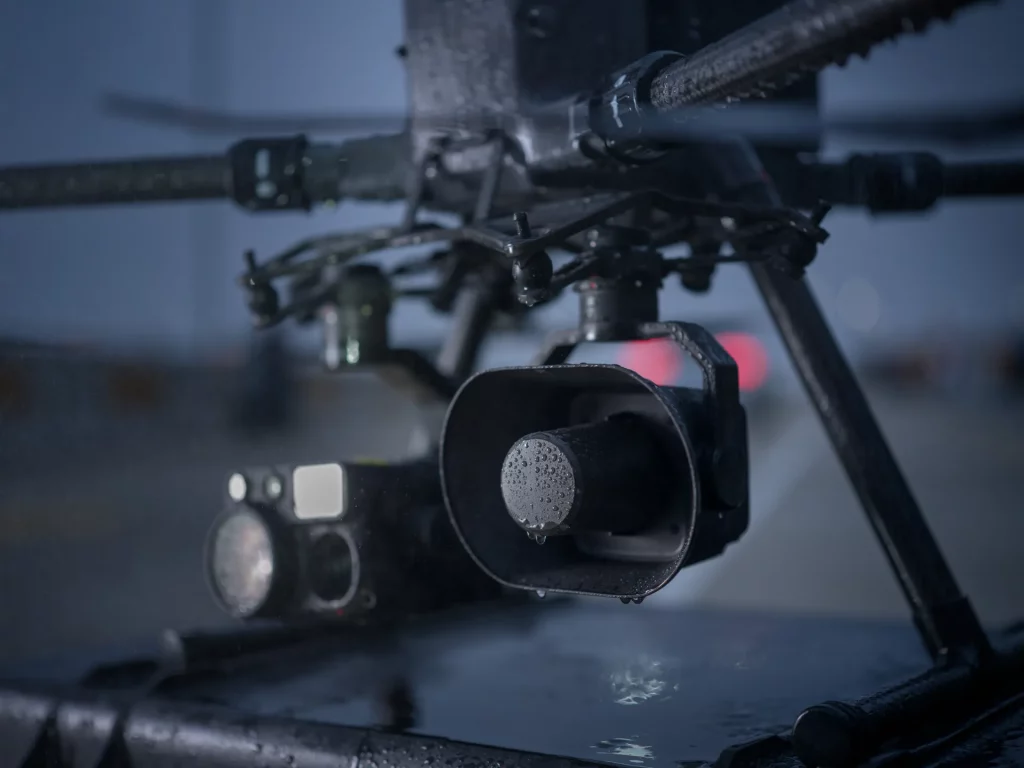

Robust & Reliable Design
Seamless Integration & Control
Specs Sheet
General
| Category | Specification |
| Product Name | Zenmuse V1 |
| Weight | 690 ± 10 g |
| Dimensions | 134 × 119 × 140 mm |
| Rated Power | 30 W |
| Supported Aircraft | Matrice 400; Matrice 350 RTK; Matrice 300 RTK (requires DJI RC Plus) |
| Shell Temperature | < 50 °C (122 °F plastic shell) |
| Ingress Protection Rating | IP54 |
Product Name
Zenmuse V1
Weight
690 ± 10 g
Dimensions
134 × 119 × 140 mm
Rated Power
30 W
Supported Aircraft
Matrice 400;
Matrice 350 RTK;
Matrice 300 RTK (requires DJI RC Plus)
Matrice 350 RTK;
Matrice 300 RTK (requires DJI RC Plus)
Shell Temperature
< 50 °C (122 °F plastic shell)
Ingress Protection Rating
IP54
Environment
| Category | Specification |
| Operating Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Storage Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
Operating Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Storage Temperature
–20 °C to 60 °C (–4 °F to 140 °F)
Gimbal
| Category | Specification |
| Stabilization System | Single-axis (tilt) |
| Angular Vibration Range | Hover ± 0.01°; Flight ± 0.02° |
| Mounting | Detachable DJI SKYPORT |
| Mechanical Range | Tilt: –125° to +25° (structural limit) |
| Controllable Range | M400: –120° to –5° (downward); M300/350 RTK: –120° to –5° (downward); –5° to +120° (upward) |
| Operation Mode | Follow; Free; Re-center |
Stabilization System
Single-axis (tilt)
Angular Vibration Range
Hover ± 0.01°; Flight ± 0.02°
Mounting
Detachable DJI SKYPORT
Mechanical Range
Tilt: –125° to +25° (structural limit)
Controllable Range
M400: –120° to –5° (downward);
M300/350 RTK: –120° to –5° (downward); –5° to +120° (upward)
M300/350 RTK: –120° to –5° (downward); –5° to +120° (upward)
Operation Mode
Follow; Free; Re-center
Speaker
| Category | Specification |
| Impedance | 4 Ω |
| Nominal Power | 25 W |
| Effective Broadcast Distance | 700 m (Matrice 400); 500 m (Matrice 350/300 RTK) |
| Max Sound Pressure Level | 129 dB @ 1 m (M400); 127 dB @ 1 m (M350/300 RTK) |
| Effective Bandwidth | 800 Hz to 8 kHz |
Impedance
4 Ω
Nominal Power
25 W
Effective Broadcast Distance
700 m (Matrice 400); 500 m (Matrice 350/300 RTK)
Max Sound Pressure Level
129 dB @ 1 m (M400); 127 dB @ 1 m (M350/300 RTK)
Effective Bandwidth
800 Hz to 8 kHz
Basic Features
| Category | Specification |
| Record & Broadcast | Real-time broadcasting (M400 only); Record & broadcast |
| Text-to-Speech | Chinese; English; Spanish; Korean; Japanese; French (M400); Chinese; English (M350/300 RTK) |
| Audio File Playback | MP3; AAC; WAV; Simultaneous transfer & playback (M400) |
| Playback Control | Start; Stop recording; Loop playback; Volume adjustment |
| Remote Controller Button | One-button press to record & play |
| Gimbal Synchronization | Synchronized control with other gimbal-equipped payloads |
Record & Broadcast
Real-time broadcasting (M400 only); Record & broadcast
Text-to-Speech
Chinese; English; Spanish; Korean; Japanese; French (M400); Chinese; English (M350/300 RTK)
Audio File Playback
MP3; AAC; WAV; Simultaneous transfer & playback (M400)
Playback Control
Start; Stop recording; Loop playback; Volume adjustment
Remote Controller Button
One-button press to record & play
Gimbal Synchronization
Synchronized control with other gimbal-equipped payloads
Special Features
| Category | Specification |
| Intelligent Volume Adjustment | Automatic gain control (Matrice 400) |
| Directional Audio Recording | Directional pickup; Environmental noise reduction |
| Payload Protection | Temperature protection; Overcurrent protection; Power protection |
| Directional Broadcasting | AR projection orientation indicator in DJI Pilot 2 |
Intelligent Volume Adjustment
Automatic gain control (Matrice 400)
Directional Audio Recording
Directional pickup; Environmental noise reduction
Payload Protection
Temperature protection; Overcurrent protection; Power protection
Directional Broadcasting
AR projection orientation indicator in DJI Pilot 2
Bundles

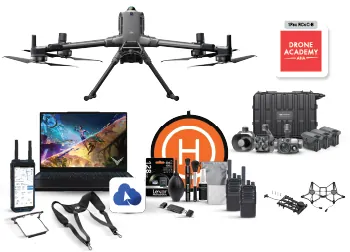

Matrice 400 Advance Surveillance Package
