DJI Dock 3

Flagship Autonomous Drone Deployment System

The DJI Dock 3 redefines autonomous drone operations—offering 24/7 vehicle-mounted or fixed-site deployment with unmatched durability, environmental resilience, and advanced automation. It’s purpose-built for critical missions such as inspection, surveying, and emergency response, combining rugged design with seamless integration into drone ecosystems.

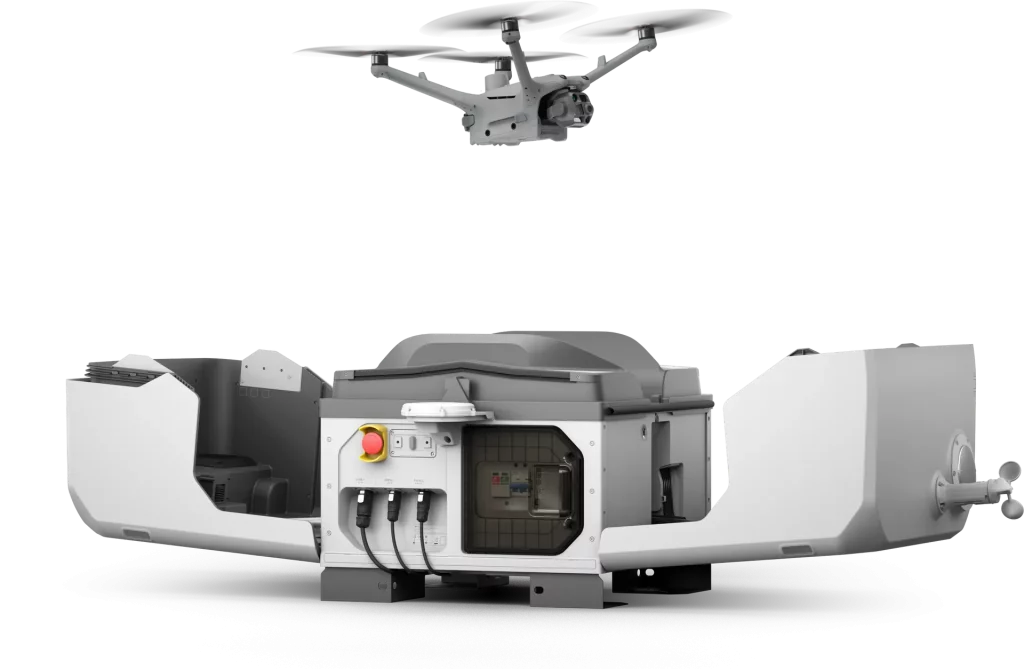

DJI’s first dock designed specifically for vehicle mounting, the Dock 3 supports fully automated flights using Matrice 4D/4TD drones. With rapid 10-second takeoff, dual-dock support, intelligent RTK positioning, and real-time mission control via FlightHub 2, it enables reliable drone-in-a-box performance—even in dynamic or remote conditions.

One System, Multiple Advantages

Compatible with Matrice 4D / 4TD (IP55)
10-sec Auto Launch (GNSS)

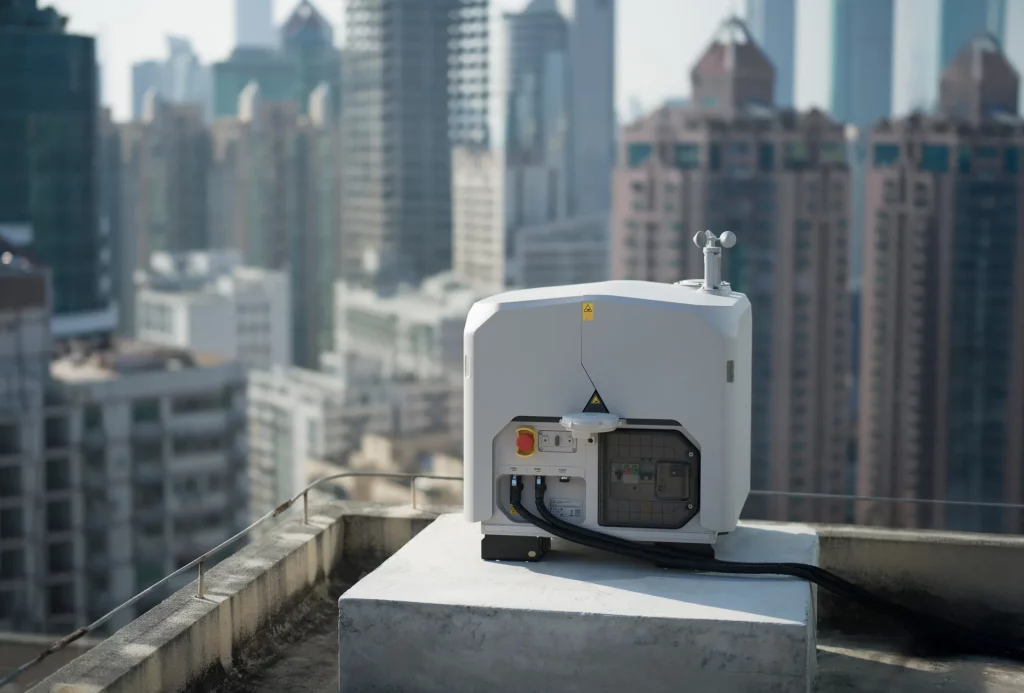

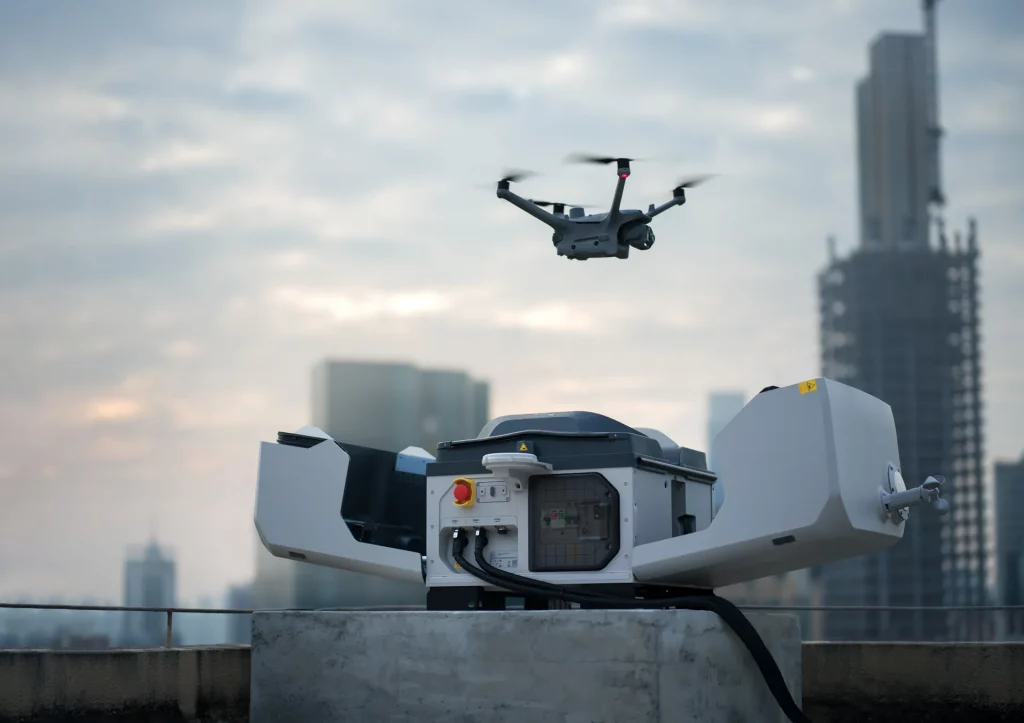

Vehicle-Mountable or Fixed State
Dual Dock Deployment
Key Features

Rugged, All‑Weather Design

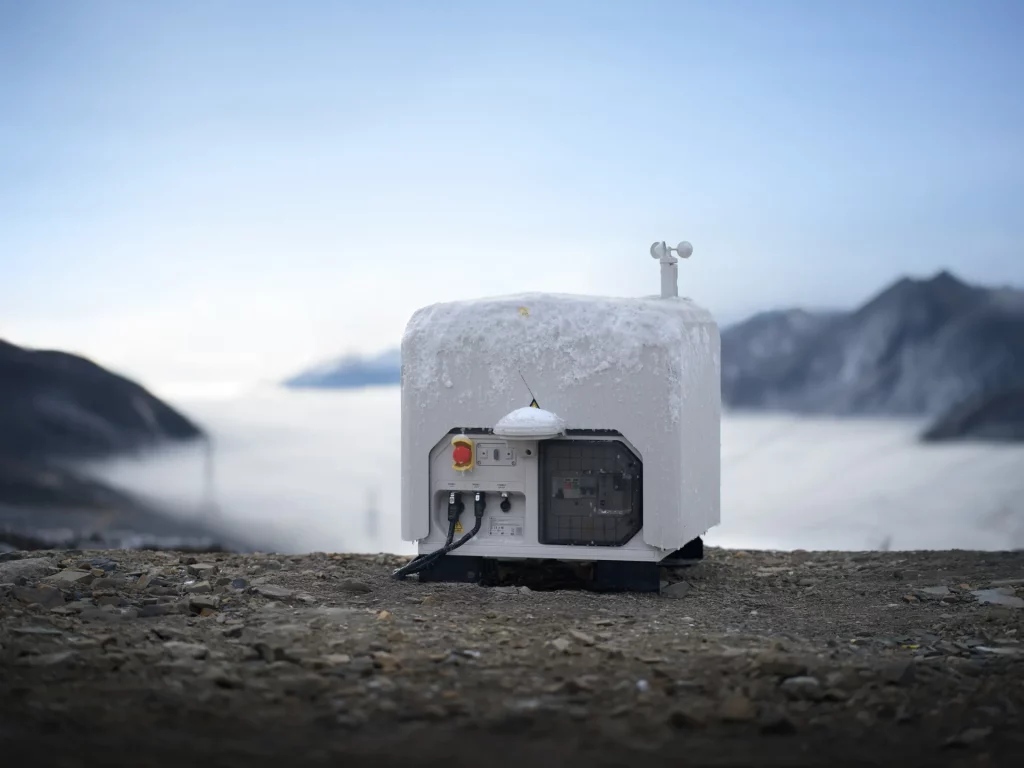

Operates from –30 °C to +50 °C with IP56-rated protection

Withstands winds up to 12 m/s (39 ft/s) during landing and takeoff

Dock cover functions reliably with light icing — suitable for challenging environments

Precision RTK & Connectivity

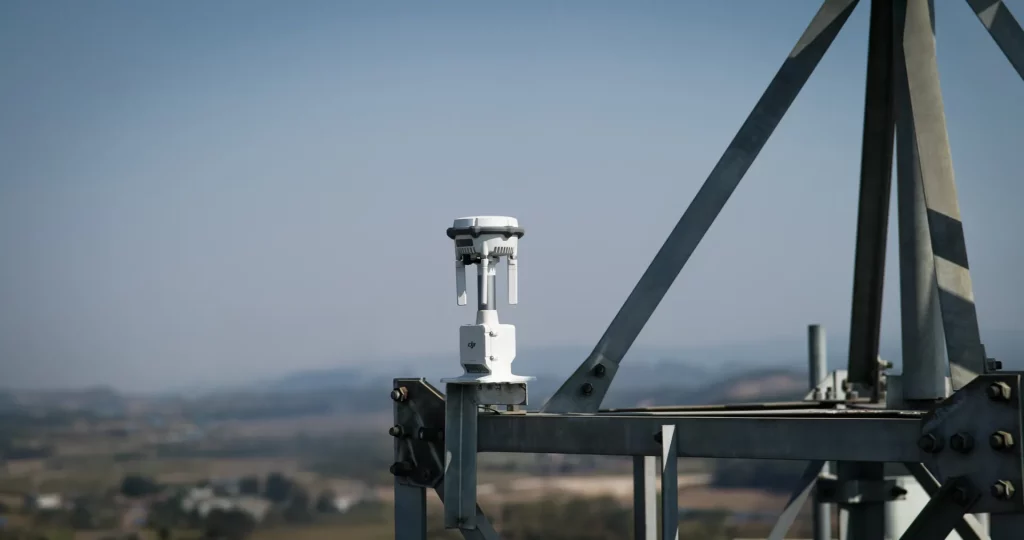

Integrated RTK base station supporting all major GNSS constellations with 1 cm + 1 ppm horizontal accuracy

Optional D‑RTK 3 relay deployment boosts connectivity in tough environments

Smart Deployment & Usability

Quick-launch system enables drone deployment in just 10 seconds with no warm-up delay

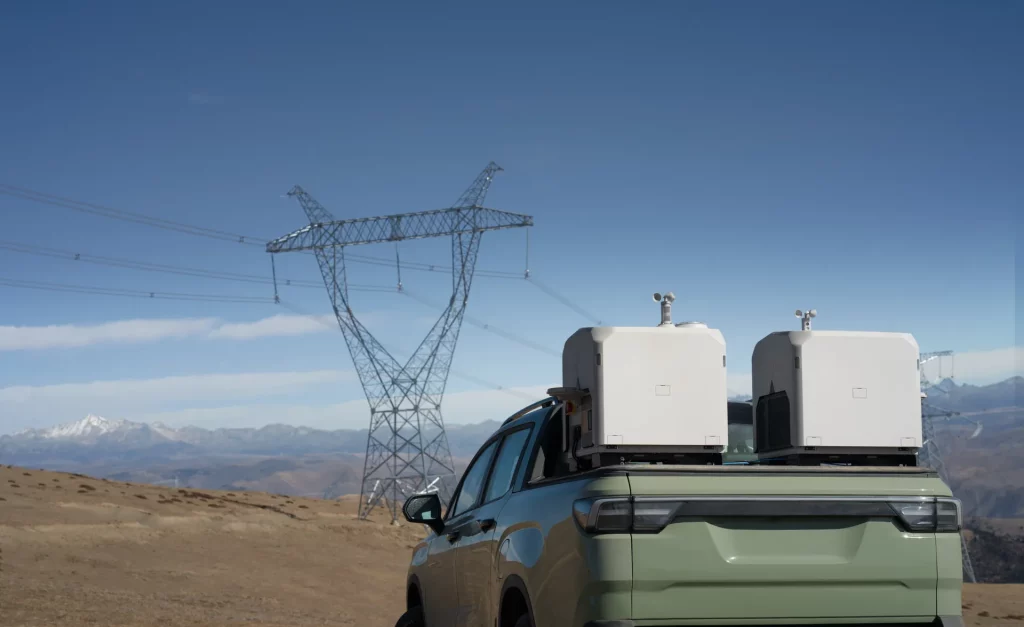

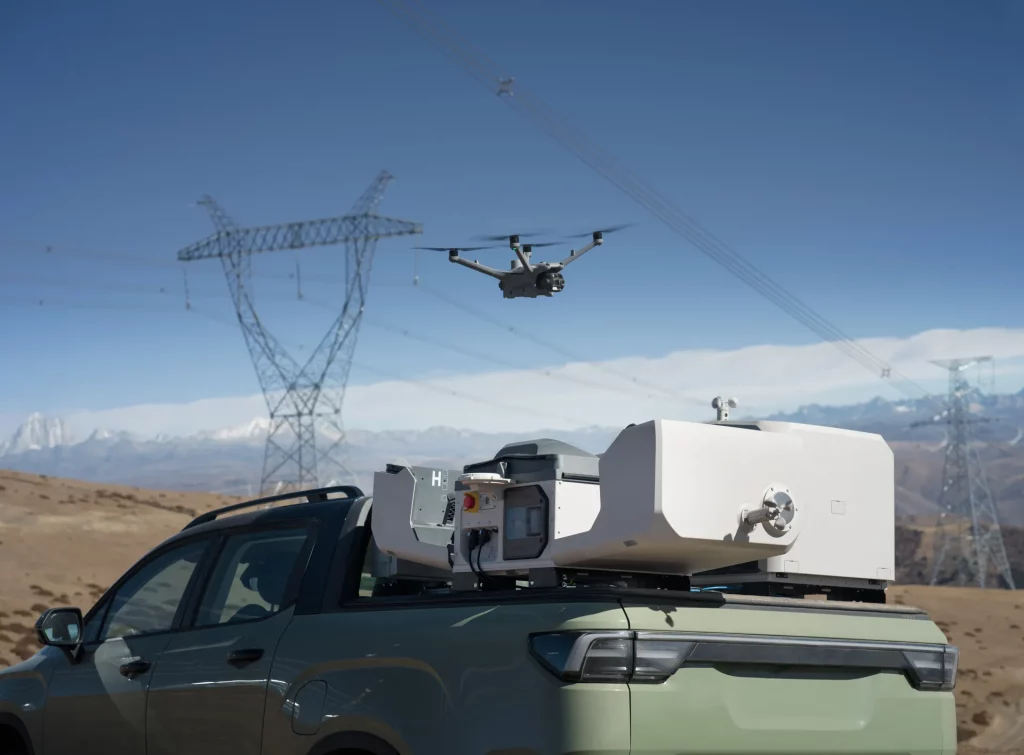

Dual docking and vehicle mounting support mission flexibility across sites

Supports AI recognition, Smart Track, and virtual boundary enforcement via FlightHub 2

Extended Drone Performance

Compatible with Matrice 4D/4TD (54-minute flight endurance)

Operates seamlessly with RC Plus 2 Enterprise for manual control or beacon-guided missions

Enterprise-Grade System Integration

Fully integrated with DJI FlightHub 2 for mission planning, live monitoring, data management, and intelligent alerts

BVLOS-ready with compliance support (EU C6, FTS/SORA documentation)

Backed by DJI Care Enterprise and remote/onsite dealer support

In-The-Box
  • DJI Dock 3 x 1
  • Grounding Wire x 1
  • Wind speed gauge x 1
  • Power plug x 1
  • Network plug x 2
  • Power cable terminals x 6
  • Screwdriver x 1
  • Dual-headed USB-C Cable x 1
  • DJI Matrice 4D Drone x 1
Specs Sheet
Dock Performance & Environmental
CategorySpecification
Dock Weight (without drone)55 kg
Cover Open Dimensions1760 × 745 × 485 mm
Cover Closed Dimensions640 × 745 × 770 mm
Power Input100–240 V AC, 50/60 Hz, max 800 W
Operating Temperature–30 °C to +50 °C
Ingress Protection (Dock)IP56
Max Landing Wind Speed12 m/s (~27 mph)
Supported Drone Count1
Max Operating Altitude4500 m
RTK Satellite SupportGPS, BeiDou, GLONASS, Galileo, QZSS
RTK Accuracy (Base Station)Horizontal: ±1 cm + 1 ppm (RMS)

Vertical: ±2 cm + 1 ppm (RMS)
Dock Weight (without drone)
55 kg
Cover Open Dimensions
1760 × 745 × 485 mm
Cover Closed Dimensions
640 × 745 × 770 mm
Power Input
100–240 V AC, 50/60 Hz, max 800 W
Operating Temperature
–30 °C to +50 °C
Ingress Protection (Dock)
IP56
Max Landing Wind Speed
12 m/s (~27 mph)
Supported Drone Count
1
Max Operating Altitude
4500 m
RTK Satellite Support
GPS, BeiDou, GLONASS, Galileo, QZSS
RTK Accuracy (Base Station)
Horizontal: ±1 cm + 1 ppm (RMS)

Vertical: ±2 cm + 1 ppm (RMS)
Dock Charging System
CategorySpecification
Output Voltage35 V DC
Charging Time (15%→95%)27 minutes (@25 °C, drone powered off)
Output Voltage
35 V DC
Charging Time (15%→95%)
27 minutes (@25 °C, drone powered off)
Video Transmission & Connectivity
CategorySpecification
Operating Frequencies2.4 GHz, 5.15–5.25 GHz, 5.725–5.850 GHz
Antenna Setup9 internal antennas (2T4R) with intelligent switching
Transmitter Power (EIRP)2.4 GHz: ≤33 dBm (FCC) / ≤20 dBm (CE)

5.2 GHz: ≤23 dBm (FCC/CE)

5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤30 dBm (SRRC)
Operating Frequencies
2.4 GHz, 5.15–5.25 GHz, 5.725–5.850 GHz
Antenna Setup
9 internal antennas (2T4R) with intelligent switching
Transmitter Power (EIRP)
2.4 GHz: ≤33 dBm (FCC) / ≤20 dBm (CE)

5.2 GHz: ≤23 dBm (FCC/CE)

5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤30 dBm (SRRC)
Climate Control & Backup Power
CategorySpecification
Air Conditioning Voltage48 V DC
AC TypeCompressor-based system
Backup Battery Capacity12 Ah, 12 V lead-acid
Runtime on Backup Battery> 4 hours (@25 °C, no charging/sensors)
Air Conditioning Voltage
48 V DC
AC Type
Compressor-based system
Backup Battery Capacity
12 Ah, 12 V lead-acid
Runtime on Backup Battery
> 4 hours (@25 °C, no charging/sensors)
Drone (Matrice 4D / 4TD) Core Specs
CategorySpecification
Drone Weight1850 g (with battery, propellers, microSD)
Max Takeoff Weight2090 g
Dimensions (L × W × H)377.7 × 416.2 × 212.5 mm
Diagonal Wheelbase498.5 mm
Flight SpeedsAscent: 6 m/s (Normal) / 10 m/s (Sport)

Descent: 6 m/s (Normal) / 8 m/s (Sport)

Horizontal: 15 m/s fwd, 12 m/s back, 10 m/s side (Normal); 21/19/15 m/s (Sport)
Wind Resistance12 m/s (operation and during takeoff/landing)
Max Altitude6500 m
Max Flight Time54 minutes (controlled test)
Max Hover Time47 minutes
Max Radius10 km
Max Distance43 km
Max Pitch Angle25° (Normal) / 30° (Sport)
Max Angular Speed (tilt)200°/s
GNSS SensorsGPS, BeiDou, Galileo, QZSS, GLONASS
Hover AccuracyVertical: ±0.1 m (vision/RTK), ±0.5 m (GNSS)

Horizontal: ±0.3 m (vision), ±0.1 m (RTK/vision), ±0.5 m (GNSS)
Operating Condition–20 °C to +50 °C
Ingress Protection (Drone)IP55
Motor Model2611
Propellers1364F foldable, low-noise, anti-ice
RTK & BeaconIntegrated onboard
Drone Weight
1850 g (with battery, propellers, microSD)
Max Takeoff Weight
2090 g
Dimensions (L × W × H)
377.7 × 416.2 × 212.5 mm
Diagonal Wheelbase
498.5 mm
Flight Speeds
Ascent: 6 m/s (Normal) / 10 m/s (Sport)

Descent: 6 m/s (Normal) / 8 m/s (Sport)

Horizontal: 15 m/s fwd, 12 m/s back, 10 m/s side (Normal); 21/19/15 m/s (Sport)
Wind Resistance
12 m/s (operation and during takeoff/landing)
Max Altitude
6500 m
Max Flight Time
54 minutes (controlled test)
Max Hover Time
47 minutes
Max Radius
10 km
Max Distance
43 km
Max Pitch Angle
25° (Normal) / 30° (Sport)
Max Angular Speed (tilt)
200°/s
GNSS Sensors
GPS, BeiDou, Galileo, QZSS, GLONASS
Hover Accuracy
Vertical: ±0.1 m (vision/RTK), ±0.5 m (GNSS)

Horizontal: ±0.3 m (vision), ±0.1 m (RTK/vision), ±0.5 m (GNSS)
Operating Condition
–20 °C to +50 °C
Ingress Protection (Drone)
IP55
Motor Model
2611
Propellers
1364F foldable, low-noise, anti-ice
RTK & Beacon
Integrated onboard
Cameras, Sensors & Imaging (Matrice 4D Camera Suite)
CategorySpecification
Wide-Angle4/3 CMOS, 20 MP, 24 mm equiv., f/2.8–f/11
Medium Tele1/1.3″ CMOS, 48 MP, 70 mm, f/2.8
Telephoto1/1.5″ CMOS, 48 MP, 168 mm, f/2.8
Lens SupportDefogging support on all cameras
ISO RangeUp to 409,600 (night mode)
Shutter SpeedUp to 1/8000 s (wide & tele; mechanical shutter)
Wide-Angle
4/3 CMOS, 20 MP, 24 mm equiv., f/2.8–f/11
Medium Tele
1/1.3″ CMOS, 48 MP, 70 mm, f/2.8
Telephoto
1/1.5″ CMOS, 48 MP, 168 mm, f/2.8
Lens Support
Defogging support on all cameras
ISO Range
Up to 409,600 (night mode)
Shutter Speed
Up to 1/8000 s (wide & tele; mechanical shutter)
Cameras, Sensors & Imaging (Matrice 4TD Additional Features)
CategorySpecification
Wide-Angle1/1.3″ CMOS, 48 MP, f/1.7
Medium TeleSame as Matrice 4D
TelephotoSame as Matrice 4D
Infrared Thermal640×512; 30 Hz; 45° DFOV; f/1.0; –40 °C to 500 °C
Lens SupportSame
ISO RangeUp to 819,200 tele
Shutter SpeedSame
Wide-Angle
1/1.3″ CMOS, 48 MP, f/1.7
Medium Tele
Same as Matrice 4D
Telephoto
Same as Matrice 4D
Infrared Thermal
640×512; 30 Hz; 45° DFOV; f/1.0; –40 °C to 500 °C
Lens Support
Same
ISO Range
Up to 819,200 tele
Shutter Speed
Same
Obstacle & Positioning Systems
CategorySpecification
Omnidirectional VisionForward/Back: 0.5–20 m; Lateral/Up: 0.5–20 m; Downward: 0.5–16 m
3D Infrared Bottom SensingSupports during descent/hover in complex environments
Omnidirectional Vision
Forward/Back: 0.5–20 m; Lateral/Up: 0.5–20 m; Downward: 0.5–16 m
3D Infrared Bottom Sensing
Supports during descent/hover in complex environments
Bundles

Dock 3 Advanced Survey Package

Details
1 x Dock 3
1 x DJI M4D RC Plus 2 Enterprise Combo
3 x M4D Battery
1 x Aonic Care+
1 x FlightHib 2 Enterprise 1 year
1 x AL1 Spotlight
1 x AS1 Speaker
1 x Aonic Combo Accessories
1 x Starlink Standard Lot V4
1 x Starlink Subscriptions 1 year (Unlimited)
1 x Armor Pad 4 Ultra Thermal
1 x Walkie Talkie Set
1 x RCoC-B
1 x EVLOS
1 x 2 Day Equipment Training
Price
RM 120,000

Dock 3 Advanced Surveillance Package

Details
1 x Dock 3
1 x DJI M4D DI RC Plus 2 Enterprise Combo
3 x M4D Battery
1 x Aonic Care+
1 x FlightHib 2 Enterprise 1 year
1 x AL1 Spotlight
1 x AS1 Speaker
1 x AeroveneSkyScan
1 x Aonic Combo Accessories
1 x Starlink Standard Lot V4
1 x Starlink Subscriptions 1 year (Unlimited)
1 x Armor Pad 4 Ultra Thermal
1 x Walkie Talkie Set
1 x RCoC-B
1 x EVLOS
1 x 2 Day Equipment Training
Price
RM 154,000
Aonic Care

Aonic Care+ (Dock)

  • Premium warranty with repair coverage
  • Unlimited repairs up to total coverage value
  • 2 × Maintenance sessions
  • 1 Year Validity or 3 Year Validity
  • Inclusive of labor fees
Aonic Flex

Dock 3 Advanced Survey Package

Tenure
12 Months
Down-payment
RM 24,000
Monthly Repayment
RM 8,000

Dock 3 Advanced Surveillance Package

Tenure
12 Months
Down-payment
RM 30,800
Monthly Repayment
RM 10,267
