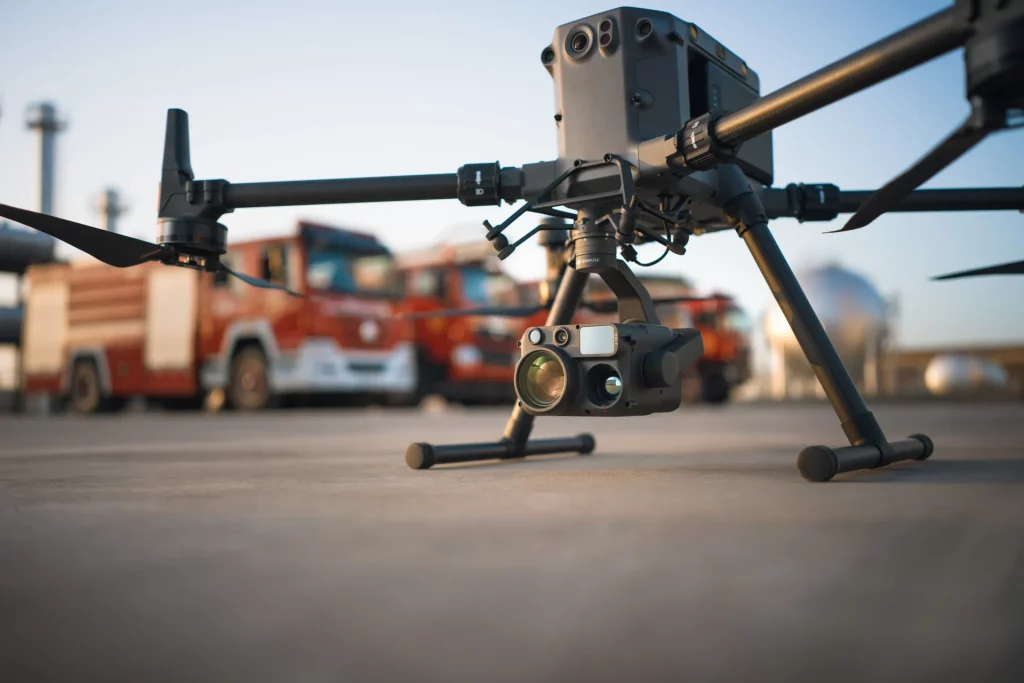

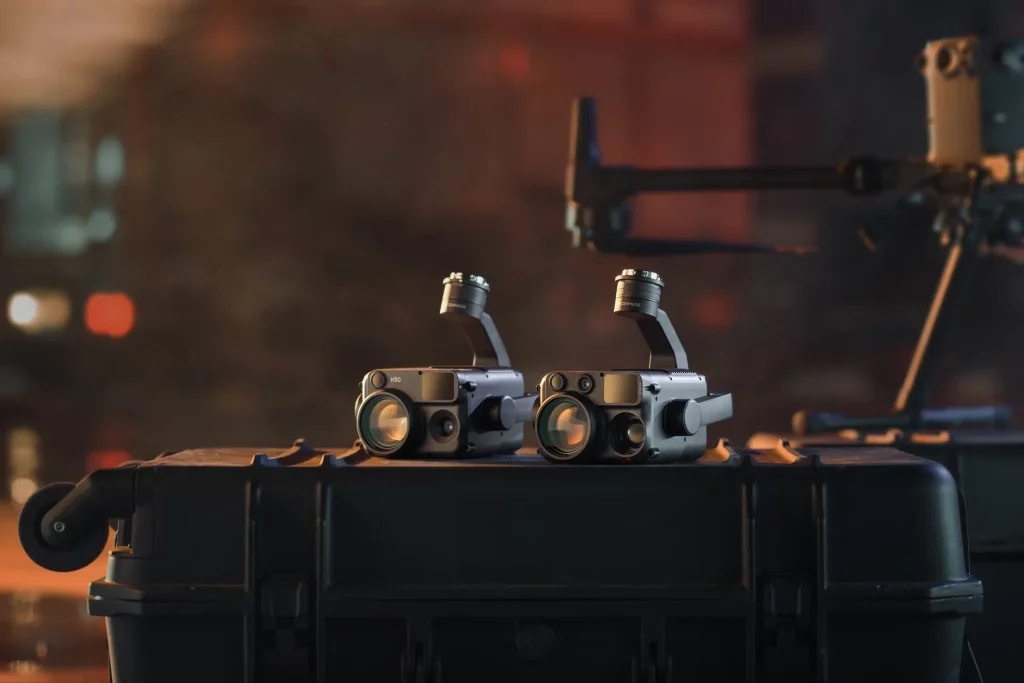

DJI Zenmuse H30 Series

Flagship All‑Weather Multi‑Sensor Payload

The Zenmuse H30 Series represents DJI’s most advanced payload system to date, engineered for professionals who require reliable performance in unpredictable environments. With its multi-sensor integration and rugged design, it delivers the clarity, precision, and adaptability needed for mission‑critical aerial operations.

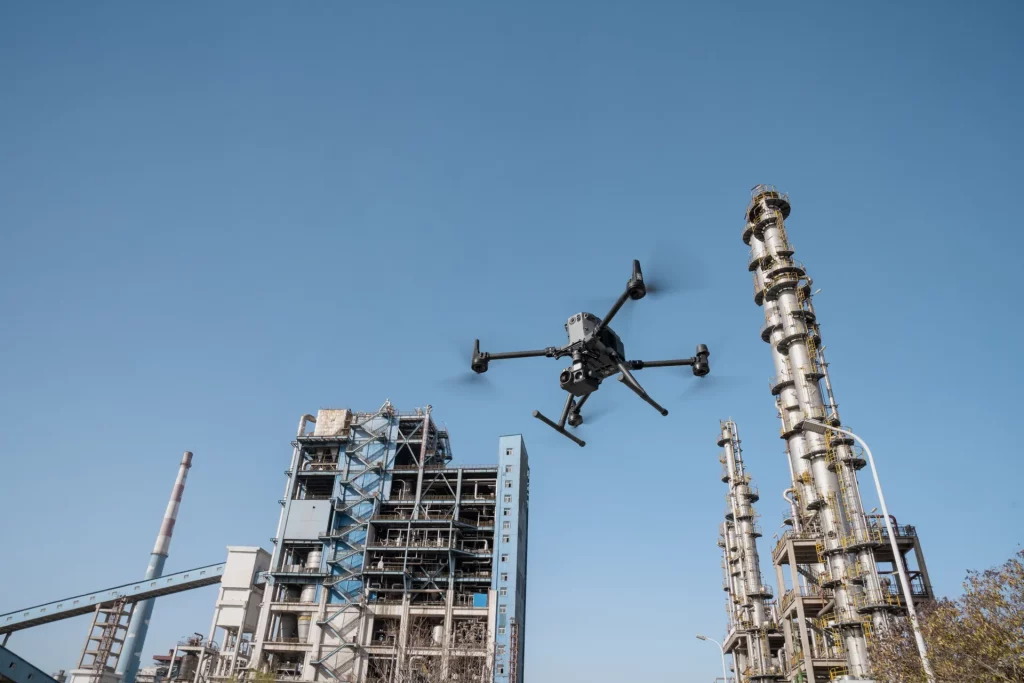

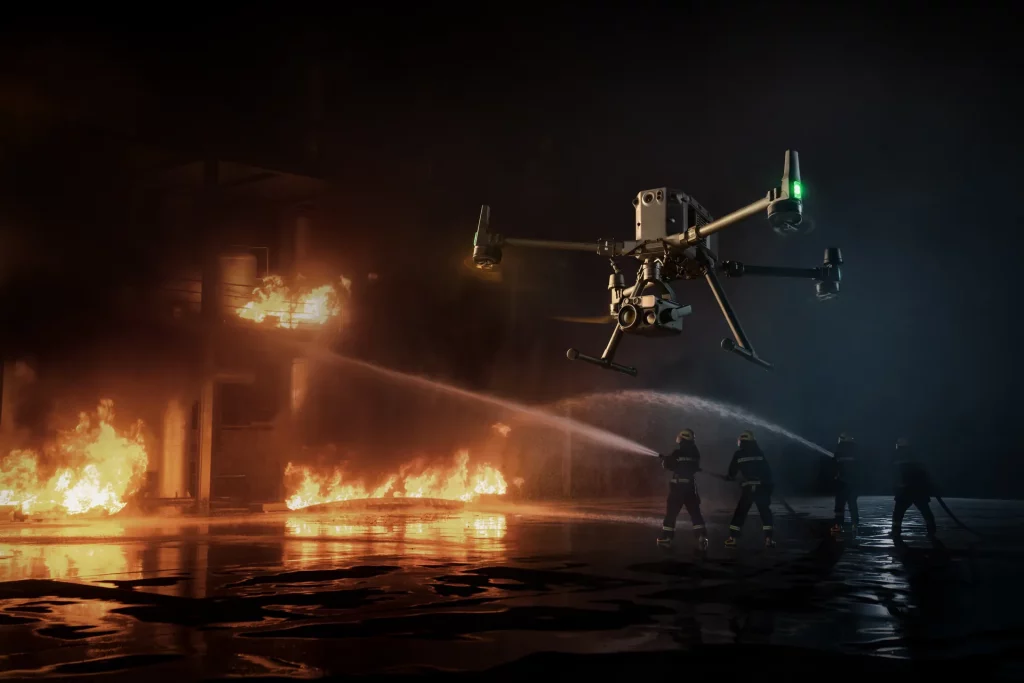

The DJI Zenmuse H30 Series is a high-performance multi-sensor payload built for critical aerial operations in public safety, energy inspection, and environmental monitoring. Compatible with DJI Matrice 400, Matrice 300 RTK and Matrice 350 RTK, it combines advanced visual, thermal, and laser modules to deliver unmatched clarity and precision across all conditions.

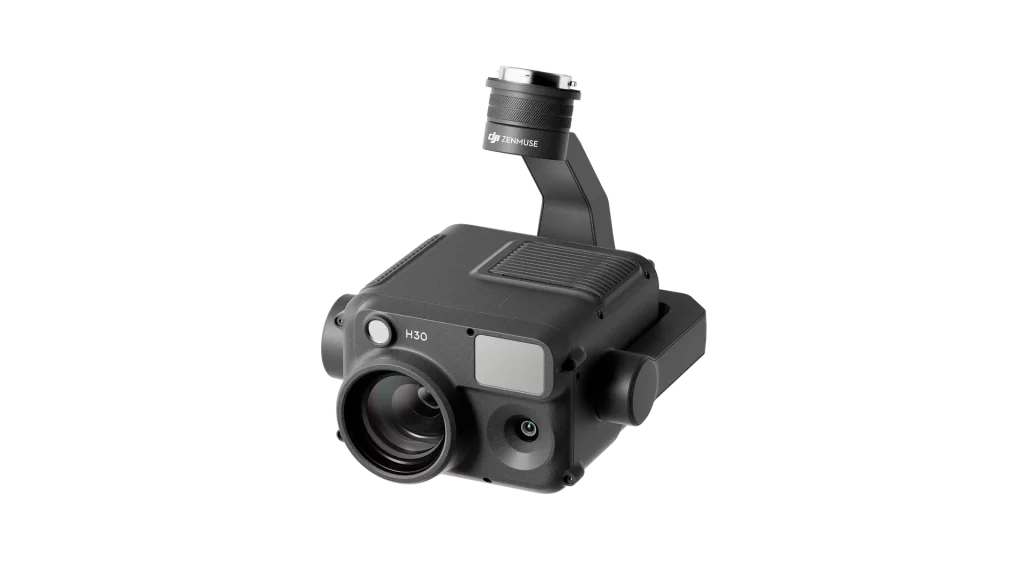

The Zenmuse H30 is a versatile multi-sensor payload designed for operators who require exceptional visual performance in both daylight and low-light environments. Equipped with a wide-angle camera, powerful zoom, laser rangefinder, and NIR auxiliary light, it delivers precise imaging and measurement capabilities for inspection, surveillance, and search operations where thermal data is not essential.

The Zenmuse H30T builds on the H30’s capabilities by adding a high-resolution thermal camera, making it the ideal choice for missions that demand temperature-based detection and analysis. From firefighting and search and rescue to industrial inspection, the H30T provides both visual and thermal intelligence in a single, rugged payload.

40MP Zoom Camera 34× optical, 400× digital
Enhanced Night Mode Clear imaging in low light
Electronic Dehazing Sharper visuals in haze or fog
Thermal Imaging (H30T) 1280×1024 resolution, up to 1600°C
Temperature Alerts Real-time warnings and isotherm display
Laser Rangefinder Accurate up to 3000 m
NIR Auxiliary Light 850 nm illumination for total darkness
AI Recognition & Tracking Smart subject detection
Synchronized Zoom Multi-sensor zoom alignment
IP54 rating -20°C to 50°C
Multiplatform compatibility DJI Matrice 400/ 300 RTK / 350 RTK
Key Features

Exceptional Visual Clarity in Any Condition

40MP zoom camera with 34× optical and 400× digital zoom

Electronic dehazing and image stabilization

Enhanced Night Scene mode for low-light clarity

Thermal Imaging (H30T only)

1280×1024 thermal resolution

Temperature range: -20°C to 1600°C

±2°C accuracy with High/Low Gain modes

Real-time alerts and isotherm overlays

Precision Distance Measurement

Laser rangefinder with up to 3000 m range

Live overlay of measurement data

Ideal for rescue ops and infrastructure inspection

NIR Auxiliary Lighting

850 nm near-infrared light

Enhances visibility in complete darkness

Supports target detection and tracking

AI & Smart Features

Smart capture with pre-recording buffer

AI-based recognition and tracking

Synchronized zoom across sensors

Cloud upload and remote playback support

Specs Sheet
General
CategorySpecification
Product NameZenmuse H30 Series
Dimensions170 × 145 × 165 mm (L × W × H)
Weight920 ± 5 g
PowerH30: 26 W / H30T: 28 W
Ingress Protection RatingIP54*

*Under controlled laboratory conditions, the payload achieves IP54 protection by IEC60529 standards. Rating may decrease with wear and tear.
Supported AircraftMatrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
Product Name
Zenmuse H30 Series
Dimensions
170 × 145 × 165 mm (L × W × H)
Weight
920 ± 5 g
Power
H30: 26 W / H30T: 28 W
Ingress Protection Rating
IP54*

*Under controlled laboratory conditions, the payload achieves IP54 protection by IEC60529 standards. Rating may decrease with wear and tear.
Supported Aircraft
Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
Environment
CategorySpecification
Operating Temperature-20° to 50° C (-4° to 122° F)
Storage Temperature-20° to 60° C (-4° to 140° F)
Operating Temperature
-20° to 50° C (-4° to 122° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Gimbal
CategorySpecification
Stabilization System3-axis (tilt, roll, pan)
Angular Vibration RangeHover: ±0.002° / Flight: ±0.004°
MountingDetachable DJI SKYPORT
Mechanical RangeTilt: -132.5° to +73° / Roll: ±60° / Pan: ±328° (structural limit)
Controllable RangeTilt: -120° to +60° / Pan: ±320°
Operation ModeFollow / Free / Re-center
Stabilization System
3-axis (tilt, roll, pan)
Angular Vibration Range
Hover: ±0.002° / Flight: ±0.004°
Mounting
Detachable DJI SKYPORT
Mechanical Range
Tilt: -132.5° to +73° / Roll: ±60° / Pan: ±328° (structural limit)
Controllable Range
Tilt: -120° to +60° / Pan: ±320°
Operation Mode
Follow / Free / Re-center
Zoom Camera
CategorySpecification
Sensor1/1.8-inch CMOS, 40 MP effective pixels
Lens7.1–172 mm (equiv. 33.4–809.3 mm), f/1.6–f/5.2, DFOV 66.7°–2.9°
Focus ModeMF, AFC, AFS
Exposure ModeManual, Auto
Exposure Compensation±3.0 (1/3 increments)
Metering ModeSpot, Average
AE LockSupported
Shutter Speed1/8000–2 s
ISO RangeSingle: 100–25600 / Night: 100–819200
Video Resolution3840×2160@30fps,
1920×1080@30fps;
Night: 1080p@25/15/5fps
Video FormatMP4
SubtitlesSupported
Codec / BitrateH.264, H.265 / CBR, VBR
Max Photo Size7328×5496, 3664×2748
Photo FormatJPG
Sensor
1/1.8-inch CMOS, 40 MP effective pixels
Lens
7.1–172 mm (equiv. 33.4–809.3 mm), f/1.6–f/5.2, DFOV 66.7°–2.9°
Focus Mode
MF, AFC, AFS
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot, Average
AE Lock
Supported
Shutter Speed
1/8000–2 s
ISO Range
Single: 100–25600 / Night: 100–819200
Video Resolution
3840×2160@30fps,
1920×1080@30fps;
Night: 1080p@25/15/5fps
Video Format
MP4
Subtitles
Supported
Codec / Bitrate
H.264, H.265 / CBR, VBR
Max Photo Size
7328×5496, 3664×2748
Photo Format
JPG
Wide-Angle Camera
CategorySpecification
Sensor1/1.3-inch CMOS, 48 MP effective pixels
Lens6.72 mm (equiv. 24 mm), f/1.7, DFOV 82.1°
Focus ModeMF, AFC, AFS
Exposure ModeManual, Auto
Exposure Compensation±3.0 (1/3 increments)
Metering ModeSpot, Average
AE LockSupported
Shutter Speed1/8000–2 s
ISO RangeSingle: 100–25600 / Night: 100–409600
Video Resolution3840×2160@30fps,
1920×1080@30fps;
Night: 1080p@25/15/5fps
Video FormatMP4
SubtitlesSupported
Codec / BitrateH.264, H.265 / CBR, VBR
Max Photo Size8064×6048, 4032×3024
Photo FormatJPG
Sensor
1/1.3-inch CMOS, 48 MP effective pixels
Lens
6.72 mm (equiv. 24 mm), f/1.7, DFOV 82.1°
Focus Mode
MF, AFC, AFS
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot, Average
AE Lock
Supported
Shutter Speed
1/8000–2 s
ISO Range
Single: 100–25600 / Night: 100–409600
Video Resolution
3840×2160@30fps,
1920×1080@30fps;
Night: 1080p@25/15/5fps
Video Format
MP4
Subtitles
Supported
Codec / Bitrate
H.264, H.265 / CBR, VBR
Max Photo Size
8064×6048, 4032×3024
Photo Format
JPG
Infrared Thermal Camera (H30T)
CategorySpecification
Thermal ImagerUncooled VOx Microbolometer
Lens24 mm (equiv. 52 mm), f/0.95, DFOV 45.2°
Digital Zoom32×
Video Resolution1280×1024@30fps
Video FormatMP4
SubtitlesSupported
Codec / BitrateH.264, H.265 / CBR, VBR
Photo Resolution1280×1024
Photo FormatR-JPEG
Pixel Pitch12 μm
Spectral Band8–14 μm
NETD≤ 50 mK @ f/1.0
Temp MeasurementSpot, Area, Center Point
Temp RangeHigh Gain: -20°–150°C / -20°–450°C (with filter) Low Gain: 0°–600°C / 0°–1600°C (with filter)
Temp AlertSupported
Sun Burn ProtectionSupported
FFCAuto, Manual
PaletteWhite Hot, Black Hot, Tint, Iron Red, Rainbow 1/2, Medical, Arctic, Fulgurite, Hot Iron
Thermal Imager
Uncooled VOx Microbolometer
Lens
24 mm (equiv. 52 mm), f/0.95, DFOV 45.2°
Digital Zoom
32×
Video Resolution
1280×1024@30fps
Video Format
MP4
Subtitles
Supported
Codec / Bitrate
H.264, H.265 / CBR, VBR
Photo Resolution
1280×1024
Photo Format
R-JPEG
Pixel Pitch
12 μm
Spectral Band
8–14 μm
NETD
≤ 50 mK @ f/1.0
Temp Measurement
Spot, Area, Center Point
Temp Range
High Gain: -20°–150°C / -20°–450°C (with filter) Low Gain: 0°–600°C / 0°–1600°C (with filter)
Temp Alert
Supported
Sun Burn Protection
Supported
FFC
Auto, Manual
Palette
White Hot, Black Hot, Tint, Iron Red, Rainbow 1/2, Medical, Arctic, Fulgurite, Hot Iron
Laser Range Finder
CategorySpecification
Wavelength905 nm
Measurement Range3–3000 m (varies by surface/conditions)
Accuracy≤500 m: ±(0.2 m + distance×0.15%) >500 m: ±1.0 m
Spot Size@100 m: ~50×450 mm @1000 m: ~450×4500 mm
Safety LevelClass 1
AEL260 nJ
Reference Aperture18 mm
Max Pulse Power52 W (within 5 ns)
Wavelength
905 nm
Measurement Range
3–3000 m (varies by surface/conditions)
Accuracy
≤500 m: ±(0.2 m + distance×0.15%) >500 m: ±1.0 m
Spot Size
@100 m: ~50×450 mm @1000 m: ~450×4500 mm
Safety Level
Class 1
AEL
260 nJ
Reference Aperture
18 mm
Max Pulse Power
52 W (within 5 ns)
NIR Auxiliary Light
CategorySpecification
Wavelength850 nm
FOV4.6 ± 0.6° (round)
Safety LevelClass 1
Illumination Range@100 m: ~8 m diameter circle
Wavelength
850 nm
FOV
4.6 ± 0.6° (round)
Safety Level
Class 1
Illumination Range
@100 m: ~8 m diameter circle
Special Features
CategorySpecification
Hybrid Optical Zoom34×
Max Zoom400×
Link ZoomSupported
Click to AimSupported
High-Res Grid PhotoSupported
Night SceneSupported
TimestampSupported
Smart CaptureSupported
Video Pre-RecordingSupported
UHR Infrared ImageSupported
Hybrid Optical Zoom
34×
Max Zoom
400×
Link Zoom
Supported
Click to Aim
Supported
High-Res Grid Photo
Supported
Night Scene
Supported
Timestamp
Supported
Smart Capture
Supported
Video Pre-Recording
Supported
UHR Infrared Image
Supported
Data Storage
CategorySpecification
Supported microSDU3/Class10/V30 or above
File SystemexFAT
Recommended CardsLexar 1066x V30 A2 (64–512 GB)
Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
Supported microSD
U3/Class10/V30 or above
File System
exFAT
Recommended Cards
Lexar 1066x V30 A2 (64–512 GB)
Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
Post-Processing Software
CategorySpecification
MappingDJI Terra, DJI FlightHub 2
Infrared AnalysisDJI Thermal Analysis Tool 3
Mapping
DJI Terra, DJI FlightHub 2
Infrared Analysis
DJI Thermal Analysis Tool 3
Bundles

Matrice 400 Basic Surveillance Package

Details
1 x Matrice 400
1 x BS100
1 X TB100
1 X M400 Care+
1 x Zenmuse H30T
1 x FlightHub 2 Enterprise Version 1 year
1 x AeroveneSkyScan
1 x Aonic Combo Accessories
1 x RC Plus 2 Strap & Waist support
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
1 x Illegear Processing Laptop
Price
RM 125,000

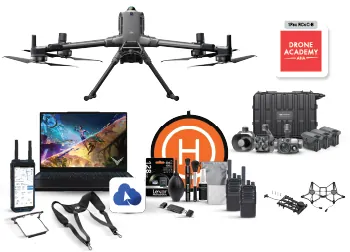

Matrice 400 Advance Surveillance Package

Details
1 x Matrice 400
1 x BS100
1 X TB100
1 X M400 Care+
1 x Zenmuse H30T
1 x Zenmuse S1
1 x Zenmuse V1
1 x FlightHub 2 Enterprise Version 1 year
1 x AeroveneSkyScan
1 x Aonic Combo Accessories
1 x RC Plus 2 Strap & Waist support
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
1 x Illegear Processing Laptop
Price
RM 180,000
Aonic Flex

Matrice 400 Basic Surveillance Package

Tenure
12 Months
Down-payment
RM 25,000
Monthly Repayment
RM 8,333

Matrice 400 Advance Surveillance Package

Tenure
12 Months
Down-payment
RM 36,000
Monthly Repayment
RM 12,000
