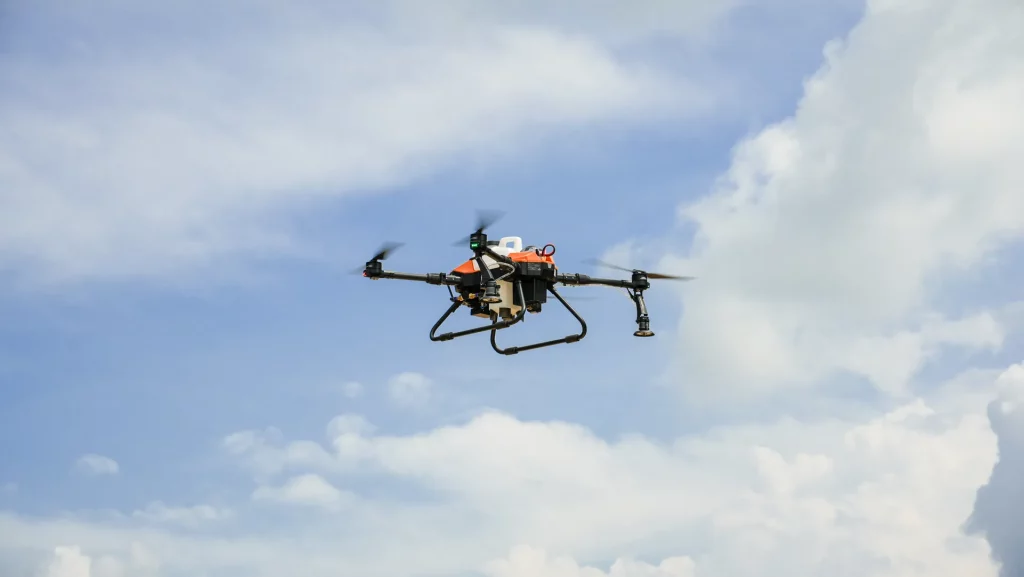

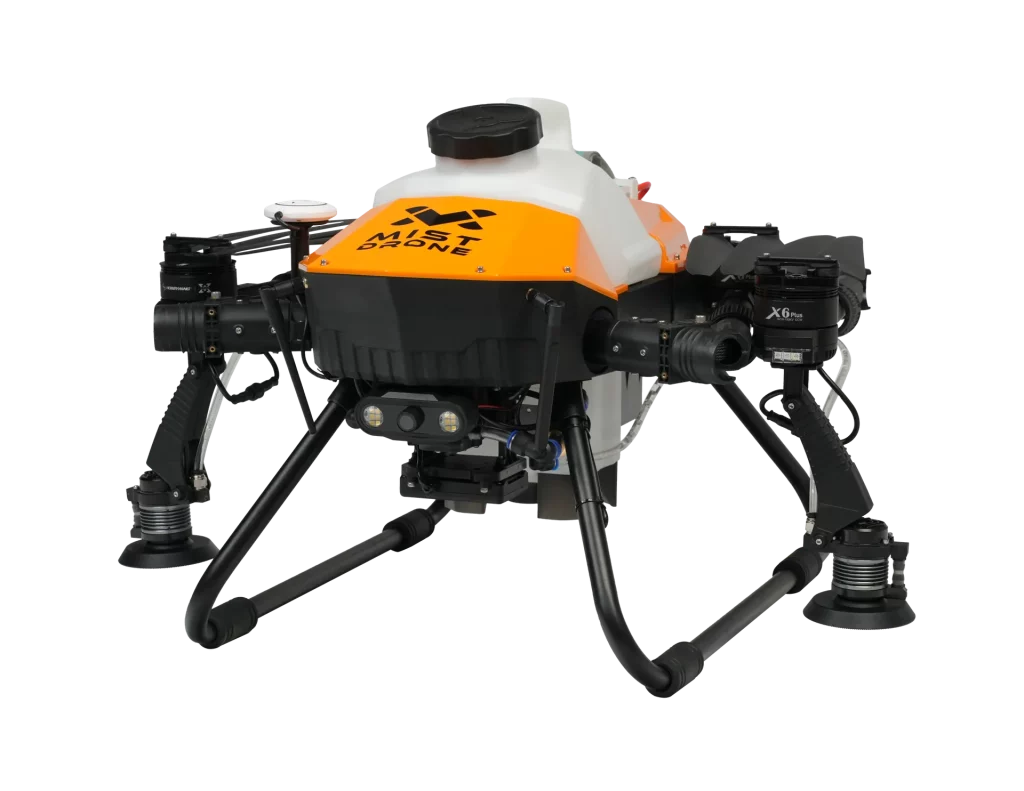

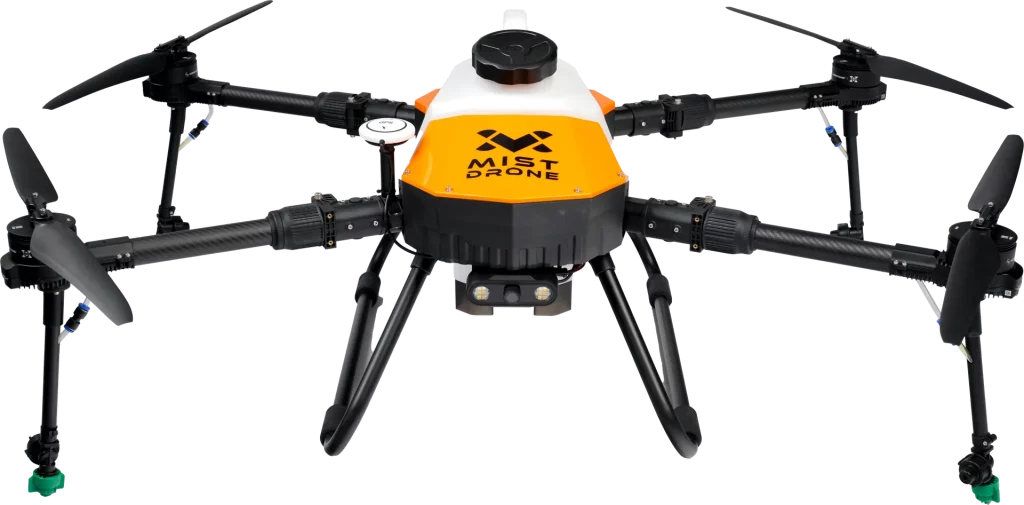

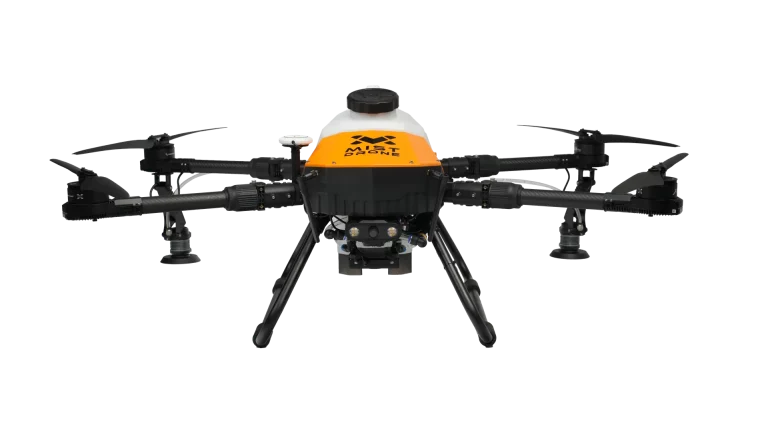

Mist Nex 6

Compact Spraying Power For Precision Agriculture

The Mist Nex 6 is a lightweight, high-performance agricultural drone built for precision spraying in small to mid-sized farms. With a 6-litre capacity, easy handling, and rapid deployment, it’s designed for farmers, cooperatives, and contractors looking to boost productivity while reducing manual labour.

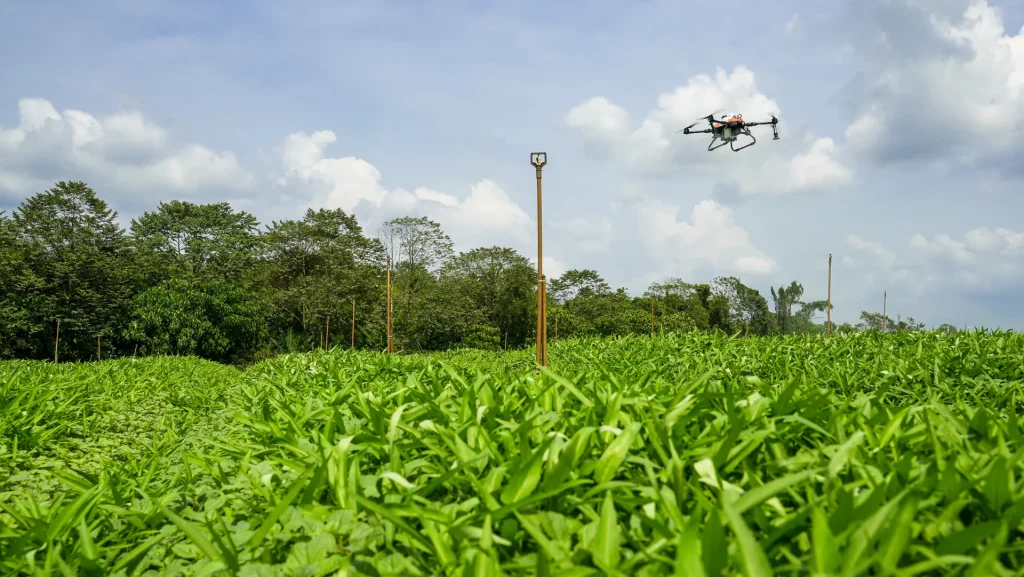

Engineered for efficiency, the Mist Nex 6 features a durable quadcopter frame, intelligent terrain-following capability, and a high-flow brushless pump system for uniform coverage.

Backed by 3S Centres across Southeast Asia and a full one-year warranty, the Mist Nex 6 is your dependable partner for modern field operations.

Compact Spraying Power

6L Spray Tank
Brushless Pump
Terrain Following
5L/min Flow Rate
Foldable Frame
FPV Camera with Spotlight
12-Minute Empty Load Flight
Local Support & Warranty
Key Features

Precision Spraying in a Compact Package

6L Tank Capacity

Ideal for smaller plots and segmented fields. Efficient coverage without excess weight.

High-Performance Spraying System

Equipped with a brushless pump and single-head nozzle delivering up to 5L/min flow rate for consistent droplet size and optimal crop penetration.

FPV Camera with Spotlight

Enhances visibility and spraying accuracy during early morning or dusk operations.

Terrain Follow Function

Automatically adjusts flight altitude based on terrain for consistent application height.

Efficient Flight Design

Durable & Foldable Frame

Compact folded dimensions (605 × 640 × 475 mm) enable easy transport and quick deployment in the field.

Optimised Power System

Powered by a 12S LiPo battery (XT90 connector), the drone supports up to 12 minutes of flight time on empty load, with a flying speed limit of 10 m/s and wind resistance up to 4 m/s.

Smart Safety

Built-in terrain follow helps avoid over- or under-spraying. (Note: obstacle avoidance not available on Mist Nex 6.)

Reliable After-Sales Support

1-Year Warranty

Reduce downtime with full coverage and preventive service support.

Operator Training

Learn both theory and hands-on flying techniques to ensure safe, effective usage.

3S Centres Across Southeast Asia

Access fast servicing, expert support, and the largest spare parts inventory for agricultural drones in Malaysia.

In-The-Box
  • Mist Nex 6
  • H12 Remote Controller
  • 12s 22000mAh Smart Battery
Specs Sheet
Flight System
Category Specification
Frame Configuration Quad Copter
Number of Motors 4
Motor Model Hobbywing X6 Plus
Motor KV 150 KV
Motor Size 62 × 18 mm
Propeller Model Hobbywing 2480
Propeller Size 24 Inch
Flight Speed Limit 10 m/s (36 km/h)
Wind Resistance 4 m/s (14 km/h)
Maximum Flying Weight 17.4 kg
Flight Endurance 5 minutes (loaded)
Empty Load Flight Time 12 minutes
Expanded Dimensions (mm) 1580 × 1270 × 475
Folded Dimensions (mm) 605 × 640 × 475
Frame Configuration
Quad Copter
Number of Motors
4
Motor Model
Hobbywing X6 Plus
Motor KV
150 KV
Motor Size
62 × 18 mm
Propeller Model
Hobbywing 2480
Propeller Size
24 Inch
Flight Speed Limit
10 m/s (36 km/h)
Wind Resistance
4 m/s (14 km/h)
Maximum Flying Weight
17.4 kg
Flight Endurance
5 minutes (loaded)
Empty Load Flight Time
12 minutes
Expanded Dimensions (mm)
1580 × 1270 × 475
Folded Dimensions (mm)
605 × 640 × 475
Spraying System
Category Specification
Tank Capacity 6 Litres
Swappable Tank No
Pump Type Brushless
Spray Nozzle Centrifugal
Max Flow Rate 5L/min
Terrain Follow Yes
Obstacle Avoidance N/A
FPV Camera Fixed SD Camera with Spotlight
Tank Capacity
6 Litres
Swappable Tank
No
Pump Type
Brushless
Spray Nozzle
Centrifugal
Max Flow Rate
5L/min
Terrain Follow
Yes
Obstacle Avoidance
N/A
FPV Camera
Fixed SD Camera with Spotlight
Power System
Category Specification
Recommended Battery 12S LiPo Battery (XT90 Standard ONLY)
Recommended Battery
12S LiPo Battery (XT90 Standard ONLY)
Remote Controller
Category Specification
Model Skydroid H12
Max Radio Range 5 km (line of sight)
Remote Display 5.5” FHD
App Integration Yes, via built-in 5.5” FHD display
Model
Skydroid H12
Max Radio Range
5 km (line of sight)
Remote Display
5.5” FHD
App Integration
Yes, via built-in 5.5” FHD display

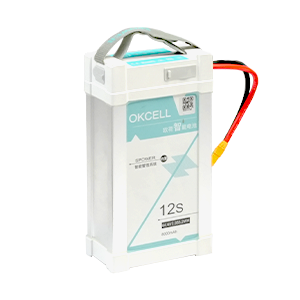

Battery – OKCell 12S
Category Specification
Type OKCell 12S
Nominal Capacity 8000mAh
Typical Voltage 44.4 V
Size (L×W×H) 126 × 67 × 230 mm
Weight (±100g) 2200 g
Power 355.2 Wh
Max. Continuous Discharge Current 160 A
Max. Fast Charging Current 20 A
Max. Charging Voltage 50.4 V
Recommended Charging Temp +10°C to +45°C
Recommended Discharging Temp +10°C to +60°C
1st Level Fail-Safe (Landing Voltage) 43.4 V
2nd Level Fail-Safe (Forced Landing) 43.2 V
Type
OKCell 12S
Nominal Capacity
8000mAh
Typical Voltage
44.4 V
Size (L×W×H)
126 × 67 × 230 mm
Weight (±100g)
2200 g
Power
355.2 Wh
Max. Continuous Discharge Current
160 A
Max. Fast Charging Current
20 A
Max. Charging Voltage
50.4 V
Recommended Charging Temp
+10°C to +45°C
Recommended Discharging Temp
+10°C to +60°C
1st Level Fail-Safe (Landing Voltage)
43.4 V
2nd Level Fail-Safe (Forced Landing)
43.2 V
Bundles

Mist Nex 6 Ready-to-Fly Package

Mist Nex 6

Skydroid H12 RC

OKCell 12s Battery

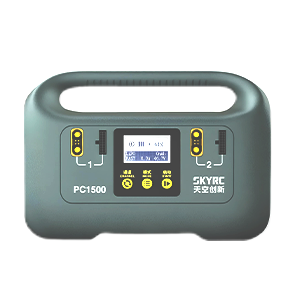

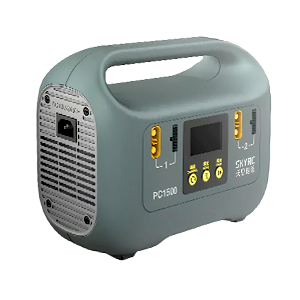

SkyRC PC1500

Details
1 x Mist Nex 6
1 x OKCell 12s Battery
1 x SkyRC PC1500
1 x Skydroid H12 RC
1 set x Hobbywing 2480 Propellers
Price
RM13,999 (WM)
RM14,999 (EM)

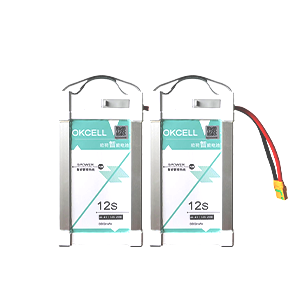

Dual Battery Bundle

OKCell 12s Battery

Details
2 x OKCell 12s Battery
Price
RM1,699 (WM)
RM1,799 (EM)

Power Bundle

OKCell 12s Battery

SkyRC PC1500

Details
2 x OKCell 12s Battery
1 x SkyRC PC1500
Price
RM4,899 (WM)
RM4,999 (EM)

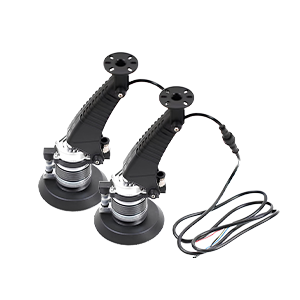

Dual Centrifugal Nozzle

Centrifugal Nozzle for Mist Nex 6

Details
2 x Centrifugal Nozzle for Mist Nex 6
Price
RM579 (WM)
RM589 (EM)

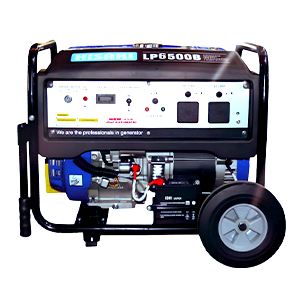

Genset

Genset

Details
1 x Genset
Price
RM3,000 (WM)
RM4,000 (EM)
Aonic Flex

Mist Nex 6 Ready-to-Fly Package (WM)

Tenure
12 months
Down-payment
RM2799.80
Monthly Repayment
RM979.93
Remarks
· 5.0% Admin Fee
· RM500 Cashback

Mist Nex 6 Ready-to-Fly Package (EM)

Tenure
12 months
Down-payment
RM2,999.80
Monthly Repayment
RM1,049.93
Remarks
· 5.0% Admin Fee
· RM500 Cashback

Mist Nex 6 Ready-to-Fly Package (WM)

Tenure
18 months
Down-payment
RM4199.70
Monthly Repayment
RM585.24
Remarks
· 7.5% Admin Fee
· RM400 Cashback

Mist Nex 6 Ready-to-Fly Package (EM)

Tenure
18 months
Down-payment
RM4,499.70
Monthly Repayment
RM627.04
Remarks
· 7.5% Admin Fee
· RM400 Cashback

Mist Nex 6 Ready-to-Fly Package (WM)

Tenure
24 months
Down-payment
RM5599.60
Monthly Repayment
RM384.97
Remarks
· 10% Admin Fee
· RM400 Cashback

Mist Nex 6 Ready-to-Fly Package (EM)

Tenure
24 months
Down-payment
RM 5,999.60
Monthly Repayment
RM412.47
Remarks
· 10% Admin Fee
· RM400 Cashback
