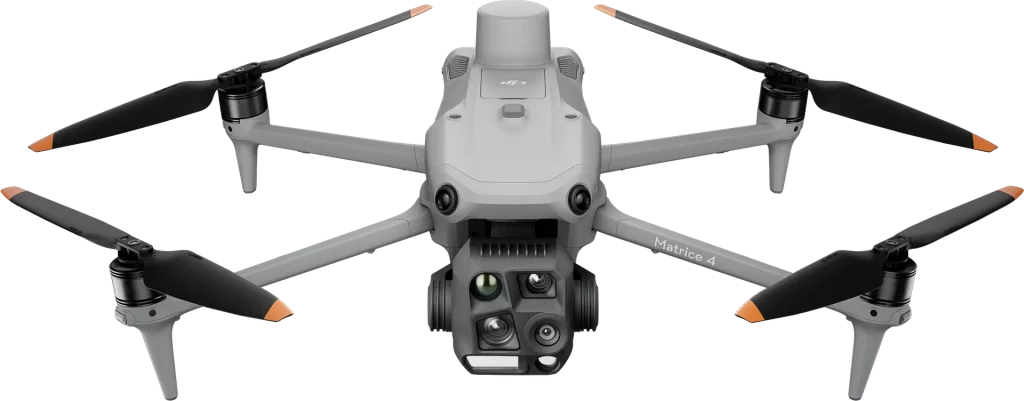

DJI Matrice 4 Enterprise
Compact Power for Complex Enterprise Missions
The DJI Matrice 4 Series redefines what’s possible in a compact enterprise drone—delivering the strength and functionality of a full-sized platform in a streamlined, IP55-rated body. Designed for professionals who need performance without compromise, it’s built to excel in fast-paced, high-stakes environments.
Matrice 4E
Purpose-built for aerial surveying and precision mapping. It comes equipped with a dedicated mapping sensor, dual telephoto lenses, a laser rangefinder, and smart automation features to simplify complex workflows.
Key Features

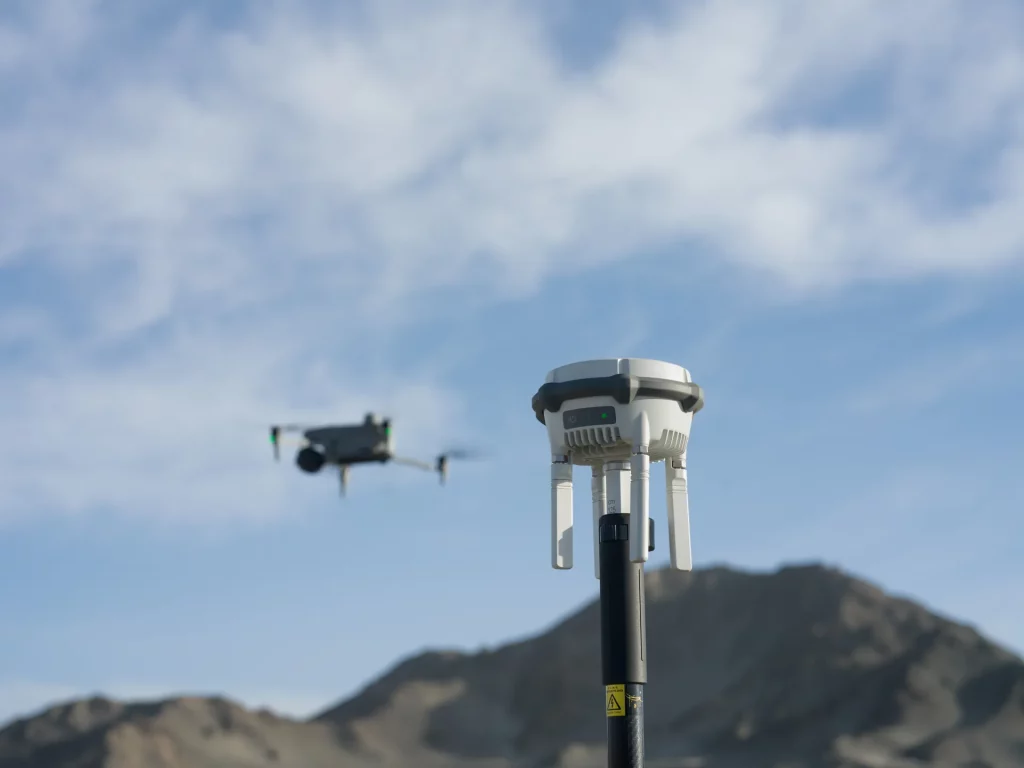

High-Precision Mapping with the DJI Matrice 4E

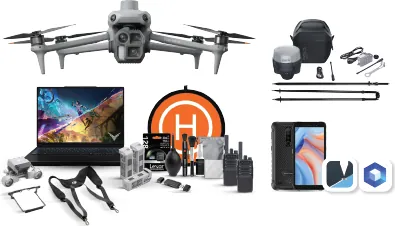

In-The-Box
- Drone (include microSD card) x 1
- Remote controller x 1
- Flight battery x 1
- Propeller (pair) x 3
- Charger x 1
- Charging hub x 1
- Power cable x 2
- Carrying case x 1
- Pry bar x 1
- Manuals x 1
Specs Sheet
Aircraft
| Category | Specification |
| Takeoff Weight (with propellers) | 1219 g*The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. |
| Takeoff Weight (with Low-Noise propellers) | 1229 g*The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. |
| Max Takeoff Weight | Standard Propellers: 1420 gLow-Noise Propellers: 1430 g |
| Dimensions | Folded: 260.6×113.7×138.4 mm (L×W×H)Unfolded: 307.0×387.5×149.5 mm (L×W×H)Maximum dimensions excluding propellers. |
| Max Payload | 200 g |
| Propeller Size | 10.8 in |
| Diagonal Wheelbase | 438.8 mm |
| Max Ascent Speed | 10 m/s |
| Maximum Ascent Speed With Accessories | 6 m/s |
| Max Descent Speed | 8 m/s |
| Max Descent Speed With Accessories | 6 m/s |
| Max Horizontal Speed (at sea level, no wind) | 21 m/s21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways*No faster than 19 m/s with Sport mode in EU regions. |
| Max Altitude | 6000 m |
| Max Operating Altitude with Payload | 4000 m |
| Max Flight Time (without wind) | 49 min (standard propellers)46 min (low-noise propellers)Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app. |
| Max Hover Time (without wind) | 42 min (standard propellers)39 min (low-noise propellers)Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%. |
| Max Flight Distance (no wind) | 35 km (standard propellers)32 km (low-noise propellers)Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app. |
| Max Wind Speed Resistance | 12 m/s*Max wind speed resistance during takeoff and landing. |
| Max Pitch Angle | 35° |
| Operating Temperature | 10℃ to 40℃ (14°F to 104°F) |
| GNSS | GPS + Galileo + BeiDou + GLONASS*GLONASS is supported only when the RTK module is enabled. |
| Hovering Accuracy Range (windless or breezy) | ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) |
| RTK GNSS Accuracy | RTK Fix:1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical) |
| Internal Storage | N/A |
| Ports | E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported)E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices.Accessories or expansion modules must be installed before powering on. |
| Propeller Model | 1157F (standard propellers)1154F (low noise propeller) |
| Beacon | Built into the aircraft |
Takeoff Weight (with propellers)
1219 g*The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Takeoff Weight (with Low-Noise propellers)
1229 g*The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Max Takeoff Weight
Standard Propellers: 1420 gLow-Noise Propellers: 1430 g
Dimensions
Folded: 260.6×113.7×138.4 mm (L×W×H)Unfolded: 307.0×387.5×149.5 mm (L×W×H)Maximum dimensions excluding propellers.
Max Payload
200 g
Propeller Size
10.8 in
Diagonal Wheelbase
438.8 mm
Max Ascent Speed
10 m/s
Maximum Ascent Speed With Accessories
6 m/s
Max Descent Speed
8 m/s
Max Descent Speed With Accessories
6 m/s
Max Horizontal Speed (at sea level, no wind)
21 m/s21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways*No faster than 19 m/s with Sport mode in EU regions.
Max Altitude
6000 m
Max Operating Altitude with Payload
4000 m
Max Flight Time (without wind)
49 min (standard propellers)46 min (low-noise propellers)Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Max Hover Time (without wind)
42 min (standard propellers)39 min (low-noise propellers)Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.
Max Flight Distance (no wind)
35 km (standard propellers)32 km (low-noise propellers)Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Max Wind Speed Resistance
12 m/s*Max wind speed resistance during takeoff and landing.
Max Pitch Angle
35°
Operating Temperature
10℃ to 40℃ (14°F to 104°F)
GNSS
GPS + Galileo + BeiDou + GLONASS*GLONASS is supported only when the RTK module is enabled.
Hovering Accuracy Range (windless or breezy)
±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
RTK GNSS Accuracy
RTK Fix:1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Internal Storage
N/A
Ports
E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported)E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices.Accessories or expansion modules must be installed before powering on.
Propeller Model
1157F (standard propellers)1154F (low noise propeller)
Beacon
Built into the aircraft
Camera
| Category | Specification |
| Image Sensor | DJI Matrice 4TWide:1/1.3-inch CMOS, Effective Pixels: 48 MPMedium Tele Camera:1/1.3-inch CMOS, Effective Pixels: 48 MPTelephoto:1/1.5-inch CMOS, Effective Pixels: 48 MPDJI Matrice 4EWide:4/3-inch CMOS Effective Pixels: 20 MPMedium Tele Camera:1/1.3-inch CMOS, Effective Pixels: 48 MPTelephoto:1/1.5-inch CMOS, Effective Pixels: 48 MP |
| Lens | DJI Matrice 4TFOV: 82°Equivalent Focal Length: 24 mmAperture: f/1.7Focus: 1 m to ∞DJI Matrice 4EFOV: 84°Equivalent Focal Length: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞Medium Tele CameraFOV: 35°Equivalent Focal Length: 70 mmAperture: f/2.8Focus: 3 m to ∞Tele cameraFOV: 15°Equivalent Focal Length: 168 mmAperture: f/2.8Focus: 3 m to ∞ |
| ISO Range | Normal Mode: ISO 100 to ISO 25600Night Scene Mode:Matrice 4T:Wide Camera: ISO 100 to ISO 409600Midum Tele Camera: ISO 100 to ISO 409600Tele Camera: ISO 100 to ISO 819200Matrice 4E:Wide Camera: ISO 100 to ISO 204800Midum Tele Camera: ISO 100 to ISO 409600Tele Camera: ISO 100 to ISO 409600 |
| Shutter Speed | DJI Matrice 4T2-1/8000 sDJI Matrice 4EWide:Electronic Shutter: 2-1/8000 sMechanical Shutter: 2-1/2000 sMedium Telephoto: 2-1/8000 sTelephoto: 2-1/8000 s |
| Max Photo Size | DJI Matrice 4TWide: 8064 × 6048Medium Telephoto: 8064 × 6048Telephoto: 8192 × 6144DJI Matrice 4EWide: 5280 × 3956Medium Telephoto: 8064 × 6048Telephoto: 8192 × 6144 |
| Minimum Photo Interval | DJI Matrice 4T: 0.7 sDJI Matrice 4E: 0.5 s |
| Still Photography Modes | DJI Matrice 4T:Wide:Single: 12 MP/48 MPInterval: 12 MP/48 MPJPEG：0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting:12MPPanorama: 12 MP (raw image);100 MP (stitched image)Medium Tele Camera:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG：0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12MPTelephoto:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG：0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting：12MPDJI Matrice 4E:Single: 20 MPInterval: 20 MPJPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 sJPEG + RAW：2/3/5/7/10/15/20/30/60 sSmart Shooting: 20 MPPanorama: 20 MP (raw image);100 MP (stitched image)Medium Tele Camera:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting：12 MPTelephoto:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12 MP |
| Video Codec and Resolution | Video Coding Format: H.264/H.265Coding Strategy: CBR, VBRResolution:4K: 3840 × 2160@30fpsFHD: 1920 × 1080@30fps |
| Max Video Bitrate | H.264: 60MbpsH.265: 40Mbps |
| Supported File System | exFAT |
| Photo Format | DJI Matrice 4T: JPEGDJI Matrice 4E:Wide: JPEG/DNG (RAW)Medium Tele Camera: JPEGTelephoto: JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Digital Zoom | Telephoto:16x (112x hybrid zoom) |
Image Sensor
DJI Matrice 4TWide:1/1.3-inch CMOS, Effective Pixels: 48 MPMedium Tele Camera:1/1.3-inch CMOS, Effective Pixels: 48 MPTelephoto:1/1.5-inch CMOS, Effective Pixels: 48 MPDJI Matrice 4EWide:4/3-inch CMOS Effective Pixels: 20 MPMedium Tele Camera:1/1.3-inch CMOS, Effective Pixels: 48 MPTelephoto:1/1.5-inch CMOS, Effective Pixels: 48 MP
Lens
DJI Matrice 4TFOV: 82°Equivalent Focal Length: 24 mmAperture: f/1.7Focus: 1 m to ∞DJI Matrice 4EFOV: 84°Equivalent Focal Length: 24 mmAperture: f/2.8-f/11Focus: 1 m to ∞Medium Tele CameraFOV: 35°Equivalent Focal Length: 70 mmAperture: f/2.8Focus: 3 m to ∞Tele cameraFOV: 15°Equivalent Focal Length: 168 mmAperture: f/2.8Focus: 3 m to ∞
ISO Range
Normal Mode: ISO 100 to ISO 25600Night Scene Mode:Matrice 4T:Wide Camera: ISO 100 to ISO 409600Midum Tele Camera: ISO 100 to ISO 409600Tele Camera: ISO 100 to ISO 819200Matrice 4E:Wide Camera: ISO 100 to ISO 204800Midum Tele Camera: ISO 100 to ISO 409600Tele Camera: ISO 100 to ISO 409600
Shutter Speed
DJI Matrice 4T2-1/8000 sDJI Matrice 4EWide:Electronic Shutter: 2-1/8000 sMechanical Shutter: 2-1/2000 sMedium Telephoto: 2-1/8000 sTelephoto: 2-1/8000 s
Max Photo Size
DJI Matrice 4TWide: 8064 × 6048Medium Telephoto: 8064 × 6048Telephoto: 8192 × 6144DJI Matrice 4EWide: 5280 × 3956Medium Telephoto: 8064 × 6048Telephoto: 8192 × 6144
Minimum Photo Interval
DJI Matrice 4T: 0.7 sDJI Matrice 4E: 0.5 s
Still Photography Modes
DJI Matrice 4T:Wide:Single: 12 MP/48 MPInterval: 12 MP/48 MPJPEG：0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting:12MPPanorama: 12 MP (raw image);100 MP (stitched image)Medium Tele Camera:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG：0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12MPTelephoto:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG：0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting：12MPDJI Matrice 4E:Single: 20 MPInterval: 20 MPJPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 sJPEG + RAW：2/3/5/7/10/15/20/30/60 sSmart Shooting: 20 MPPanorama: 20 MP (raw image);100 MP (stitched image)Medium Tele Camera:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting：12 MPTelephoto:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12 MP
Video Codec and Resolution
Video Coding Format: H.264/H.265Coding Strategy: CBR, VBRResolution:4K: 3840 × 2160@30fpsFHD: 1920 × 1080@30fps
Max Video Bitrate
H.264: 60MbpsH.265: 40Mbps
Supported File System
exFAT
Photo Format
DJI Matrice 4T: JPEGDJI Matrice 4E:Wide: JPEG/DNG (RAW)Medium Tele Camera: JPEGTelephoto: JPEG
Video Format
MP4 (MPEG-4 AVC/H.264)
Digital Zoom
Telephoto:16x (112x hybrid zoom)
NIR Auxiliary Light
| Category | Specification |
| Infrared Illumination | DJI Matrice 4T:FOV: 5.7°±0.3° |
Infrared Illumination
DJI Matrice 4T:FOV: 5.7°±0.3°
Laser Module
| Category | Specification |
| Laser Rangefinding | Measurement Range: 1800 m (1 Hz) @20% reflectivity target*Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)Blind Zone: 1 mDistance Measurement Accuracy:1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σOther Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)Performance degradation may occur in rainy or foggy conditions |
Laser Rangefinding
Measurement Range: 1800 m (1 Hz) @20% reflectivity target*Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)Blind Zone: 1 mDistance Measurement Accuracy:1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σOther Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)Performance degradation may occur in rainy or foggy conditions
Infrared Thermal Camera
| Category | Specification |
| Thermal Imager | DJI Matrice 4T: uncooled vanadium oxide (VOx)DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage. |
| Resolution | DJI Matrice 4T: 640 × 512 |
| Pixel Pitch | DJI Matrice 4T: 12 μm |
| Frame Rate | DJI Matrice 4T: 30 Hz |
| Lens | DJI Matrice 4T DFOV: 45°±0.3°DJI Matrice 4T equivalent focal length: 53 mmDJI Matrice 4T Aperture: f/1.0DJI Matrice 4T Focus: 5 m to ∞ |
| Sensitivity | DJI Matrice 4T: ≤[email protected] |
| Temperature Measurement Method | DJI Matrice 4T: Spot Meter, Area Measurement |
| Temperature Measurement Range | DJI Matrice 4T:High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) ()Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F) |
| Palette | DJI Matrice 4T:White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Photo Format | DJI Matrice 4T：JPEG (8bit)、 R-JPEG (16bit) |
| Video Resolution | DJI Matrice 4T:1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated)Other conditions: 640 × 512@30fps |
| Video Bitrate | DJI Matrice 4T:6.5Mbps (H.264 640 × 512@30fps)5Mbps (H.265 640 × 512@30fps)12Mbps (H.264 1280 × 1024@30fps)8Mbps (H.265 1280 × 1024@30fps) |
| Video Format | DJI Matrice 4T：MP4 |
| Still Photography Modes | DJI Matrice 4T:Single: 1280 × 1024/640 × 512Interval: 1280 × 1024/640 × 512JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s |
| Photo Resolution | DJI Matrice 4T:Infrared: 1280 × 1024 (Super Resolution on)640 × 512 (Super Resolution off) |
| Digital Zoom | DJI Matrice 4T: 28x |
| Infrared Wavelength | DJI Matrice 4T: 8um to 14um |
| Infrared Temperature Measurement Accuracy | DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greaterDJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater |
Thermal Imager
DJI Matrice 4T: uncooled vanadium oxide (VOx)DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
Resolution
DJI Matrice 4T: 640 × 512
Pixel Pitch
DJI Matrice 4T: 12 μm
Frame Rate
DJI Matrice 4T: 30 Hz
Lens
DJI Matrice 4T DFOV: 45°±0.3°DJI Matrice 4T equivalent focal length: 53 mmDJI Matrice 4T Aperture: f/1.0DJI Matrice 4T Focus: 5 m to ∞
Sensitivity
DJI Matrice 4T: ≤[email protected]
Temperature Measurement Method
DJI Matrice 4T: Spot Meter, Area Measurement
Temperature Measurement Range
DJI Matrice 4T:High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) ()Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
Palette
DJI Matrice 4T:White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format
DJI Matrice 4T：JPEG (8bit)、 R-JPEG (16bit)
Video Resolution
DJI Matrice 4T:1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated)Other conditions: 640 × 512@30fps
Video Bitrate
DJI Matrice 4T:6.5Mbps (H.264 640 × 512@30fps)5Mbps (H.265 640 × 512@30fps)12Mbps (H.264 1280 × 1024@30fps)8Mbps (H.265 1280 × 1024@30fps)
Video Format
DJI Matrice 4T：MP4
Still Photography Modes
DJI Matrice 4T:Single: 1280 × 1024/640 × 512Interval: 1280 × 1024/640 × 512JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Photo Resolution
DJI Matrice 4T:Infrared: 1280 × 1024 (Super Resolution on)640 × 512 (Super Resolution off)
Digital Zoom
DJI Matrice 4T: 28x
Infrared Wavelength
DJI Matrice 4T: 8um to 14um
Infrared Temperature Measurement Accuracy
DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greaterDJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater
Gimbal
| Category | Specification |
| Stabilization System | DJI Matrice 4T：3-axis (tilt, roll, pan)DJI Matrice 4E：3-axis (tilt, roll, pan) |
| Mechanical Range | DJI Matrice 4TGimbal Mechanical Limits:Tilt: -140° to 113°Roll: -52° to 52°Pan: -65° to 65°Soft Limits:Tilt: -90° to 35°Roll: -47° to 47°Pan: -60° to 60°DJI Matrice 4EGimbal Mechanical Limits:Tilt: -140° to 50°Roll: -52° to 52°Pan: -65° to 65°Soft Limits:Tilt: -90° to 35°Roll: -47° to 47°Pan: -60° to 60° |
| Controllable Rotation Range | DJI Matrice 4TDJI Matrice 4TPan: -90° to 35°Pan: Not controllableDJI Matrice 4ETilt: -90° to 35°Pan: Not controllable |
| Max Control Speed (tilt) | 100°/s |
| Angular Vibration Range | ±0.007° |
| Yaw Axis | Manual operation is uncontrollableThe MSDK interface program is controllable. |
| Ingress Protection Rating | No Standard Protection Level |
| Operating Temperature | Standard: -10°C to 40°C (14°F to 104°F) |
Stabilization System
DJI Matrice 4T：3-axis (tilt, roll, pan)DJI Matrice 4E：3-axis (tilt, roll, pan)
Mechanical Range
DJI Matrice 4TGimbal Mechanical Limits:Tilt: -140° to 113°Roll: -52° to 52°Pan: -65° to 65°Soft Limits:Tilt: -90° to 35°Roll: -47° to 47°Pan: -60° to 60°DJI Matrice 4EGimbal Mechanical Limits:Tilt: -140° to 50°Roll: -52° to 52°Pan: -65° to 65°Soft Limits:Tilt: -90° to 35°Roll: -47° to 47°Pan: -60° to 60°
Controllable Rotation Range
DJI Matrice 4TDJI Matrice 4TPan: -90° to 35°Pan: Not controllableDJI Matrice 4ETilt: -90° to 35°Pan: Not controllable
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.007°
Yaw Axis
Manual operation is uncontrollableThe MSDK interface program is controllable.
Ingress Protection Rating
No Standard Protection Level
Operating Temperature
Standard: -10°C to 40°C (14°F to 104°F)
Sensing
| Category | Specification |
| Sensing Type | Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft. |
| Forward | Binocular Measurement Range: 0.4-22.5 mMeasurement Range: 0.4-200 mObstacle Avoidance Speed: Flight Speed ≤21 m/sFOV: 90° (horizontal), 135° (vertical) |
| Backward | Measurement Range: 0.4-22.5 mMeasurement Range: 0.4-200 mObstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical) |
| Lateral | Measurement Range: 0.5-32 mMeasurement Range: 0.5-200 mObstacle Avoidance Speed: Flight Speed ≤21 m/sFOV: 90° (horizontal), 90° (vertical) |
| Downward | Measurement Range: 0.3-18.8 mObstacle Avoidance Speed: Flight Speed ≤10 m/sThe FOV to the front and rear is 160° and 160° to the right and left. |
| Operating Environment | Forward, Backward, Left, Right, and Upward:Delicate texture on the surface, adequate light.Downward:The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene. |
Sensing Type
Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
Forward
Binocular Measurement Range: 0.4-22.5 mMeasurement Range: 0.4-200 mObstacle Avoidance Speed: Flight Speed ≤21 m/sFOV: 90° (horizontal), 135° (vertical)
Backward
Measurement Range: 0.4-22.5 mMeasurement Range: 0.4-200 mObstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)
Lateral
Measurement Range: 0.5-32 mMeasurement Range: 0.5-200 mObstacle Avoidance Speed: Flight Speed ≤21 m/sFOV: 90° (horizontal), 90° (vertical)
Downward
Measurement Range: 0.3-18.8 mObstacle Avoidance Speed: Flight Speed ≤10 m/sThe FOV to the front and rear is 160° and 160° to the right and left.
Operating Environment
Forward, Backward, Left, Right, and Upward:Delicate texture on the surface, adequate light.Downward:The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.
Video Transmission
| Category | Specification |
| Video Transmission System | O4 Enterprise |
| Live View Quality | Remote Controller: 1080p/30fps |
| Operating Frequency | 2.400-2.4835 GHz2.400-2.4835 GHz5.725-5.850 GHz5.150-5.250 GHz (CE)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Transmitter Power (EIRP) | 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)5.15-5.25: < 23 dBm (FCC/CE) |
| Max Transmission Distance (unobstructed, free of interference) | 25 km (FCC)12 km (CE)12 km (SRRC)12 km (MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. |
| Max Transmission Distance (with interference) | Strong Interference – City Centers (approx. 1.5-5 km)Medium Interference – Suburban Areas (approx. 5-15 km)Micro interference：Suburbs/Seasides (approx. 15-25 km)Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. |
| Max Download Speed | 20 MB/sThe above data was measured under conditions where the aircraft and remote controller were in close proximity without interference. |
| Latency (depending on environmental conditions and mobile device) | 130 msUnder near-field interference-free conditions, the Latency performance when shooting with a 1x lens. |
| Antenna | 8 antennas, 2T4R |
| Others | Cellular Dongle Compartment |
Video Transmission System
O4 Enterprise
Live View Quality
Remote Controller: 1080p/30fps
Operating Frequency
2.400-2.4835 GHz2.400-2.4835 GHz5.725-5.850 GHz5.150-5.250 GHz (CE)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)5.15-5.25: < 23 dBm (FCC/CE)
Max Transmission Distance (unobstructed, free of interference)
25 km (FCC)12 km (CE)12 km (SRRC)12 km (MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Max Transmission Distance (with interference)
Strong Interference – City Centers (approx. 1.5-5 km)Medium Interference – Suburban Areas (approx. 5-15 km)Micro interference：Suburbs/Seasides (approx. 15-25 km)Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Max Download Speed
20 MB/sThe above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
Latency (depending on environmental conditions and mobile device)
130 msUnder near-field interference-free conditions, the Latency performance when shooting with a 1x lens.
Antenna
8 antennas, 2T4R
Others
Cellular Dongle Compartment
Memory Card
| Category | Specification |
| Supported SD Cards | U3/Class10/V30 or above is required, or use a memory card from the recommended list. |
| Recommended microSD Cards | Lexar 1066x 64GB U3 A2 V30 microSDXCLexar 1066x 128GB U3 A2 V30 microSDXCLexar 1066x 256GB U3 A2 V30 microSDXCLexar 1066x 512GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 64GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 128GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 256GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC |
Supported SD Cards
U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Recommended microSD Cards
Lexar 1066x 64GB U3 A2 V30 microSDXCLexar 1066x 128GB U3 A2 V30 microSDXCLexar 1066x 256GB U3 A2 V30 microSDXCLexar 1066x 512GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 64GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 128GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 256GB U3 A2 V30 microSDXCKingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC
Intelligent Flight Battery
| Category | Specification |
| Capacity | 6741 mAh |
| Standard Voltage | 14.76 V |
| Max Charging Voltage | 17.0 V |
| Cell Type | Li-ion 4S |
| Energy | 99.5 Wh |
| Weight | 401 g |
| Recharging Temperature | 5°C to 40°C (41°F to 104°F) |
| Discharge Rate | 4C |
| Max Charging Power | 1.8C |
| Supports low-temperature charging | Not supported |
| Cycle Count | 200 |
Capacity
6741 mAh
Standard Voltage
14.76 V
Max Charging Voltage
17.0 V
Cell Type
Li-ion 4S
Energy
99.5 Wh
Weight
401 g
Recharging Temperature
5°C to 40°C (41°F to 104°F)
Discharge Rate
4C
Max Charging Power
1.8C
Supports low-temperature charging
Not supported
Cycle Count
200
Power Adapter (100W)
| Category | Specification |
| Input | 100-240 V (AC), 50-60 Hz, 2.5 A |
| Output | Max. 100 W (total)When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load. |
| Rated Power | 100 W |
Input
100-240 V (AC), 50-60 Hz, 2.5 A
Output
Max. 100 W (total)When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
Rated Power
100 W
Charging Hub
| Category | Specification |
| Input | USB-C：5-20 V, max 5 A |
| Output | Battery Interface: 11.2 V to 17 V |
| Rated Power | 100 W |
| Recharging Type | 4 batteries charging in sequenceSupport Standard Mode (100% SOC) and Standby Mode (90% SOC) |
| Compatible Battery | DJI Matrice 4E/T Series Intelligent Flight Battery |
| Charging Temperature | 5° to 40° C (41°F to 104°F) |
Input
USB-C：5-20 V, max 5 A
Output
Battery Interface: 11.2 V to 17 V
Rated Power
100 W
Recharging Type
4 batteries charging in sequenceSupport Standard Mode (100% SOC) and Standby Mode (90% SOC)
Compatible Battery
DJI Matrice 4E/T Series Intelligent Flight Battery
Charging Temperature
5° to 40° C (41°F to 104°F)

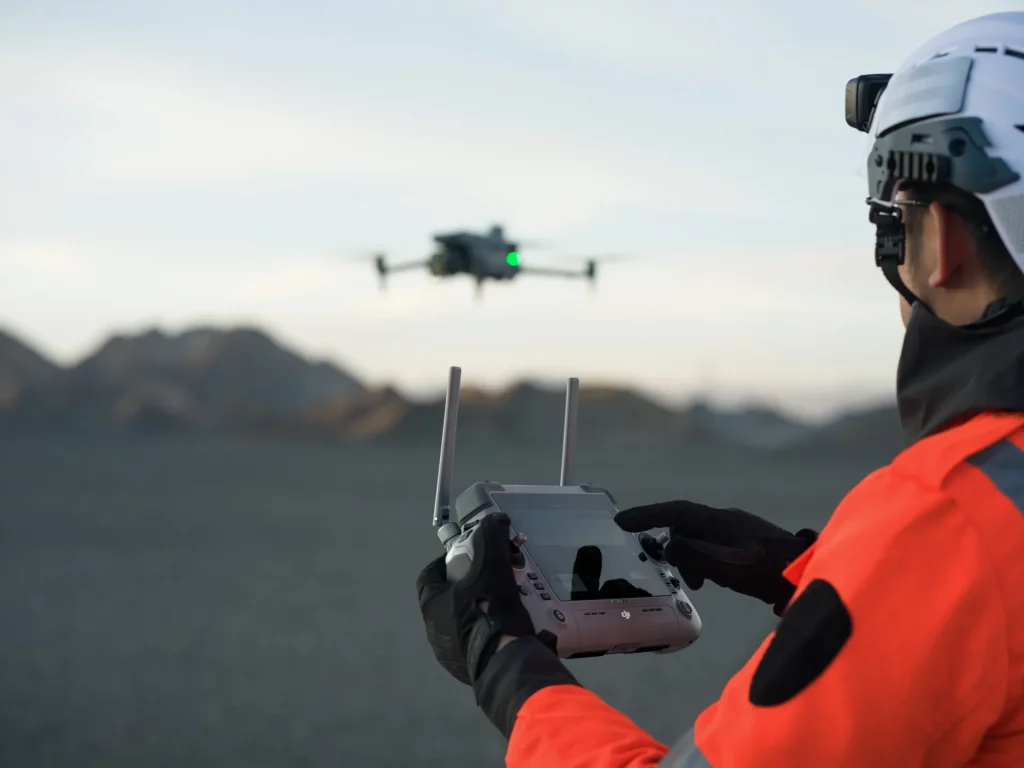

DJI RC Plus 2 Enterprise
| Category | Specification |
| Video Transmission System | O4 Enterprise |
| Max Transmission Distance (unobstructed, free of interference) | 25 km (FCC)12 km (CE)12 km (SRRC)12 km (MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. |
| Operating Band of Image Transmission | 2.4000-2.4835 GHz5.725 – 5.850 GHz5.1GHz (receive only)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Antenna | 2T4R, built-in multi-beam high-gain antenna |
| Video Transmission Transmitter Power (EIRP) | 2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC)5.1 GHz: <23 dBm (CE)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC) |
| 4G Transmission | DJI Cellular Dongle 2 |
| Wi-Fi Protocol | Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/axSupport 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS) |
| Wi-Fi Operating Band | 2.4000-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor. |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/ MIC)5.1 GHz: <23 dBm (FCC)5.8 GHz ＜23 dBm (FCC/SRRC), ＜14 dBm (CE) |
| Bluetooth Protocol | Bluetooth 5.2 |
| Bluetooth Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power (EIRP) | <10 dBm |
| Screen Resolution | 1920 × 1200 |
| Screen Size | 7.02 inches |
| Screen Frame Rate | 60 fps |
| Brightness | 1400 nits |
| Touchscreen Control | 10 Points Multi-touch |
| Built-in Battery | 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh |
| External Battery | Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh |
| Recharging Type | Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger. |
| Storage Capacity | ROM 128 G + expandable storage via microSD card |
| Charging Time | 2 hrs for internal battery or internal and external battery.When remote controller is powered off and using a standard DJI charger. |
| Internal Battery Runtime | 3.8 hrs |
| External Battery Runtime | 3.2 hrs |
| Output Port | HDMI 1.4 |
| Indicators | Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness. |
| Speaker | Supports buzzer |
| Audio | Array MIC |
| Operating Temperature | 20° to 50° C (D228 (-4°F to 122°F) |
| Storage Temperature | Within one month: -30° to 45° C (-22°F to 113°F)One to three months: -30° to 35° C (-22°F to 95°F)Three months to one year: -30° to 30° C (-22°F to 86°F) |
| Recharging Temperature | 5° to 40° C (41°F to 104°F) |
| Supported Aircraft Models | Support for Matrice 4T/4E |
| GNSS | GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh. |
| Dimensions | 268×163×94.5 mm (L×W×H)Width including external antenna folded, thickness including handle and controller sticks. |
| Weight | 1.15 kg (without external battery) |
| Model | TKPL 2 |
| System Version | Android 11 |
| External Interfaces | HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface. |
| Accessory | Optional strap/waist support |
Video Transmission System
O4 Enterprise
Max Transmission Distance (unobstructed, free of interference)
25 km (FCC)12 km (CE)12 km (SRRC)12 km (MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Operating Band of Image Transmission
2.4000-2.4835 GHz5.725 – 5.850 GHz5.1GHz (receive only)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Antenna
2T4R, built-in multi-beam high-gain antenna
Video Transmission Transmitter Power (EIRP)
2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC)5.1 GHz: <23 dBm (CE)5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
4G Transmission
DJI Cellular Dongle 2
Wi-Fi Protocol
Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/axSupport 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)
Wi-Fi Operating Band
2.4000-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
Wi-Fi Transmitter Power (EIRP)
2.4 GHz: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/ MIC)5.1 GHz: <23 dBm (FCC)5.8 GHz ＜23 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth Protocol
Bluetooth 5.2
Bluetooth Operating Frequency
2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)
<10 dBm
Screen Resolution
1920 × 1200
Screen Size
7.02 inches
Screen Frame Rate
60 fps
Brightness
1400 nits
Touchscreen Control
10 Points Multi-touch
Built-in Battery
2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
External Battery
Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
Recharging Type
Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.
Storage Capacity
ROM 128 G + expandable storage via microSD card
Charging Time
2 hrs for internal battery or internal and external battery.When remote controller is powered off and using a standard DJI charger.
Internal Battery Runtime
3.8 hrs
External Battery Runtime
3.2 hrs
Output Port
HDMI 1.4
Indicators
Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.
Speaker
Supports buzzer
Audio
Array MIC
Operating Temperature
20° to 50° C (D228 (-4°F to 122°F)
Storage Temperature
Within one month: -30° to 45° C (-22°F to 113°F)One to three months: -30° to 35° C (-22°F to 95°F)Three months to one year: -30° to 30° C (-22°F to 86°F)
Recharging Temperature
5° to 40° C (41°F to 104°F)
Supported Aircraft Models
Support for Matrice 4T/4E
GNSS
GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh.
Dimensions
268×163×94.5 mm (L×W×H)Width including external antenna folded, thickness including handle and controller sticks.
Weight
1.15 kg (without external battery)
Model
TKPL 2
System Version
Android 11
External Interfaces
HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface.
Accessory
Optional strap/waist support
Bundles
Matrice 4 Enterprise Single Package
Details
1 x Matrice 4 Enterprise
1 x Aonic Care Basic
1 x Aonic Combo Accessories
1 x Lenovo IdeaPad Laptop
1 x Basic Equipment Training
1 x Aonic Care Basic
1 x Aonic Combo Accessories
1 x Lenovo IdeaPad Laptop
1 x Basic Equipment Training
Price
RM 17,230
Matrice 4 Enterprise Basic Survey Package
Details
1 x Matrice 4 Enterprise
3 x Matrice 4 Battery
1 x Aonic Care+
1 x AL1 Spotlight
1 x AS1 Spotlight
1 x RC Plus 2 Strap & Waist support
1 x Lenovo IdeaPad Laptop
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
3 x Matrice 4 Battery
1 x Aonic Care+
1 x AL1 Spotlight
1 x AS1 Spotlight
1 x RC Plus 2 Strap & Waist support
1 x Lenovo IdeaPad Laptop
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
Price
RM 25,000
Matrice 4 Enterprise Advance Survey Package
Details
1 x Matrice 4 Enterprise
3 x Matrice 4 Battery
1 x Aonic Care+
1 x AL1 Spotlight
1 x AS1 Spotlight
2 x Emlid Reach RS3
1 x LoRA Amplifier
1 x DJI Terra Flagship Perpetual (Online
1 x RC Plus 2 Strap & Waist support
1 x Aonic Combo Accessories
1 x Bipod Combo1 x Reach RS3 Setcase
1 x Emlid Flow Survey Plan
1 x Ulefone Rugged Phone
1 x Illegear Processing Laptop
1 x Walkie Talkie Set
1 x 2 Day Equipment Training
3 x Matrice 4 Battery
1 x Aonic Care+
1 x AL1 Spotlight
1 x AS1 Spotlight
2 x Emlid Reach RS3
1 x LoRA Amplifier
1 x DJI Terra Flagship Perpetual (Online
1 x RC Plus 2 Strap & Waist support
1 x Aonic Combo Accessories
1 x Bipod Combo1 x Reach RS3 Setcase
1 x Emlid Flow Survey Plan
1 x Ulefone Rugged Phone
1 x Illegear Processing Laptop
1 x Walkie Talkie Set
1 x 2 Day Equipment Training
Price
RM 65,000
Aonic Care
Premium Care Package
Aonic Care+ (Drone)
Care+ Includes:
- Premium warranty with coverage repair
- Different rates apply for different models
- Unlimited repair up to total coverage value
- 4× Maintenance sessions
- 1-Year Validity
- Inclusive labor fee
- Inclusive delivery charge
Aonic Flex
Matrice 4 Enterprise Single Package
Tenure
12 Months
Down-payment
RM 3,446
Monthly Repayment
RM 1,149
Matrice 4 Enterprise Basic Survey Package
Tenure
12 Months
Down-payment
RM 5,000
Monthly Repayment
RM 1,667
Matrice 4 Enterprise Advance Survey Package
Tenure
12 Months
Down-payment
RM 13,000
Monthly Repayment
RM 4,333
Get In Touch
Have questions? Our drone experts are here to help
