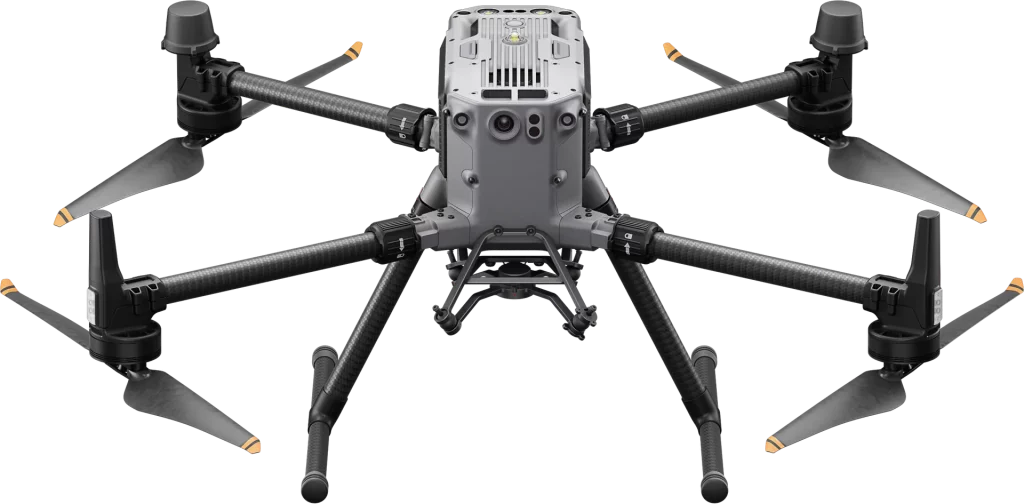

DJI Matrice 350 RTK

Next-Gen Performance, Unmatched Flexibility

The DJI Matrice 350 RTK is a powerful enterprise drone built for mission-critical operations. Combining extended flight time, robust safety features, and advanced payload support, the M350 sets a new standard for aerial versatility, reliability, and precision.

Redesigned with upgraded transmission, obstacle sensing, and battery performance, the Matrice 350 RTK delivers up to 55 minutes of flight time, a triple-channel O3 Enterprise transmission system, and hot-swappable dual batteries rated for 400 cycles. It includes the rugged DJI RC Plus controller, optimized for outdoor use and extended runtime.

Core Advantages at a Glance

55-min Max Flight IP55 Weather –20 °C to +50 °C

Multi-Payload Support (up to 2.7 kg)

O3 Enterprise Video Transmission (20 km, 4-antenna)

6-Directional Vision + Infrared Sensing Optional CSM Radar

Night-Vision FPV Camera + Arm-Lock Indicator

Dual TB65 Hot-Swap Batteries (400-cycle lifespan)

BS65 Intelligent Battery Station (Charging & Storage)

DJI RC Plus Controller (7″, IP54, 6-hr Runtime)

Key Features

Extended Flight & Intelligent Power

Flight time up to 55 minutes with no payload

Dual TB65 battery system with hot-swap capability for uninterrupted missions

400-charge cycle lifespan for reduced operating costs

BS65 Battery Station supports smart charging, storage, and updates for TB65 and WB37 batteries

Comprehensive Obstacle Avoidance

Six-directional sensing: forward, backward, left, right, up, and down

Infrared and visual sensors with customizable obstacle response

Optional CSM radar enhances mid-range detection in complex environments

Night-vision FPV camera enables clear visibility in low-light operations

Arm-lock detection system ensures props are properly secured before takeoff

Reliable Transmission & Control

O3 Enterprise transmission system with up to 20 km range

Triple-channel 1080p live feed, adaptive frequency hopping

DJI RC Plus controller with 7″ 1200-nit high-brightness screen

Dual battery slots on the controller allow extended runtime (up to 6 hours)

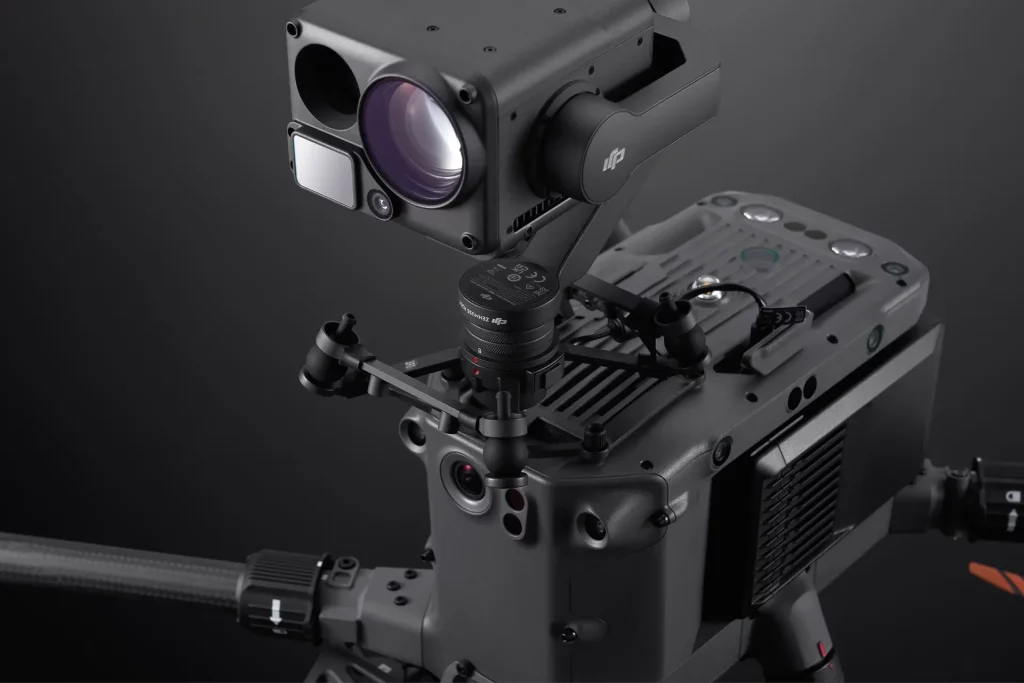

Robust Payload Integration

Supports a wide range of DJI payloads: Zenmuse H20 Series, P1, L1, H30T

Compatible with third-party payloads via DJI PSDK

Built-in RTK module for centimeter-level accuracy

Advanced mission planning via DJI Pilot 2 with support for AI Spot Check, PinPoint, and Waypoint automation

In-The-Box

DJI M350 RTK x 1
Landing Gear x 2
Propellers x 2 Pair (installed)
Propellers x 1 Pair (spare)
Shock Absorber Ball x 4
DJI RC Plus x 1
WB37 Battery x 1
Aircraft Case x 1

Specs Sheet

Aircraft

Category	Specification
Dimensions (Unfolded, w/out propellers)	810 × 670 × 430 mm
Dimensions (Folded, w/ propellers)	430 × 420 × 430 mm
Diagonal Wheelbase	895 mm
Weight (w/ single downward gimbal, no batteries)	~3.77 kg
Weight (with two TB65 batteries)	~6.47 kg
Max Takeoff Weight	9.2 kg
Single Gimbal Max Payload	960 g

Dimensions (Unfolded, w/out propellers)

810 × 670 × 430 mm

Dimensions (Folded, w/ propellers)

430 × 420 × 430 mm

Diagonal Wheelbase

895 mm

Weight (w/ single downward gimbal, no batteries)

~3.77 kg

Weight (with two TB65 batteries)

~6.47 kg

Max Takeoff Weight

9.2 kg

Single Gimbal Max Payload

960 g

Communication & Transmission

Category	Specification
Operating Frequency	2.400–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz
Transmitter Power (EIRP)	2.4 GHz: <33 dBm (FCC) / <20 dBm (CE) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC)

Operating Frequency

2.400–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC) / <20 dBm (CE) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC)

Flight Performance & Positioning

Category	Specification
Max Horizontal Speed	23 m/s
Max Ascent / Descent Speed	6 m/s / 5 m/s (7 m/s tilted descent)
Max Pitch Angle	30° (or 25° with forward vision)
Max Angular Velocity	Pitch: 300°/s, Yaw: 100°/s
Max Flight Altitude	5 000 m (standard props), 7 000 m (high-alt props)
Max Wind Resistance	12 m/s

Max Horizontal Speed

23 m/s

Max Ascent / Descent Speed

6 m/s / 5 m/s (7 m/s tilted descent)

Max Pitch Angle

30° (or 25° with forward vision)

Max Angular Velocity

Pitch: 300°/s, Yaw: 100°/s

Max Flight Altitude

5 000 m (standard props), 7 000 m (high-alt props)

Max Wind Resistance

12 m/s

Hovering & RTK Accuracy

Category	Specification
Hovering Accuracy	Vertical: ±0.1 m (vision/RTK), ±0.5 m (GNSS) Horizontal: ±0.3 m (vision), ±1.5 m (GNSS), ±0.1 m (RTK)
RTK Positioning (Fix Mode)	Horizontal: 1 cm + 1 ppm Vertical: 1.5 cm + 1 ppm

Hovering Accuracy

Vertical: ±0.1 m (vision/RTK), ±0.5 m (GNSS)
Horizontal: ±0.3 m (vision), ±1.5 m (GNSS), ±0.1 m (RTK)

RTK Positioning (Fix Mode)

Horizontal: 1 cm + 1 ppm
Vertical: 1.5 cm + 1 ppm

Flight Time

Category	Specification
Max Flight Time	Up to 55 minutes (8 m/s, no payload, windless)

Max Flight Time

Up to 55 minutes (8 m/s, no payload, windless)

Payload Support

Category	Specification
Supported Gimbals	Zenmuse H30/H30T, H20/H20T/H20N, L1, P1, S1, V1
Certified Third-Party Payloads	Supported via DJI Payload SDK
Gimbal Configuration Options	Single/double gimbals: up/down combinations supported

Supported Gimbals

Zenmuse H30/H30T, H20/H20T/H20N, L1, P1, S1, V1

Certified Third-Party Payloads

Supported via DJI Payload SDK

Gimbal Configuration Options

Single/double gimbals: up/down combinations supported

Environmental Resistance

Category	Specification
Operating Temperature	–20 °C to +50 °C
Ingress Protection	IP55
Certification Class	EU C3

Operating Temperature

–20 °C to +50 °C

Ingress Protection

IP55

Certification Class

EU C3
