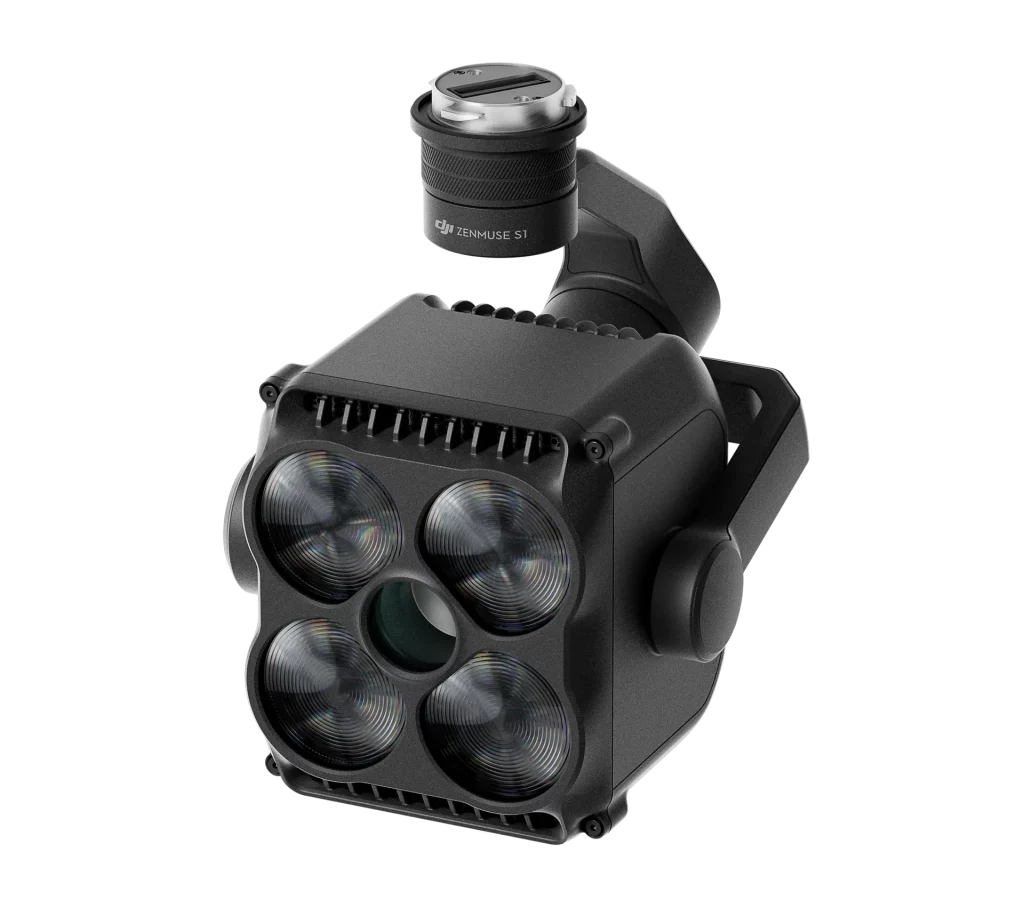

DJI Zenmuse S1

High‑Performance Spotlight Payload

The DJI Zenmuse S1 sets a new standard for aerial illumination—delivering long‑range, high‑intensity lighting with multiple beam modes powered by advanced LEP technology. Purpose‑built for demanding nighttime operations such as search and rescue, law enforcement, and infrastructure inspection, it combines precision beam control, rugged environmental protection, and seamless integration with DJI’s Matrice platforms to ensure mission success in the darkest conditions.

The DJI Zenmuse S1 is DJI’s first spotlight payload designed for multi-payload drone platforms, including the Matrice 400, Matrice 350 RTK, and Matrice 300 RTK. Built on LEP (Laser Excited Phosphor) technology, it delivers powerful illumination with multiple beam modes for diverse operational needs. Ideal for public safety, emergency rescue, infrastructure inspection, and nighttime search missions, the Zenmuse S1 ensures reliable visibility in low-light environments.

Low Beam Mode 15° FOV, 150 m range
High Beam Mode 4° FOV, 300 m range
Both On Mode Combined beams, up to 500 m range
Strobe Mode High-frequency flashing for signaling and alerts
Key Features

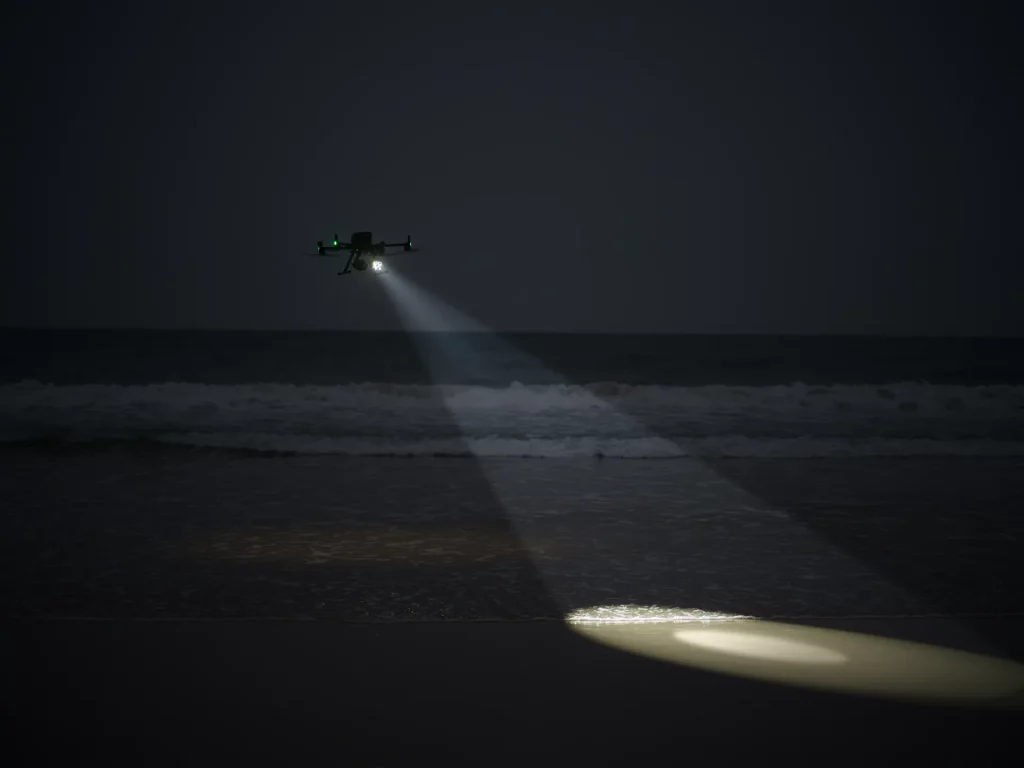

High-Performance Illumination

LEP technology for long-distance, high-brightness lighting

Maximum central illuminance of 40 lux at 100 m

Energy-efficient with only 24 W power draw in High Beam mode

Flexible Lighting Modes

Low Beam for short-range inspection

High Beam for long-range penetration

Both On for maximum coverage up to 500 m

Strobe for emergency signaling

Intelligent Beam Alignment

Auto-calibration with Zenmuse H30 Series on Matrice 400

Gimbal synchronization prevents light deviation

Ensures spotlight aligns with camera view in real time

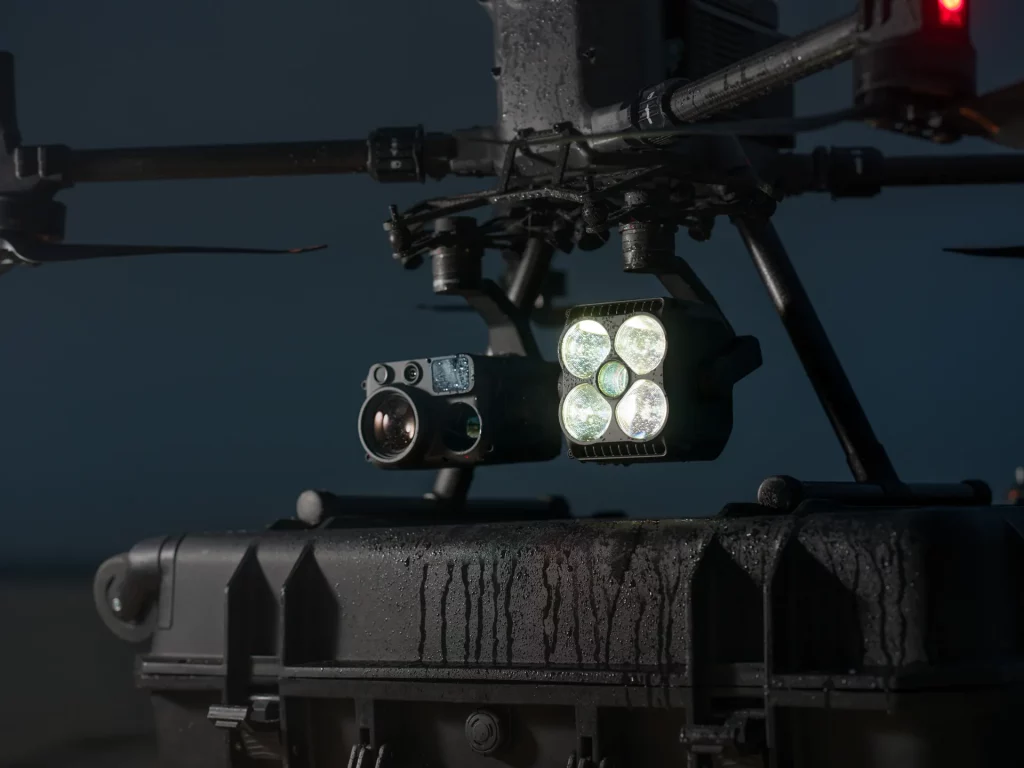

Reliable Protection & Safety

Built-in safeguards against temperature, overcurrent, and power issues

Burn protection with casing surface temperature under 50°C

Durable design for extended operational lifespan

Collaborative Operations

Dual S1 units can be synchronized for wide-area illumination

Remote control and live video integration via DJI FlightHub 2

Supports Mobile SDK and Payload SDK for custom app integration

Specs Sheet
General
CategorySpecification
Product NameZenmuse S1
Weight760 ±10 g
Dimensions125 × 152 × 171 mm (L × W × H)
Rated Power120 W (Matrice 400)
8 W (Matrice 300 RTK / Matrice 350 RTK)
Supported AircraftMatrice 400
Matrice 350 RTK
Matrice 300 RTK (requires DJI RC Plus)
Eye Safety ClassIEC 62471: Risk Group 1
Shell Temperature<50 °C (122 °F, plastic shell)
Ingress ProtectionIP54
Product Name
Zenmuse S1
Weight
760 ±10 g
Dimensions
125 × 152 × 171 mm (L × W × H)
Rated Power
120 W (Matrice 400)
8 W (Matrice 300 RTK / Matrice 350 RTK)
Supported Aircraft
Matrice 400
Matrice 350 RTK
Matrice 300 RTK (requires DJI RC Plus)
Eye Safety Class
IEC 62471: Risk Group 1
Shell Temperature
<50 °C (122 °F, plastic shell)
Ingress Protection
IP54
Environment
CategorySpecification
Operating Temperature-20 °C to 40 °C (-4 °F to 104 °F)
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating Temperature
-20 °C to 40 °C (-4 °F to 104 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Gimbal
CategorySpecification
Stabilization System3-axis (tilt, roll, pan)
Angular Vibration RangeHover: ±0.01° Flight: ±0.02°
MountingDetachable DJI SkyPort
Mechanical RangeTilt: -129° to +73°
Roll: ±55.8°
Pan: ±327°
Controllable RangeTilt: -120° to +60°
Pan: ±320°
Operation ModesFollow / Free / Re-center
Stabilization System
3-axis (tilt, roll, pan)
Angular Vibration Range
Hover: ±0.01° Flight: ±0.02°
Mounting
Detachable DJI SkyPort
Mechanical Range
Tilt: -129° to +73°
Roll: ±55.8°
Pan: ±327°
Controllable Range
Tilt: -120° to +60°
Pan: ±320°
Operation Modes
Follow / Free / Re-center
Illuminance
CategorySpecification
Maximum Central Illuminance40 lux @ 100 m (Matrice 400, Both on)
35 lux @ 100 m (Matrice 300 RTK / 350 RTK, Both on)
Low Beam Central Illuminance20 lux @ 100 m (Matrice 400)
13 lux @ 100 m (Matrice 300 RTK / 350 RTK)
High Beam Central Illuminance30 lux @ 100 m (High Beam mode)
Effective Illumination Angle15 ±1° (Low Beam / Both On) 4 ±0.5° (High Beam)
Typical Color Temperature6500K (Low Beam) 7500K (High Beam)
Dimming ModeAnalog dimming
Effective Illumination Distance500 m (Both On mode)
Maximum Central Illuminance
40 lux @ 100 m (Matrice 400, Both on)
35 lux @ 100 m (Matrice 300 RTK / 350 RTK, Both on)
Low Beam Central Illuminance
20 lux @ 100 m (Matrice 400)
13 lux @ 100 m (Matrice 300 RTK / 350 RTK)
High Beam Central Illuminance
30 lux @ 100 m (High Beam mode)
Effective Illumination Angle
15 ±1° (Low Beam / Both On) 4 ±0.5° (High Beam)
Typical Color Temperature
6500K (Low Beam) 7500K (High Beam)
Dimming Mode
Analog dimming
Effective Illumination Distance
500 m (Both On mode)
Basic Features
CategorySpecification
Lighting ControlOn/Off, brightness adjustment
Strobe Mode5 Hz strobe
Lighting ModesLow Beam, High Beam, Both On
Remote Controller ButtonsConfigurable for light on/off, brightness, or mode change
Gimbal SynchronizationSupports synchronized control with other gimbal payloads
Lighting Control
On/Off, brightness adjustment
Strobe Mode
5 Hz strobe
Lighting Modes
Low Beam, High Beam, Both On
Remote Controller Buttons
Configurable for light on/off, brightness, or mode change
Gimbal Synchronization
Supports synchronized control with other gimbal payloads
Special Features
CategorySpecification
Eye ProtectionAuto brightness limit to 40% when not in flight

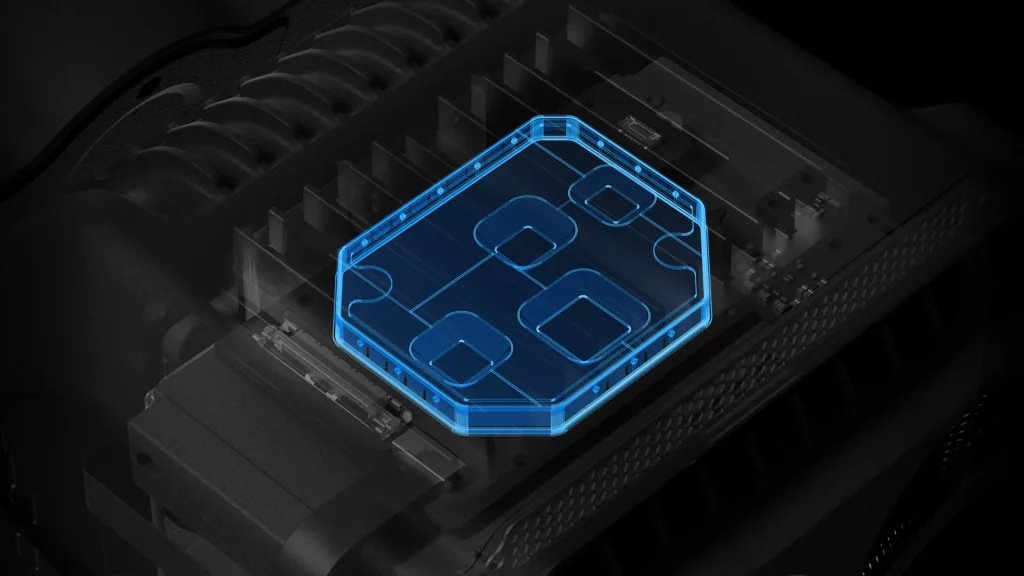

Payload ProtectionLED, LEP temperature, overcurrent, and power protection
Synchronized ControlDual S1 units on Matrice 400 can be controlled simultaneously
Intelligent Beam AlignmentAuto-aligns spotlight with Zenmuse H30 Series camera view on Matrice 400
Eye Protection
Auto brightness limit to 40% when not in flight
Payload Protection
LED, LEP temperature, overcurrent, and power protection
Synchronized Control
Dual S1 units on Matrice 400 can be controlled simultaneously
Intelligent Beam Alignment
Auto-aligns spotlight with Zenmuse H30 Series camera view on Matrice 400
Bundles

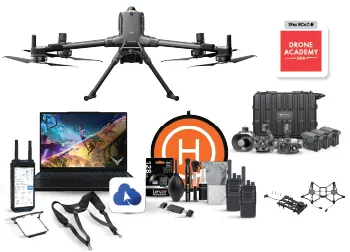

Matrice 400 Advance Surveillance Package*

Details
1 x Matrice 400
1 x BS100
1 X TB100
1 X M400 Care+
1 x Zenmuse H30T
1 x Zenmuse S1
1 x Zenmuse V1
1 x FlightHub 2 Enterprise Version 1 year
1 x AeroveneSkyScan
1 x Aonic Combo Accessories
1 x RC Plus 2 Strap & Waist support
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
1 x Illegear Processing Laptop
Price
RM 180,000
