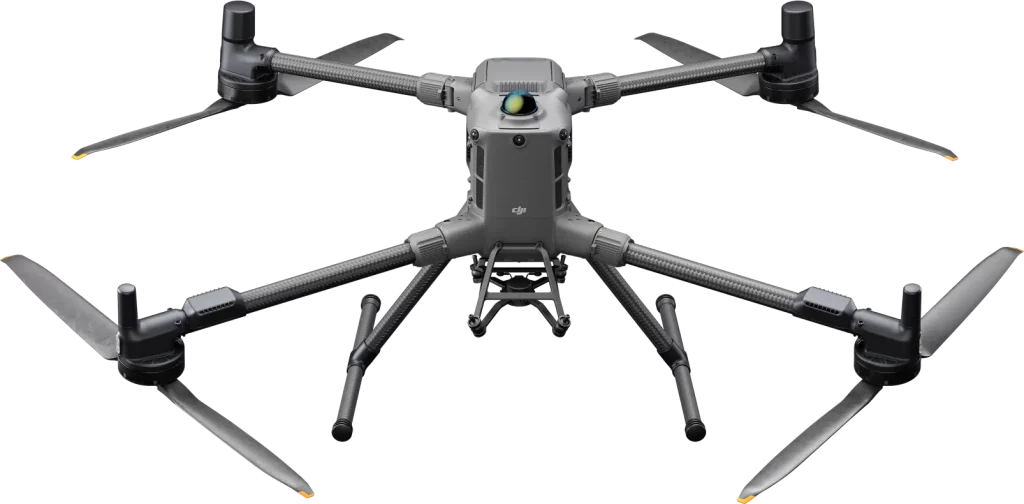

DJI Matrice 400

Flagship Power for Demanding Enterprise Missions

The DJI Matrice 400 sets a new standard in enterprise drone performance—combining extended endurance, multi-payload support, and rugged reliability in a compact yet powerful form factor. Designed for critical field operations, it delivers automation-ready intelligence with the flexibility needed across inspection, emergency response, and mapping missions.

Built for high-stakes operations, the Matrice 400 supports up to seven simultaneous payloads, including the H30T, Zenmuse S1, P1, and more. It features an impressive 59-minute flight time, 6kg payload capacity, and an IP55-rated design for reliable deployment in harsh environments—even from ship decks.

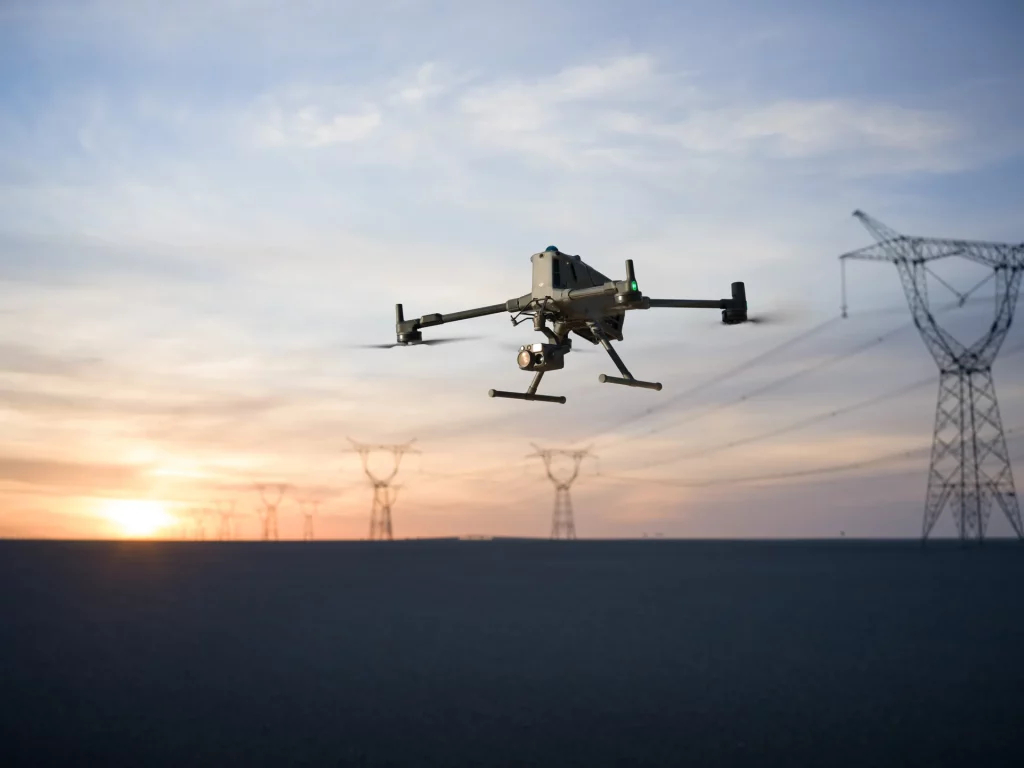

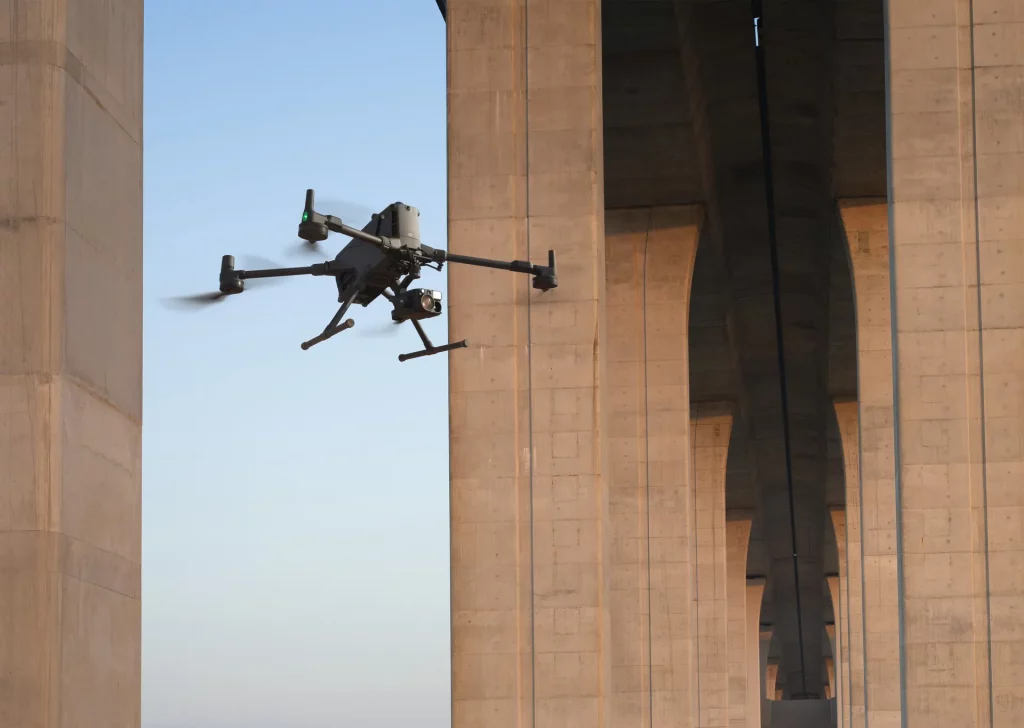

One Aircraft, Many Applications

Multi-Payload Support (H30T, S1, P1, 3rd-Party)

59-min Max Flight Time

6kg Payload Capacity

mmWave Radar + LiDAR Obstacle Avoidance

IP55 All-Weather Protection

Key Features

Unmatched Endurance & Payload Flexibility

Max flight time 59 min forward, 53 min hover with H30T payload

Supports up to 6 kg payload, across single, dual, or triple gimbal configurations, plus four E‑Port V2 external ports supporting seven payloads

Single TB100 (13S, 977 Wh) battery, hot-swappable with 45 seconds GNSS hold‑on during swap

Next-Level Obstacle Avoidance

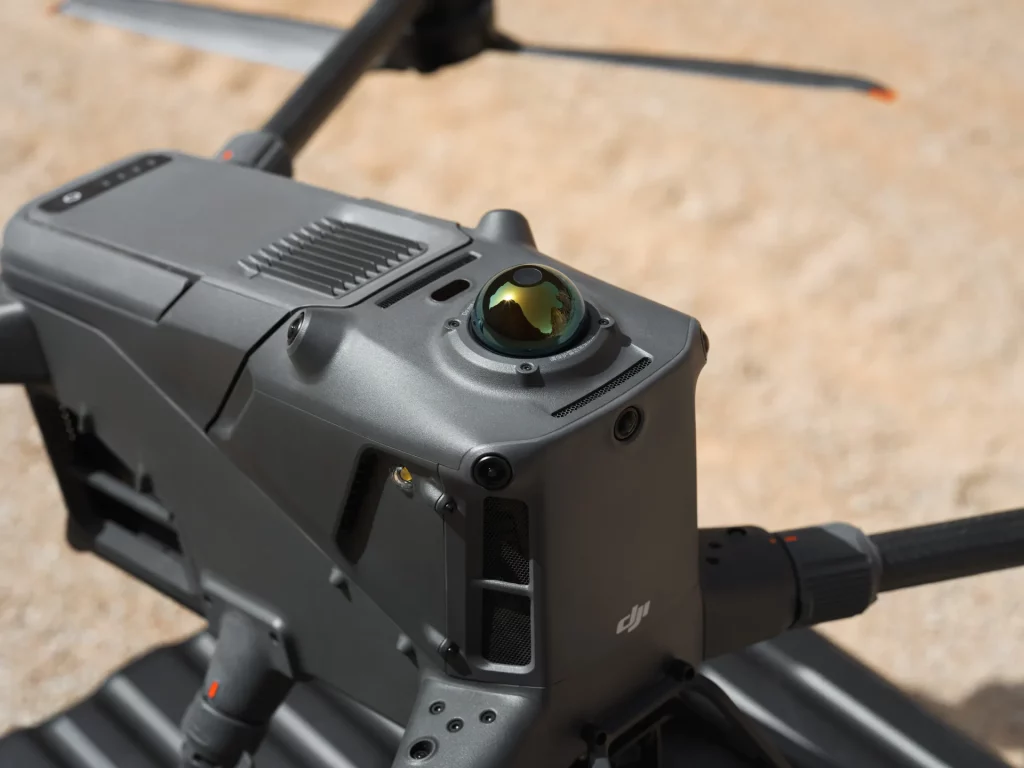

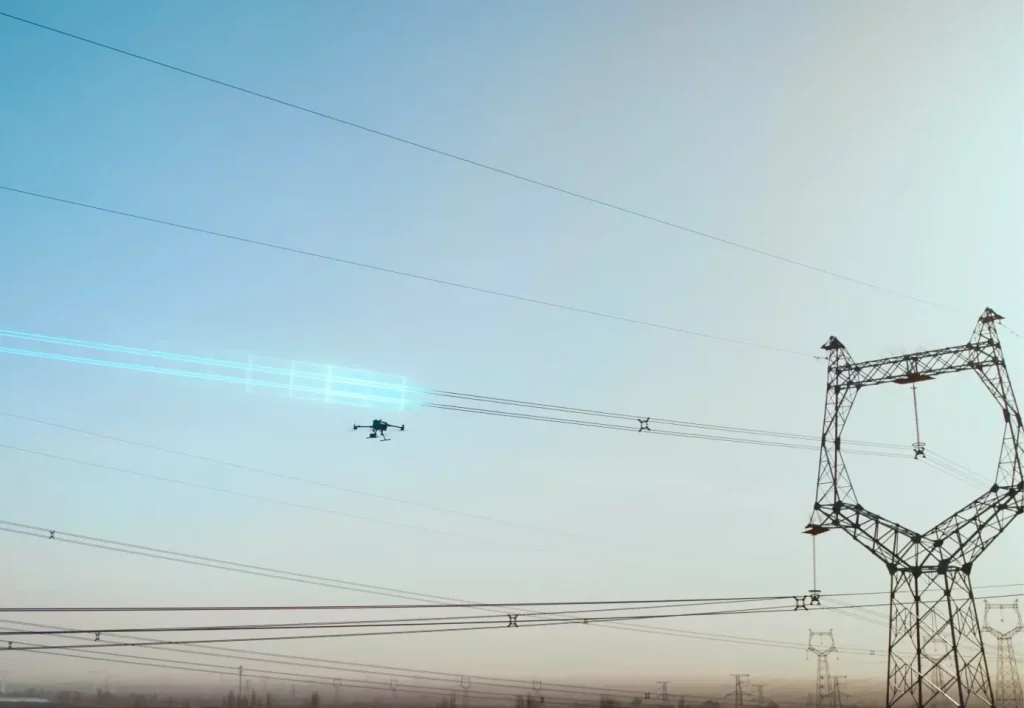

360° rotating LiDAR detects wires and thin objects for powerline-grade inspections

Six-direction mmWave radar ensures all-weather sensing in fog, dust, or darkness

Full-color fisheye vision sensors provide close-range awareness

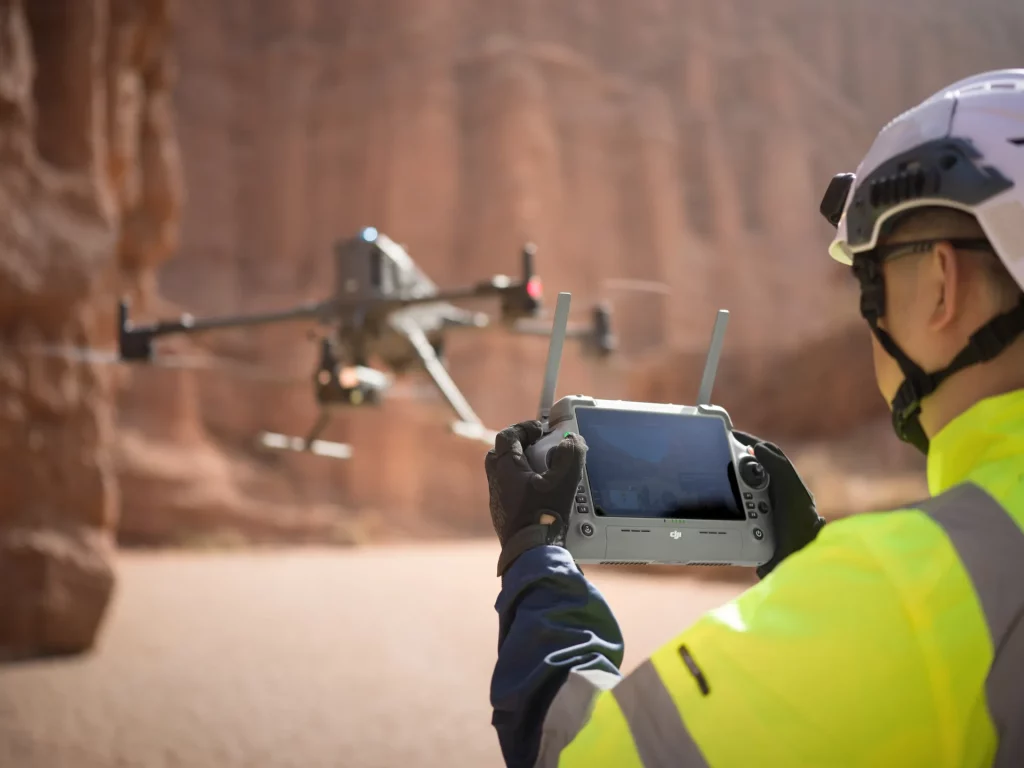

Extended & Secure Connectivity

O4 Enterprise transmission: 1080p triple-channel video, up to 40 km range (FCC)

Airborne Relay supports mission continuity in obstructions

Dual Cellular Dongle 2 support ensures LTE redundancy

Precision Positioning & Robust Utility

RTK-level positioning: 1 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical

Dual-antenna Airborne ADS‑B In receiver for airspace awareness up to 20 km

IP55 ingress protection, wind resistance up to 12 m/s, and rated for –20°C to +50°C operations

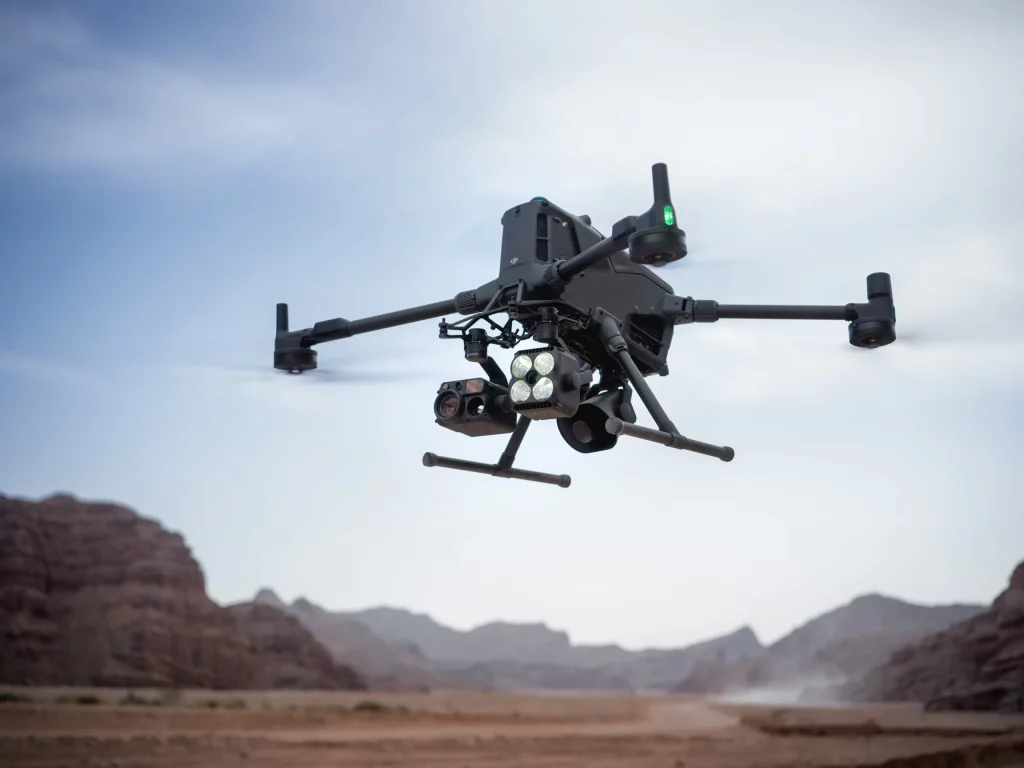

Versatile Payload & Intelligence Options

Compatible with DJI Zenmuse payloads: H30/H30T, L2 LiDAR, P1, S1 spotlight, V1 speaker, plus Manifold 3 onboard CPU and 3rd-party PSDKs

Supports AR-powered situational overlays and Smart Detection via DJI Pilot 2 & FlightHub 2 integration

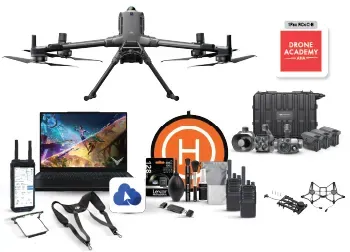

In-The-Box

Matrice 400 Aircraft x 1 (with propeller holder)
Carry Case x 1
RC Plus 2 (with DJI RC Plus 2 sub2G SDR Module) x 1
WB37 Intelligent Battery x 1
Remote Controller Strap and Bracket x 1
Landing Gear x 2
Propellers (pair) x 2
Propeller Washers and Screws x 6
Power Cable x 1
USB-C to USB-C Cable x 1
Screws and Tools x 4
Cleaning Tools x 1
Rubber Port Covers and Screws x 1
Gimbal Damper x 4

Specs Sheet

Aircraft

Category	Specification
Takeoff Weight (with propellers)	Without Batteries: 5020±20 gWith Batteries: 9740±40 gThe actual product weight may vary due to differences in batch materials and external factors.
Max Takeoff Weight	15.8 kg
Dimensions	Unfolded: 980×760×480 mm (L×W×H) (with landing gear)Folded: 490×490×480 mm (L×W×H) (with landing gear and gimbal)Maximum dimensions excluding propellers.Aircraft carrying case dimensions: 779×363×528 mm (L×W×H)
Max Payload	6 kgThe 6 kg payload is measured at the third gimbal connector under sea level conditions. Payload capacity decreases as altitude increases. For details, refer to the official user manual.
Propeller Size	25 inches
Diagonal Wheelbase	1070 mm
Max Ascent Speed	10 m/s
Max Descent Speed	8 m/s
Max Horizontal Speed (at sea level, no wind)	25 m/s
Max Takeoff Altitude	7000 m
Max Flight Time (no wind)	59 minutesMeasured with the aircraft flying forward at a constant speed of 10 m/s in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.
Max Hover Time (no wind)	53 minutesMeasured with the aircraft hovering in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
Max Flight Distance (no wind)	49 kmMeasured by the aircraft flying forward at a constant speed of 17 m/s in a windless environment at sea level, without external payloads, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.
Max Wind Speed Resistance	12 m/sMax wind speed resistance during takeoff and landing.
Max Yaw Angular Velocity	Yaw: 100°/s
Max Pitch Angle	35°
Operating Temperature	20° to 50° C (-4° to 122° F) (without solar radiation)
Global Navigation Satellite System (GNSS)	GPS + Galileo + BeiDou + GLONASS*GLONASS is supported only when the RTK module is enabled.Equipped with standard airborne ADS-B In receiver and dual antennas, supporting reception up to 20 km.
Hovering Accuracy Range (with moderate or no wind)	Vertical:±0.1 m (with vision positioning)±0.5 m (with satellite positioning)±0.1 m (with RTK positioning)Horizontal:±0.3 m (with vision positioning)±0.5 m (with satellite positioning)±0.1 m (with RTK positioning)
RTK GNSS Accuracy	RTK Fix:1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
RTK Heading	Supports RTK heading with an accuracy better than 2°
Airborne ADS-B In	Equipped with standard airborne ADS-B In receiver and dual antennas, supporting reception up to 20 km.
Internal Storage	N/A
Ports	USB-C Debug Port × 1: USB 2.0E-Port V2 × 4: At the lower part of the drone, with 120W single-port powerCellular Dongle 2 Interface × 2: On the underside of the drone
Propeller Model	2510F
Beacon	Built into the aircraft
Ingress Protection Rating	IP55The rating is not permanently effective and may decrease due to product wear and tear.

Takeoff Weight (with propellers)

Without Batteries: 5020±20 gWith Batteries: 9740±40 gThe actual product weight may vary due to differences in batch materials and external factors.

Max Takeoff Weight

15.8 kg

Dimensions

Unfolded: 980×760×480 mm (L×W×H) (with landing gear)Folded: 490×490×480 mm (L×W×H) (with landing gear and gimbal)Maximum dimensions excluding propellers.Aircraft carrying case dimensions: 779×363×528 mm (L×W×H)

Max Payload

6 kgThe 6 kg payload is measured at the third gimbal connector under sea level conditions. Payload capacity decreases as altitude increases. For details, refer to the official user manual.

Propeller Size

25 inches

Diagonal Wheelbase

1070 mm

Max Ascent Speed

10 m/s

Max Descent Speed

8 m/s

Max Horizontal Speed (at sea level, no wind)

25 m/s

Max Takeoff Altitude

7000 m

Max Flight Time (no wind)

59 minutesMeasured with the aircraft flying forward at a constant speed of 10 m/s in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.

Max Hover Time (no wind)

53 minutesMeasured with the aircraft hovering in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.

Max Flight Distance (no wind)

49 kmMeasured by the aircraft flying forward at a constant speed of 17 m/s in a windless environment at sea level, without external payloads, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.

Max Wind Speed Resistance

12 m/sMax wind speed resistance during takeoff and landing.

Max Yaw Angular Velocity

Yaw: 100°/s

Max Pitch Angle

35°

Operating Temperature

20° to 50° C (-4° to 122° F) (without solar radiation)

Global Navigation Satellite System (GNSS)

GPS + Galileo + BeiDou + GLONASS*GLONASS is supported only when the RTK module is enabled.Equipped with standard airborne ADS-B In receiver and dual antennas, supporting reception up to 20 km.

Hovering Accuracy Range (with moderate or no wind)

Vertical:±0.1 m (with vision positioning)±0.5 m (with satellite positioning)±0.1 m (with RTK positioning)Horizontal:±0.3 m (with vision positioning)±0.5 m (with satellite positioning)±0.1 m (with RTK positioning)

RTK GNSS Accuracy

RTK Fix:1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

RTK Heading

Supports RTK heading with an accuracy better than 2°

Airborne ADS-B In

Equipped with standard airborne ADS-B In receiver and dual antennas, supporting reception up to 20 km.

Internal Storage

N/A

Ports

USB-C Debug Port × 1: USB 2.0E-Port V2 × 4: At the lower part of the drone, with 120W single-port powerCellular Dongle 2 Interface × 2: On the underside of the drone

Propeller Model

2510F

Beacon

Built into the aircraft

Ingress Protection Rating

IP55The rating is not permanently effective and may decrease due to product wear and tear.

Gimbal

Category	Specification
Maximum Payload for Single Gimbal Connector	1400 gIf exceeds, the gimbal damper lifespan will decrease from 1000 hours to 400 hours.
Maximum Payload for Dual Gimbal Connector	950 g
Maximum Payload for Third Gimbal Connector	3 kg for quick-release port, 6 kg for screw lock fastening

Maximum Payload for Single Gimbal Connector

1400 gIf exceeds, the gimbal damper lifespan will decrease from 1000 hours to 400 hours.

Maximum Payload for Dual Gimbal Connector

950 g

Maximum Payload for Third Gimbal Connector

3 kg for quick-release port, 6 kg for screw lock fastening

Category	Specification
Sensing Type	Omnidirectional binocular vision system (surround view provided by full-color fisheye vision sensors)Horizontal rotating LiDAR, upper LiDAR and downward 3D infrared range sensorSix-direction mmWave radar
Forward	Measurement Range: 0.4-21 mDetection Range: 0.4-200 mField of View (FOV): 90° (horizontal), 90° (vertical)
Backward	Measurement Range: 0.4-21 mDetection Range: 0.4-200 mField of View (FOV): 90° (horizontal), 90° (vertical)
Lateral	Measurement Range: 0.6-21 mDetection Range: 0.5-200 mField of View (FOV): 90° (horizontal), 90° (vertical)
Downward	Measurement Range: 0.5-19 mThe FOV to the front and rear is 160° and 105° to the right and left.
Operating Environment	Forward, Backward, Left, Right, and Upward:Delicate texture on the surface, adequate light.Downward:The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.
Rotating LiDAR	Standard Measurement Range: 0.5-100 m @ 100,000 lux with 10% reflectivity targetMeasurement Range for Power Line: 35 m @ 30° @ 10,000 lux for 21.6 mm steel-core aluminum stranded wire with a relative body tilt angle of 30° to the left and rightField of View (FOV): 360° (horizontal), 58° (vertical)Point-Frequency: 520,000 points/secondLaser Wavelength: 905 nmEye Safety Level: Class 1 (IEC60825-1:2014), eye-safe
Upper LiDAR (3D ToF)	0.5-25 m at night (reflectivity > 10%)The FOV to the up and down is 60° and 60° to the right and left.
Downward 3D Infrared Range Sensor	Measurement Range: 0.3-8 m (reflectivity > 10%)The FOV to the front and rear is 60° and 60° to the right and left.
mmWave Radar	Measurement Range for Power Line:36 m for a 12.5mm steel-core aluminum stranded wire50 m for a 21.6mm steel-core aluminum stranded wireFOV: ± 45° (horizontal and vertical)The mmWave radar function is unavailable in some countries/regions.

Sensing Type

Omnidirectional binocular vision system (surround view provided by full-color fisheye vision sensors)Horizontal rotating LiDAR, upper LiDAR and downward 3D infrared range sensorSix-direction mmWave radar

Forward

Measurement Range: 0.4-21 mDetection Range: 0.4-200 mField of View (FOV): 90° (horizontal), 90° (vertical)

Backward

Measurement Range: 0.4-21 mDetection Range: 0.4-200 mField of View (FOV): 90° (horizontal), 90° (vertical)

Lateral

Measurement Range: 0.6-21 mDetection Range: 0.5-200 mField of View (FOV): 90° (horizontal), 90° (vertical)

Downward

Measurement Range: 0.5-19 mThe FOV to the front and rear is 160° and 105° to the right and left.

Operating Environment

Forward, Backward, Left, Right, and Upward:Delicate texture on the surface, adequate light.Downward:The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.

Rotating LiDAR

Standard Measurement Range: 0.5-100 m @ 100,000 lux with 10% reflectivity targetMeasurement Range for Power Line: 35 m @ 30° @ 10,000 lux for 21.6 mm steel-core aluminum stranded wire with a relative body tilt angle of 30° to the left and rightField of View (FOV): 360° (horizontal), 58° (vertical)Point-Frequency: 520,000 points/secondLaser Wavelength: 905 nmEye Safety Level: Class 1 (IEC60825-1:2014), eye-safe

Upper LiDAR (3D ToF)

0.5-25 m at night (reflectivity > 10%)The FOV to the up and down is 60° and 60° to the right and left.

Downward 3D Infrared Range Sensor

Measurement Range: 0.3-8 m (reflectivity > 10%)The FOV to the front and rear is 60° and 60° to the right and left.

mmWave Radar

Measurement Range for Power Line:36 m for a 12.5mm steel-core aluminum stranded wire50 m for a 21.6mm steel-core aluminum stranded wireFOV: ± 45° (horizontal and vertical)The mmWave radar function is unavailable in some countries/regions.

FPV Camera

Category	Specification
Resolution	1080p
Field of View (FOV)	DFOV: 150°HFOV: 139.6°VFOV: 95.3°
Frame Rate	30fps
Night Vision	Starlight Grade

Resolution

1080p

Field of View (FOV)

DFOV: 150°HFOV: 139.6°VFOV: 95.3°

Frame Rate

30fps

Night Vision

Starlight Grade

Video Transmission

Category	Specification
Video Transmission System	DJI O4 Enterprise Enhanced Video Transmission System
Live View Quality	Remote Controller: 3-channel 1080p/30fps
Operating Frequency and Transmitter Power (EIRP)	902-928 MHz: < 30 dBm (FCC), < 16 dBm (MIC)1.430-1.444 GHz: < 35 dBm (SRRC)2.4000-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)5.150-5.250 GHz: < 23 dBm (FCC/CE)5.725-5.850 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Max Transmission Distance (unobstructed, free of interference)	40 km (FCC)20 km (CE/SRRC/MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Max Transmission Distance (with interference)	Strong interference (dense buildings, residential areas, etc.): approx. 1.5-6 kmMedium interference (suburban counties, city parks, etc.): approx. 6-15 kmWeak interference (open spaces, remote areas, etc.): approx. 15-40 kmData is tested under FCC standard in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Max Download Speed	Standard Mode: 80Mbps DownlinkPlayback Download: < 25 MBpsSingle-Channel Bitrate: ≤ 12 MbpsThe above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
Antenna	WLAN Antenna × 8: 6 vertically polarized antennas and 2 horizontally polarized antennassub2G Antenna × 2: 2 vertically polarized antennas4G Antenna × 4Operating Mode: 2T4R
Others	Supports Dual Control Mode and 2-channel Cellular Dongle 2

Video Transmission System

DJI O4 Enterprise Enhanced Video Transmission System

Live View Quality

Remote Controller: 3-channel 1080p/30fps

Operating Frequency and Transmitter Power (EIRP)

902-928 MHz: < 30 dBm (FCC), < 16 dBm (MIC)1.430-1.444 GHz: < 35 dBm (SRRC)2.4000-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)5.150-5.250 GHz: < 23 dBm (FCC/CE)5.725-5.850 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Max Transmission Distance (unobstructed, free of interference)

40 km (FCC)20 km (CE/SRRC/MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.

Max Transmission Distance (with interference)

Strong interference (dense buildings, residential areas, etc.): approx. 1.5-6 kmMedium interference (suburban counties, city parks, etc.): approx. 6-15 kmWeak interference (open spaces, remote areas, etc.): approx. 15-40 kmData is tested under FCC standard in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.

Max Download Speed

Standard Mode: 80Mbps DownlinkPlayback Download: < 25 MBpsSingle-Channel Bitrate: ≤ 12 MbpsThe above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.

Antenna

WLAN Antenna × 8: 6 vertically polarized antennas and 2 horizontally polarized antennassub2G Antenna × 2: 2 vertically polarized antennas4G Antenna × 4Operating Mode: 2T4R

Others

Supports Dual Control Mode and 2-channel Cellular Dongle 2

Battery

Category	Specification
Model	TB100
Capacity	20254 mAh
Standard Voltage	48.23 V
Max Charging Voltage	54.6 V
Cell Type	Li-ion 13S
Energy	977 Wh
Weight	4720 ± 20 g
Charging Temperature	5° to 45° C (41° to 113° F)
Discharging Temperature	20° to 75° C (-4° to 122° F)
Battery Heating	Single Battery: SupportOnboard: SupportBattery Station: Support
Discharge Rate	4C
Max Charging Power	2C
Low-Temperature Charging	Supports low-temperature self-heating charging
Cycle Count	400

Model

TB100

Capacity

20254 mAh

Standard Voltage

48.23 V

Max Charging Voltage

54.6 V

Cell Type

Li-ion 13S

Energy

977 Wh

Weight

4720 ± 20 g

Charging Temperature

5° to 45° C (41° to 113° F)

Discharging Temperature

20° to 75° C (-4° to 122° F)

Battery Heating

Single Battery: SupportOnboard: SupportBattery Station: Support

Discharge Rate

Max Charging Power

Low-Temperature Charging

Supports low-temperature self-heating charging

Cycle Count

400

Intelligent Battery Station

Category	Specification
Model	BS100
Net Weight	11.8 kg
Dimensions	605×410×250 mm (L×W×H)
Supported Batteries	TB100 Intelligent Flight Battery, TB100C Tethered BatteryWB37 Battery
Operating Temperature	20° to 40° C (-4° to 104° F)
Input	100-240 V (AC), 50-60 Hz, 10 A
Output	USB-C：TB100 Battery Interface:100-110 V: Approx. 1185 W110-180 V: Approx.1474 W180-240 V: Approx. 2184 WWB37 Battery Interface:100-240 V: Approx. 52 WUSB-C:5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A
Number of Charging Channels	Three TB100 and two WB37 batteries
Charging Mode	Ready-to-Fly Mode 90%; Standard Mode 100%Supports Fast Charging Mode and Silent Mode
Charging Time	TB100/TB100C Battery From 0% to 100%:220 V: 45 minutes (Fast Charging Mode); 110 minutes (Silent Mode)110 V: 70 minutes (Fast Charging Mode); 110 minutes (Silent Mode)Charging time is measured in a test environment with a temperature of 25° C.

Model

BS100

Net Weight

11.8 kg

Dimensions

605×410×250 mm (L×W×H)

Supported Batteries

TB100 Intelligent Flight Battery, TB100C Tethered BatteryWB37 Battery

Operating Temperature

20° to 40° C (-4° to 104° F)

Input

100-240 V (AC), 50-60 Hz, 10 A

Output

USB-C：TB100 Battery Interface:100-110 V: Approx. 1185 W110-180 V: Approx.1474 W180-240 V: Approx. 2184 WWB37 Battery Interface:100-240 V: Approx. 52 WUSB-C:5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A

Number of Charging Channels

Three TB100 and two WB37 batteries

Charging Mode

Ready-to-Fly Mode 90%; Standard Mode 100%Supports Fast Charging Mode and Silent Mode

Charging Time

TB100/TB100C Battery From 0% to 100%:220 V: 45 minutes (Fast Charging Mode); 110 minutes (Silent Mode)110 V: 70 minutes (Fast Charging Mode); 110 minutes (Silent Mode)Charging time is measured in a test environment with a temperature of 25° C.

DJI RC Plus 2 Enterprise Enhanced

Category	Specification
Video Transmission System	DJI O4 Enterprise Enhanced Video Transmission System
Max Transmission Distance (unobstructed, free of interference)	40 km (FCC)20 km (CE/SRRC/MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Video Transmission Operating Frequency and Transmitter Power (EIRP)	902-928 MHz: < 30 dBm (FCC), < 16 dBm (MIC)2.400-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)5.150-5.250 GHz: < 23 dBm (FCC/CE)5.725-5.850 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Antenna	2T4R, 2.4GHz/5.8GHz multi-beam high-gain antennasub2G Module: 2T2R
Enhanced Transmission	Supports DJI Cellular Dongle 2
Wi-Fi Protocol	Wi-Fi Direct, Wireless Display, IEEE 802.11 a/b/n/ac/axSupports 2×2 MIMO Wi-Fi, dual-band simultaneous (DBS) support for dual MAC, with data rates up to 1774.5 Mbps (2×2 + 2×2 11ax dual-band simultaneous)
Wi-Fi Operating Frequency	2.4000-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz5.2 and 5.8GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
Wi-Fi Transmitter Power (EIRP)	2.4 GHz: < 26 dBm, < 20 dBm (CE/SRRC/MIC)5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)5.8 GHz: ＜ 23 dBm (FCC/SRRC), ＜ 14 dBm (CE)
Bluetooth Protocol	Bluetooth 5.2
Bluetooth Operating Frequency	2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)	＜ 10 dBm
Screen Resolution	1920 × 1200
Screen Size	7.02 inches
Screen Frame Rate	60fps
Brightness	1400 nits
Touchscreen Control	10-Point Multi-Touch
Built-in Battery	2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
External Battery	Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
Charging Type	Supports PD fast charging, with a maximum 20V/3.25A USB Type-C charger
Storage Capacity	RAM 8G + ROM 128G UFS + expandable storage via microSD card
Charging TimeCharging Time	2 hours for internal battery; 2 hours for internal plus external batteries.When remote controller is powered off and using a standard DJI charger.
Internal Battery Runtime	3.8 hours
External Battery Runtime	3.2 hours
Output Port	HDMI 1.4
Indicators	Status LED, battery level LED, connection status LED, tricolor light, brightness adjustable according to ambient light
Speaker	Supports buzzer
Audio	Array MIC
Operating Temperature	20° to 50° C (-4° to 122° F)
Storage Temperature	Within one month: -30° to 45° C (-22° to 140° F)One to three months: -30° to 35° C (-22° to 113° F)Three months to one year: -30° to 30° C (-22° to 86° F)
Charging Temperature	5° to 40° C (41° to 104° F)
Supported Aircraft Model	Matrice 400
Global Navigation Satellite System	GPS + Galileo + BeiDou
Dimensions	268×163×94.5 mm (L×W×H)Width including external antenna folded, thickness including handle and controller sticks.
Weight	1.15 kg (without external battery)
Model	TKPL 2
System Version	Android 11
External Interfaces	HDMI 1.4, SD 3.0, USB-C with OTG support, max 65W PD charging, USB-A with USB 2.0 support
Accessories	Strap/waist support

Video Transmission System

DJI O4 Enterprise Enhanced Video Transmission System

Max Transmission Distance (unobstructed, free of interference)

Video Transmission Operating Frequency and Transmitter Power (EIRP)

902-928 MHz: < 30 dBm (FCC), < 16 dBm (MIC)2.400-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)5.150-5.250 GHz: < 23 dBm (FCC/CE)5.725-5.850 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Antenna

2T4R, 2.4GHz/5.8GHz multi-beam high-gain antennasub2G Module: 2T2R

Enhanced Transmission

Supports DJI Cellular Dongle 2

Wi-Fi Protocol

Wi-Fi Direct, Wireless Display, IEEE 802.11 a/b/n/ac/axSupports 2×2 MIMO Wi-Fi, dual-band simultaneous (DBS) support for dual MAC, with data rates up to 1774.5 Mbps (2×2 + 2×2 11ax dual-band simultaneous)

Wi-Fi Operating Frequency

2.4000-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz5.2 and 5.8GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.

Wi-Fi Transmitter Power (EIRP)

2.4 GHz: < 26 dBm, < 20 dBm (CE/SRRC/MIC)5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)5.8 GHz: ＜ 23 dBm (FCC/SRRC), ＜ 14 dBm (CE)

Bluetooth Protocol

Bluetooth 5.2

Bluetooth Operating Frequency

2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

＜ 10 dBm

Screen Resolution

1920 × 1200

Screen Size

7.02 inches

Screen Frame Rate

60fps

Brightness

1400 nits

Touchscreen Control

10-Point Multi-Touch

Built-in Battery

2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh

External Battery

Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh

Charging Type

Supports PD fast charging, with a maximum 20V/3.25A USB Type-C charger

Storage Capacity

RAM 8G + ROM 128G UFS + expandable storage via microSD card

Charging TimeCharging Time

2 hours for internal battery; 2 hours for internal plus external batteries.When remote controller is powered off and using a standard DJI charger.

Internal Battery Runtime

3.8 hours

External Battery Runtime

3.2 hours

Output Port

HDMI 1.4

Indicators

Status LED, battery level LED, connection status LED, tricolor light, brightness adjustable according to ambient light

Speaker

Supports buzzer

Audio

Array MIC

Operating Temperature

20° to 50° C (-4° to 122° F)

Storage Temperature

Within one month: -30° to 45° C (-22° to 140° F)One to three months: -30° to 35° C (-22° to 113° F)Three months to one year: -30° to 30° C (-22° to 86° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Supported Aircraft Model

Matrice 400

Global Navigation Satellite System

GPS + Galileo + BeiDou

Dimensions

268×163×94.5 mm (L×W×H)Width including external antenna folded, thickness including handle and controller sticks.

Weight

1.15 kg (without external battery)

Model

TKPL 2

System Version

Android 11

External Interfaces

HDMI 1.4, SD 3.0, USB-C with OTG support, max 65W PD charging, USB-A with USB 2.0 support

Accessories

Strap/waist support

Bundles

Matrice 400 Basic Surveillance Package

Details

1 x Matrice 400
1 x BS100
1 X TB100
1 X M400 Care+
1 x Zenmuse H30T
1 x FlightHub 2 Enterprise Version 1 year
1 x AeroveneSkyScan
1 x Aonic Combo Accessories
1 x RC Plus 2 Strap & Waist support
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
1 x Illegear Processing Laptop

Price

RM 125,000

Matrice 400 Advance Surveillance Package

Details

1 x Matrice 400
1 x BS100
1 X TB100
1 X M400 Care+
1 x Zenmuse H30T
1 x Zenmuse S1
1 x Zenmuse V1
1 x FlightHub 2 Enterprise Version 1 year
1 x AeroveneSkyScan
1 x Aonic Combo Accessories
1 x RC Plus 2 Strap & Waist support
1 x Walkie Talkie Set
1 x 1 Day Equipment Training
1 x Illegear Processing Laptop

Price

RM 180,000

Matrice 400 LiDAR Package

Details

1 x Matrice 400
1 x BS100
3 x TB100
1 x WB37
1 x Aonic Care+
1 x Zenmuse L2
1 x DJI Terra Flagship Perpetual (Online)
1 x RC Plus 2 Strap & Waist support
1 x Aonic Combo Accessories
1 x RCoC-B 1 pax
1 x Ulefone Rugged Phone
1 x Illegear Processing Laptop
1 x Walkie Talkie Set
1 x RCoC-B
1 x 2 Day Equipment Training

Price

RM 115,000

Matrice 400 Photogrammetry Package

Details

1 x Matrice 400
1 x BS100
3 x TB100
1 x WB37
1 x Aonic Care+
1 x Zenmuse P1
1 x DJI Terra Flagship Perpetual (Online)
1 x RC Plus 2 Strap & Waist support
1 x Aonic Combo Accessories
1 x Ulefone Rugged Phone
1 x Illegear Processing Laptop
1 x Walkie Talkie Set
1 x RCoC-B
1 x 2 Day Equipment Training

Price

RM 100,000

Aonic Care

Premium Care Package
