DJI FlyCart 100

Next-Generation Heavy-Lift Aerial Delivery Drone

DJI FlyCart 100

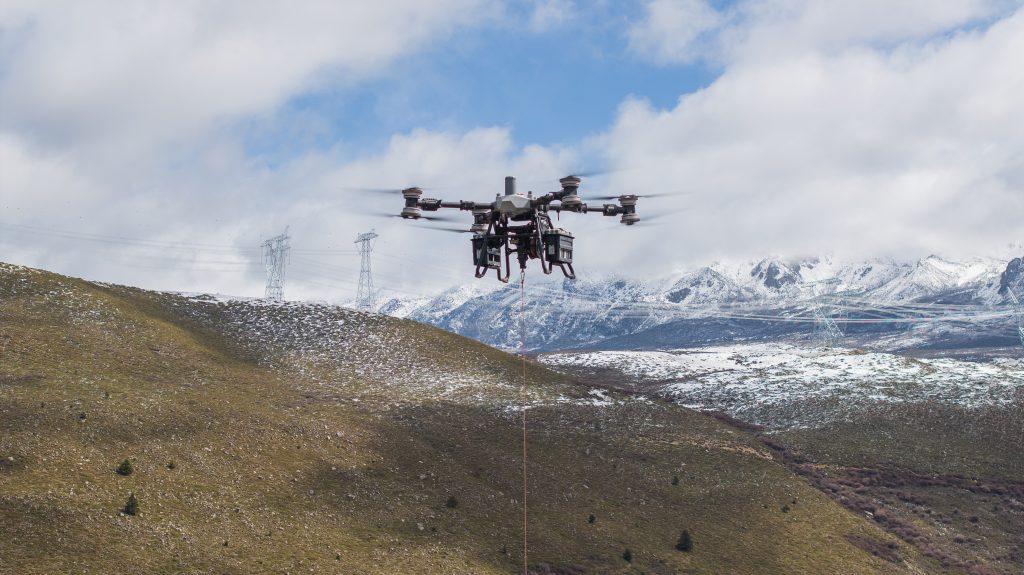

The DJI FlyCart 100 is DJI’s flagship heavy-lift delivery drone designed for industrial logistics, emergency response, and large-payload transport in challenging environments. With an impressive payload capacity of up to 80 kg in single-battery mode and 65 kg in dual-battery mode, FlyCart 100 expands aerial cargo capabilities for construction sites, disaster relief, remote operations, and beyond.

Built for reliability and endurance, it combines robust safety systems, advanced obstacle sensing, and flexible cargo delivery methods to meet enterprise demands with precision and efficiency.

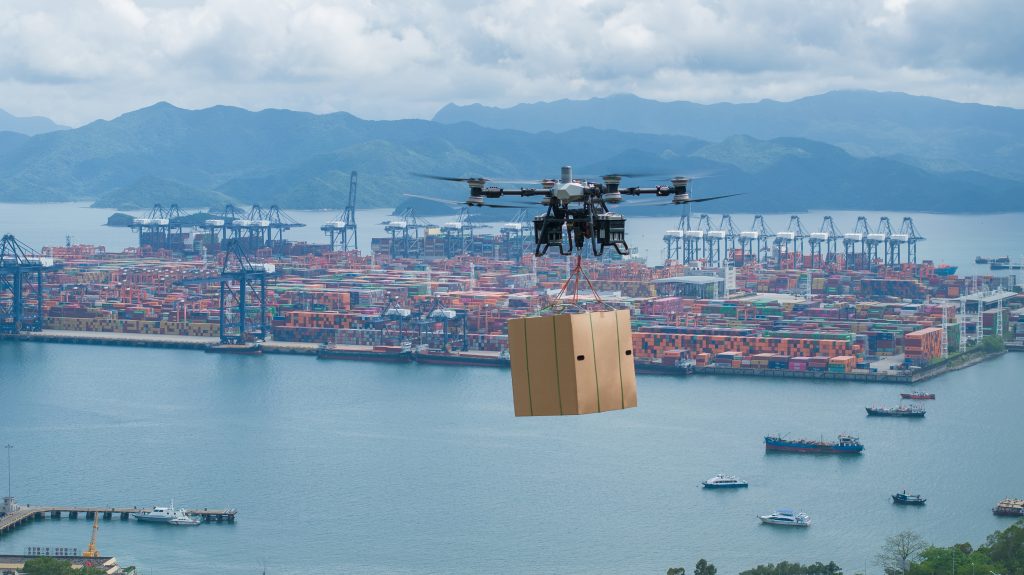

Industrial Heavy-Lift Cargo UAV for Logistics, Emergency and Remote Support

80 kg Max Payload Capacity Single battery
65 kg Max Payload Capacity Dual batteries
IP55 Durability Dust, Rain, and Wind Resistance
30 m Cable Flagship winch system
Hot-swappable Battery System
6 km (single)/12 km (dual) Loaded Long-range Flight Capability
26 km Unloaded Long-range Flight Capability
Key Features

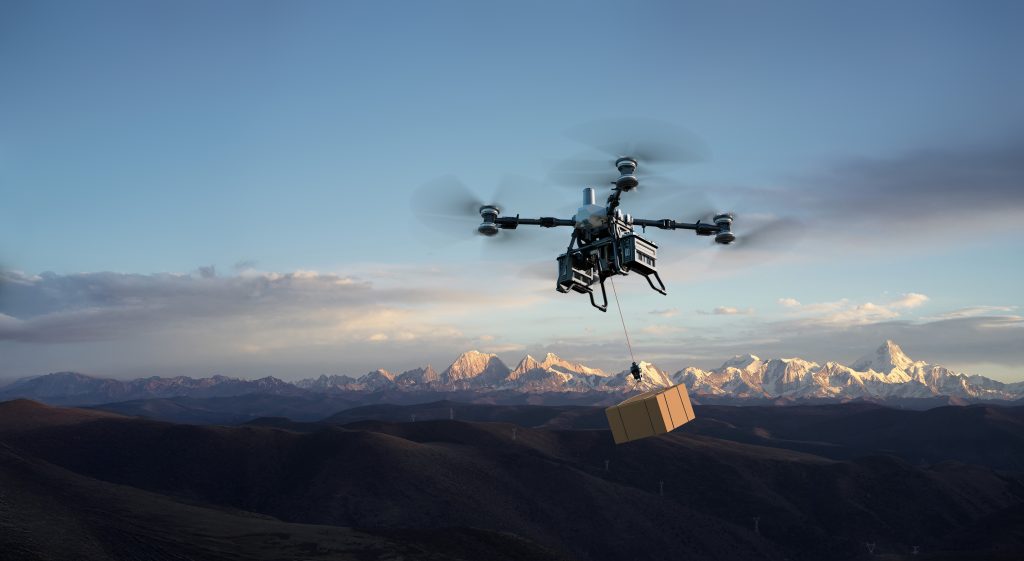

Heavy-Lift Cargo Performance

Up to 80 kg payload in single-battery configuration and 65 kg in dual-battery configuration for maximum lift.

Long-range flight capability: up to 6 km loaded (single), 12 km (dual), and up to 26 km unloaded for flexible mission planning.

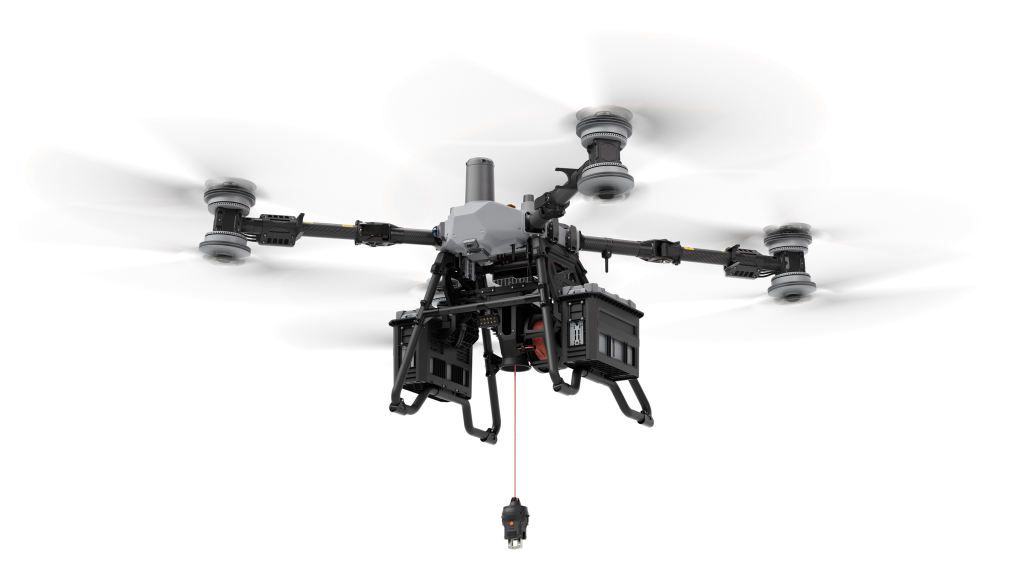

62-inch carbon-fiber propellers with coaxial 8-rotor thrust design for smooth, stable heavy-lift performance.

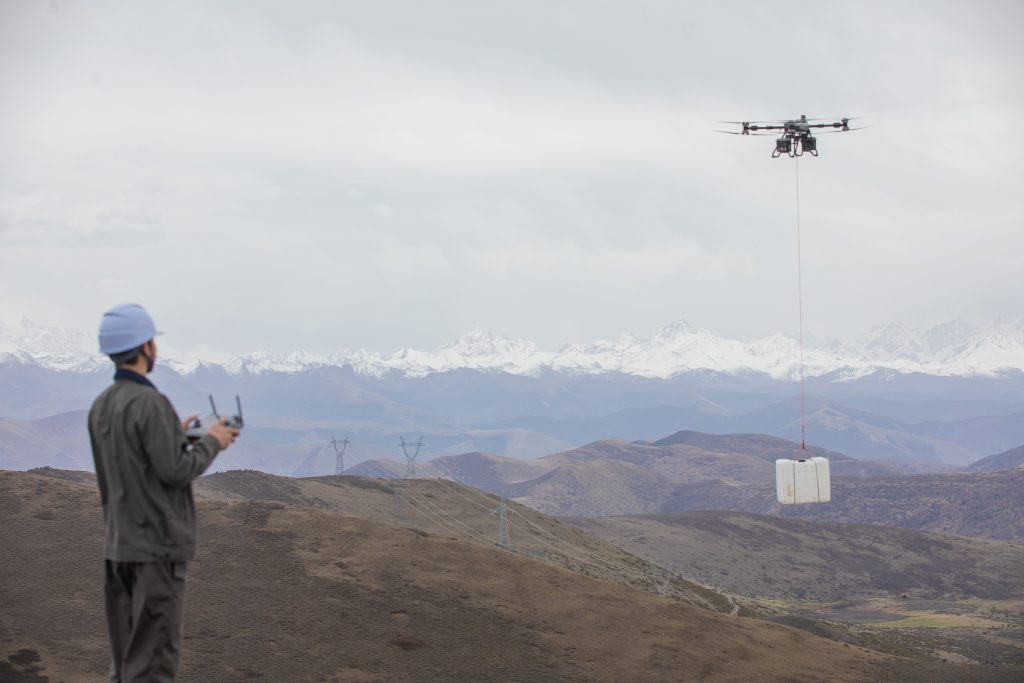

Precision Delivery Modes Flagship Winch System

Winch system offers both automatic and manual release and retrieval options, equipped with a rope length of 30m, it can maintain a retractable speed of 1.2 m/s with heavy loads, ensuring efficient and reliable operation.

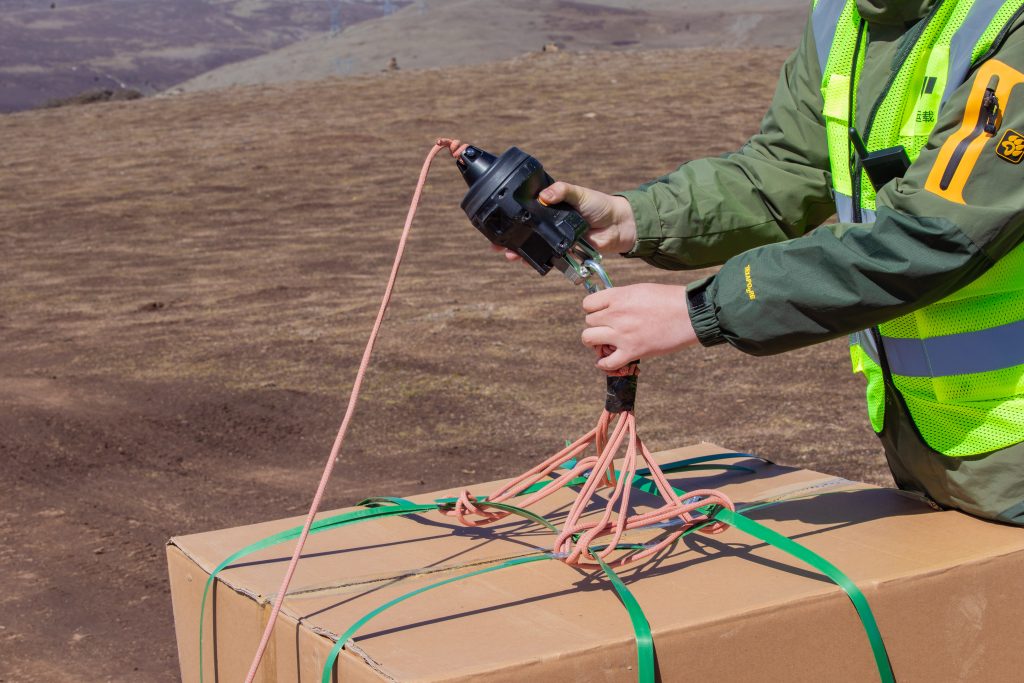

Cargo releases automatically upon touchdown, and the hook can be remotely controlled to open, ensuring safe and precise delivery.

The combination of a triaxial force sensor and intelligent algorithms enables minimize cargo swing and improve stability.

For extreme situations when hanging cargo gets trapped or tangled, discard the cable entirely with one click and let the drone free.

Advanced Safety & Sensing

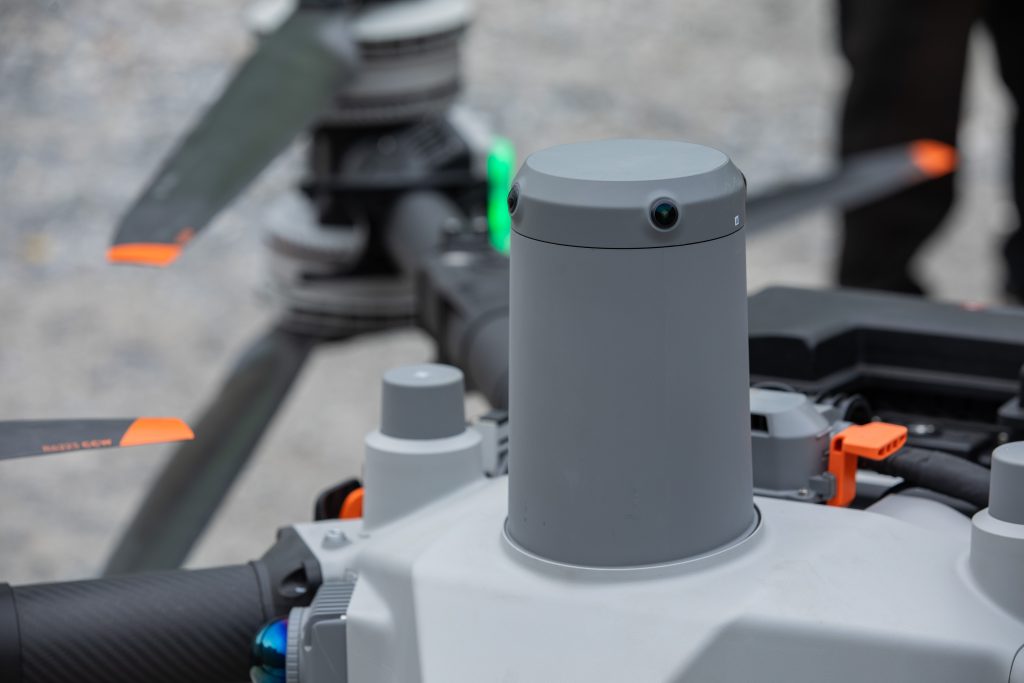

Multi-sensor intelligence: integrated LiDAR, millimeter-wave radar, and vision systems for obstacle detection and situational awareness.

Built-in emergency parachute system that slows descent in contingencies.

Redundant flight controllers and load sensors enhance reliability in mission-critical scenarios.

Enterprise Connectivity & Control

Supports DJI O4 Enterprise video transmission up to ~20 km for command and monitoring.

Compatible with RC Plus 2 controller featuring a high-brightness 7-inch screen and dual operator support (optional).

Seamless integration with DJI’s delivery management platform for route planning and fleet coordination.

Rugged & All-Weather Design

IP55 rating for dust, rain and wind resistance.

Stable performance in wind speeds up to ~12 m/s and altitudes up to ~6,000 m.

C12000 / D14000 chargers and battery incubators support ultra-fast charging and cold-weather performance.

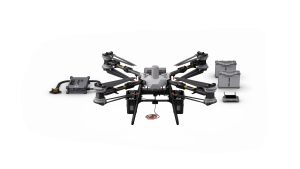

In-The-Box
  • DJI FlyCart 100
Specs Sheet
Aircraft
Category Specification
Weight (without payload) 55.2kg (with Lifting system)
60.2kg (with Winch system)
Max Takeoff Weight 170kg
Max Diagonal Wheelbase（motor to motor） 2330mm
Diagonal length (tip to tip) 3904mm
Dimensions (arms & propellers unfolded) 3220mm × 3224mm × 975mm
Overall dimensions arms folded, propellers unfolded) 1820mm × 1840mm × 975mm
Overall dimensions (arms & propellers unfolded) 1105 mm × 1265 mm × 975 mm
Folding Method Towards body
Loadable Battery Quantity Supports dual battery and single battery configurations
Max Flight Distance Under 149.9kg takeoff weight: dual battery 12 km, single battery 6 km
Max Hovering Endurance Under 149.9kg takeoff weight: dual battery 12 minutes, single battery 6 minutes
Max Flight Time Under 149.9kg takeoff weight: dual battery 14 minutes , single battery 7 minutes.
Operating Temperature -20℃ to 40℃
Ingress Protection Rating IP55
Hovering Accuracy (with strong GNSS signal) RTK positioning enabled:
± 10 cm (horizontal), ± 10 cm (vertical)

RTK positioning disabled:
± 60 cm (horizontal), ± 30 cm (vertical)
RTK/GNSS Operating Frequency GPS + Galileo + BeiDou + GLONASS
Max Ascent Speed 5 m/s
Max Descent Speed 5 m/s
Max Horizontal Speed 20 m/s
Max Flight Altitude（above the sea level) 6,000 m
Maximum Flight Altitude （relative to takeoff point) 1,500 m
Max Wind Speed Resistance 12 m/s
Weight (without payload)
55.2kg (with Lifting system)
60.2kg (with Winch system)
Max Takeoff Weight
170kg
Max Diagonal Wheelbase（motor to motor）
2330mm
Diagonal length (tip to tip)
3904mm
Dimensions (arms & propellers unfolded)
3220mm × 3224mm × 975mm
Overall dimensions arms folded, propellers unfolded)
1820mm × 1840mm × 975mm
Overall dimensions (arms & propellers unfolded)
1105 mm × 1265 mm × 975 mm
Folding Method
Towards body
Loadable Battery Quantity
Supports dual battery and single battery configurations
Max Flight Distance
Under 149.9kg takeoff weight: dual battery 12 km, single battery 6 km
Max Hovering Endurance
Under 149.9kg takeoff weight: dual battery 12 minutes, single battery 6 minutes
Max Flight Time
Under 149.9kg takeoff weight: dual battery 14 minutes , single battery 7 minutes.
Operating Temperature
-20℃ to 40℃
Ingress Protection Rating
IP55
Hovering Accuracy (with strong GNSS signal)
RTK positioning enabled:
± 10 cm (horizontal), ± 10 cm (vertical)

RTK positioning disabled:
± 60 cm (horizontal), ± 30 cm (vertical)
RTK/GNSS Operating Frequency
GPS + Galileo + BeiDou + GLONASS
Max Ascent Speed
5 m/s
Max Descent Speed
5 m/s
Max Horizontal Speed
20 m/s
Max Flight Altitude（above the sea level)
6,000 m
Maximum Flight Altitude （relative to takeoff point)
1,500 m
Max Wind Speed Resistance
12 m/s
Propulsion System
Category Specification
Stator Size 155 × 16 mm
Motor KV Value 60 rpm/V
Propeller Material Carbon Fiber Composite
Propeller Dimensions 62 inches（1574.8mm)
Propeller Type Dual-Blade Folded Propeller
Number of Rotors 8 pairs
Stator Size
155 × 16 mm
Motor KV Value
60 rpm/V
Propeller Material
Carbon Fiber Composite
Propeller Dimensions
62 inches（1574.8mm)
Propeller Type
Dual-Blade Folded Propeller
Number of Rotors
8 pairs
Safety System
Category Specification
Safety System Type Front Millimeter-Wave Radar
Rear Radar (Single Board)
Downward Radar (Single Board)
LiDAR
Quad-vision System
FPV
Millimeter-Wave Radar EIRP <20 dBm (NCC/MIC/KC/CE/FCC)
Operating Temperature -20° to 40° C (-4° to 104° F)
Operating Environment Requirements Adequate light and discernible surroundings
Operating Power Consumption LiDAR: 6.5 W
Front Radar: 18 W
Downward Radar: 5 W
Rear Radar: 5 W
Field of View (FOV) LiDAR: Vertical 272°, Horizontal 60°
Front Radar: Horizontal 360°, Vertical ±45°
Downward Radar: Left/Right ±12.5°, Front and Back ±22.5°
Rear Radar: Left and Right ±45°, Front/Back ±45°
Quad-vision SystemHorizontal 360°, Vertical 180°
FPV Camera: Horizontal ±86°, Vertical 108°
Measurement Range ≤ 60 m
Safety System Type
Front Millimeter-Wave Radar
Rear Radar (Single Board)
Downward Radar (Single Board)
LiDAR
Quad-vision System
FPV
Millimeter-Wave Radar EIRP
<20 dBm (NCC/MIC/KC/CE/FCC)
Operating Temperature
-20° to 40° C (-4° to 104° F)
Operating Environment Requirements
Adequate light and discernible surroundings
Operating Power Consumption
LiDAR: 6.5 W
Front Radar: 18 W
Downward Radar: 5 W
Rear Radar: 5 W
Field of View (FOV)
LiDAR: Vertical 272°, Horizontal 60°
Front Radar: Horizontal 360°, Vertical ±45°
Downward Radar: Left/Right ±12.5°, Front and Back ±22.5°
Rear Radar: Left and Right ±45°, Front/Back ±45°
Quad-vision SystemHorizontal 360°, Vertical 180°
FPV Camera: Horizontal ±86°, Vertical 108°
Measurement Range
≤ 60 m
DJI O4 Video Transmission
Category Specification
Max Transmission Distance 20 km (FCC)
10 km (CE)
12 km (SRRC)
10 km (MIC)
Operating Frequency 2.400 GHz to 2.4835 GHz
5.725 GHz to 5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Live View Quality 1080p/30fps
Antenna 4 Antennas, 2T4R
4G Enhanced Transmission Supported
Max Transmission Distance
20 km (FCC)
10 km (CE)
12 km (SRRC)
10 km (MIC)
Operating Frequency
2.400 GHz to 2.4835 GHz
5.725 GHz to 5.850 GHz
Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Live View Quality
1080p/30fps
Antenna
4 Antennas, 2T4R
4G Enhanced Transmission
Supported
Lighting
Category Specification
Illumination Direction Forward, Downward
Control mode Auto, Manual
Max illumination power 46 W（Standard)
Illumination Direction
Forward, Downward
Control mode
Auto, Manual
Max illumination power
46 W（Standard)
Parachute
Category Specification
Model E2MSF-100A
Touchdown speed ≤ 7 m/s
Parachute Shape Square
Material Nylon
Minimum Opening Height 100 m
Operating Temperature -20° to 40° C (-4° to 104° F)
Ingress Protection Rating IP55
Mainboard Power-off Battery Life ≥ 1 hour
Memory Card Capacity Independent Storage, real-time recording of each flight, capable of recording 10 flights.
Alarm method Buzzer alarm, and lighting alarm
Opening Method Manual Opening, Auto Opening
Model
E2MSF-100A
Touchdown speed
≤ 7 m/s
Parachute Shape
Square
Material
Nylon
Minimum Opening Height
100 m
Operating Temperature
-20° to 40° C (-4° to 104° F)
Ingress Protection Rating
IP55
Mainboard Power-off Battery Life
≥ 1 hour
Memory Card Capacity
Independent Storage, real-time recording of each flight, capable of recording 10 flights.
Alarm method
Buzzer alarm, and lighting alarm
Opening Method
Manual Opening, Auto Opening
Winch System
Category Specification
Model A2EWH-100A
Dimension 960 mm × 805 mm × 669 mm
Hook charge Method Wireless charge, Type-C charge
Hook Supply Power Time 10 hours
Cable Length 0-30 meters
Max Retraction Speed 1.2 m/s
Weighing function Supported
Hook opening and closing function Supports active control via APP or button
Emergency escape Mode Cable Discard Escape
Auto Blance Control Supported
Manual wheel control for retraction Supported
One-tap release and Retraction Supported
Intelligent Deceleration Protection Supported
Model
A2EWH-100A
Dimension
960 mm × 805 mm × 669 mm
Hook charge Method
Wireless charge, Type-C charge
Hook Supply Power Time
10 hours
Cable Length
0-30 meters
Max Retraction Speed
1.2 m/s
Weighing function
Supported
Hook opening and closing function
Supports active control via APP or button
Emergency escape Mode
Cable Discard Escape
Auto Blance Control
Supported
Manual wheel control for retraction
Supported
One-tap release and Retraction
Supported
Intelligent Deceleration Protection
Supported
Lifting System
Category Specification
Model A2EDL-100A
Dimensions 960 mm × 805 mm × 669 mm
Cable Length 10 meters
Emergency Escape Mode Cable Cut Escape
Auto Balance Control Supported
Weighing function Supported
Recommended Cable Length 10-15 meters
Model
A2EDL-100A
Dimensions
960 mm × 805 mm × 669 mm
Cable Length
10 meters
Emergency Escape Mode
Cable Cut Escape
Auto Balance Control
Supported
Weighing function
Supported
Recommended Cable Length
10-15 meters
DJI DB2160 Intelligent Flight Battery
Category Specification
Weight 14.7 kilograms
Capacity 41 Ah
Standard Voltage 52 V
Weight
14.7 kilograms
Capacity
41 Ah
Standard Voltage
52 V
Remote Controller
Category Specification
Model TKPL 2
App DJI Delivery App
Screen 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m²
Charging Environment Temperature 5° to 40° C (41° to 104° F)
Built-in Battery Life 3.8 hours
External Battery Life 3.2 hours
Charging Method Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.
Charging Time 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)
4G Enhanced Transmission Supported
RTK High-Precision Positioning System Module Supported
Operating Temperature -20° to 50° C (-4° to 122° F)
Dual Operator Mode Supported
Model
TKPL 2
App
DJI Delivery App
Screen
7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m²
Charging Environment Temperature
5° to 40° C (41° to 104° F)
Built-in Battery Life
3.8 hours
External Battery Life
3.2 hours
Charging Method
Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.
Charging Time
2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)
4G Enhanced Transmission
Supported
RTK High-Precision Positioning System Module
Supported
Operating Temperature
-20° to 50° C (-4° to 122° F)
Dual Operator Mode
Supported
SDK
Category Specification
PSDK Communication Interface Eport-Lite
PSDK Power Interface Supports 3000 W
PSDK Communication Interface
Eport-Lite
PSDK Power Interface
Supports 3000 W
C12000 Intelligent Power Supply
Category Specification
Charger Model CSX901-12000
Dimensions 456 mm × 291 mm × 107 mm
Weight 13.13 kg
Input Voltage Three-phase AC input: 175-520 V
Single-phase AC input: 200-264 V
Output Voltage 62 V
Rated Output Current 194 A
Rated Power 12,000 W (three-phase 380 V input)
3,000 W (single-phase 220 V input)
Charging Time 9 minutes
Protection Functions Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions
Operating Temperature 0° to 40° C (32° to 104° F)
Output Channels 1
Charger Model
CSX901-12000
Dimensions
456 mm × 291 mm × 107 mm
Weight
13.13 kg
Input Voltage
Three-phase AC input: 175-520 V
Single-phase AC input: 200-264 V
Output Voltage
62 V
Rated Output Current
194 A
Rated Power
12,000 W (three-phase 380 V input)
3,000 W (single-phase 220 V input)
Charging Time
9 minutes
Protection Functions
Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions
Operating Temperature
0° to 40° C (32° to 104° F)
Output Channels
1
D14000iE Multifunctional Inverter Generator
Category Specification
Output Channels 1. DC recharge output 42-61.6V/11500W
2. Air-cooled radiator charge 12V/6A
3. AC Output 220V/1500W
Charging Time 9 minutes
Fuel tank capacity 30L
Starting method One-button start
Operating Temperature 0° to 40° C (32° to 104° F)
Dimensions 757 mm × 704 mm × 677 mm
Weight 87±0.5 kg
Fuel type 92 octane gasoline or higher
Reference fuel consumption 500 mL/kWh
Engine Oil Capacity 1.3L
Engine Oil Type DJI Dedicated Engine Oil S10W-40
Output Channels
1. DC recharge output 42-61.6V/11500W
2. Air-cooled radiator charge 12V/6A
3. AC Output 220V/1500W
Charging Time
9 minutes
Fuel tank capacity
30L
Starting method
One-button start
Operating Temperature
0° to 40° C (32° to 104° F)
Dimensions
757 mm × 704 mm × 677 mm
Weight
87±0.5 kg
Fuel type
92 octane gasoline or higher
Reference fuel consumption
500 mL/kWh
Engine Oil Capacity
1.3L
Engine Oil Type
DJI Dedicated Engine Oil S10W-40
D-RTK 3 Multifunctional Station (Optional)
Category Specification
Dimensions Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
Weight Approximately 1.26 kg
Operating Frequency Relay Station Mode:
O4: 2.4 GHz/5.2 GHz/5.8 GHz
Base Station Mode:
O4: 2.4 GHz/5.8 GHz
Relay Station Range Enhancement

 Relay Station performance improvement:
Addresses severe obstructions (e.g., Buildings, mountains): 3 to 5 times performance improvement
Addresses minor obstructions (e.g., trees, glass): 1 to 3 times performance improvement
The relay station needs to be deployed in a high, unobstructed location free from interference.
Built-in battery operating Time (at room temperature) D-RTK 3 Multifunctional Station:
Relay Station: 4 hours
Base Station: 7 hours
Ingress Protection Rating D-RTK 3 Multifunctional Station: IP67
Positioning Accuracy Base Station Mode and Relay Station Mode

Base Station Positioning Error:
Single Point Accuracy (Uncalibrated):
Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS)

Satellite-based Differential Accuracy:
Convergence Time: 20 min
Horizontal: 30 cm (RMS)
Vertical: 40 cm (RMS)
Dimensions
Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
Weight
Approximately 1.26 kg
Operating Frequency
Relay Station Mode:
O4: 2.4 GHz/5.2 GHz/5.8 GHz
Base Station Mode:
O4: 2.4 GHz/5.8 GHz
Relay Station Range Enhancement

Relay Station performance improvement:
Addresses severe obstructions (e.g., Buildings, mountains): 3 to 5 times performance improvement
Addresses minor obstructions (e.g., trees, glass): 1 to 3 times performance improvement
The relay station needs to be deployed in a high, unobstructed location free from interference.
Built-in battery operating Time (at room temperature)
D-RTK 3 Multifunctional Station:
Relay Station: 4 hours
Base Station: 7 hours
Ingress Protection Rating
D-RTK 3 Multifunctional Station: IP67
Positioning Accuracy
Base Station Mode and Relay Station Mode

Base Station Positioning Error:
Single Point Accuracy (Uncalibrated):
Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS)

Satellite-based Differential Accuracy:
Convergence Time: 20 min
Horizontal: 30 cm (RMS)
Vertical: 40 cm (RMS)
DJI Battery Incubator(Optional)
Category Specification
Operating Temperature -20° to 40° C (-4° to 104° F)
Operating Temperature
-20° to 40° C (-4° to 104° F)

Get In Touch

Have questions? Our drone experts are here to help
