Mist Nex 20

Heavy-Duty Spraying for High-Volume Farming

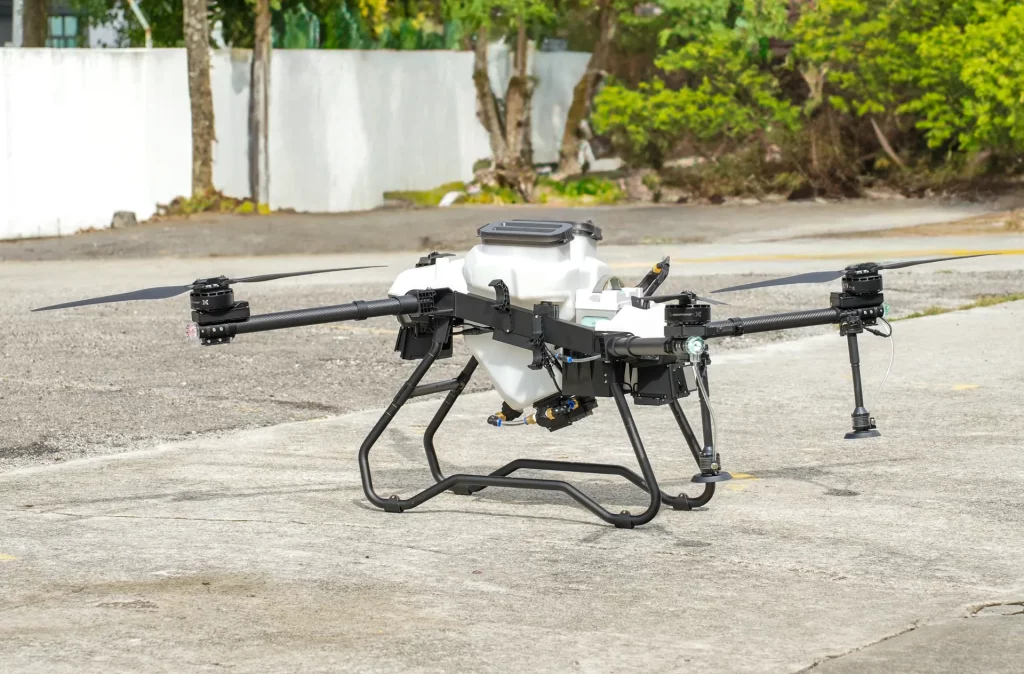

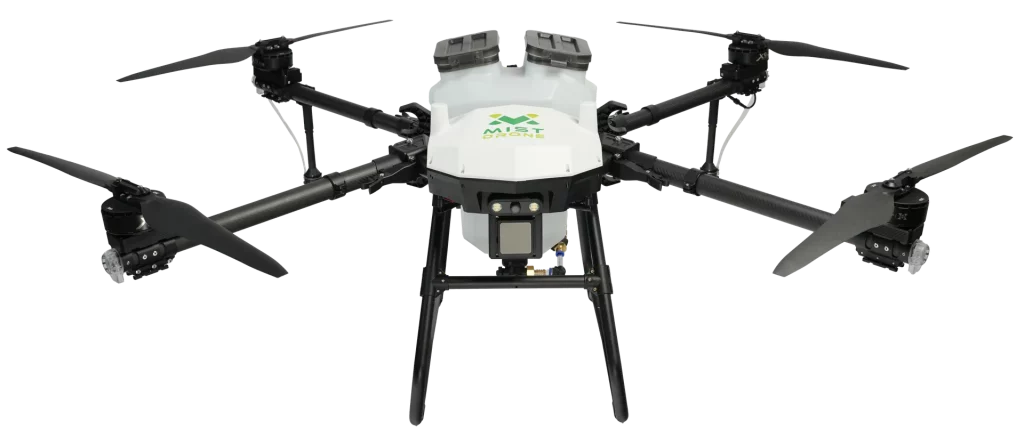

The Mist Nex 20 is a robust agricultural drone designed for large-scale spraying and spreading operations. With a 20L tank, powerful pump, and dual obstacle avoidance sensors, it offers a dependable solution for plantations, paddy fields, and commercial farms seeking to reduce labour costs and increase application efficiency.

Built with a foldable quadcopter frame and a powerful 14S power system, the Mist Nex 20 supports both spraying (20L) and spreading (33L) configurations (spreader set sold separately). Its intelligent flight system includes terrain following, obstacle avoidance (front & rear), and a smart remote with a 5.5” FHD display for real-time camera viewing and mission control.

Compact Spraying Power

20L Spray Tank

Optional 33L Spreader Tank

14S Smart Battery AS150U

Max 10-min Flight Time (Loaded)

10m/s Flight Speed

Brushless Pump

Obstacle Avoidance Front & Rear

Terrain Follow

5.5” FHD Display Remote

Customizable Spray Config

Key Features

Large Tank Capacity with Precision Control

20L Spray Tank

Suitable for large acreage spraying with reduced refill frequency.

Optional 33L Spreader Tank

Upgrade to the Spreader System V2.3 for dry fertiliser, seed, or pellet distribution. (Sold separately)

Brushless Pump with 4L/min Flow Rate

Ensures high-volume, consistent spraying for wide area coverage.

Customizable Spray Setup

Supports flexible nozzle configurations to match crop type and application needs.

Smarter Flights, Safer Operation

Terrain Following

Adjusts altitude automatically to match ground contours, ensuring even spray height.

Front & Rear Obstacle Avoidance

Dual-sensor setup improves safety during autonomous and manual flights.

Built-In FPV Camera with Spotlight

Enhances visibility for remote operations, especially at dawn/dusk or under canopy.

Reliable After-Sales Support

1-Year Warranty

Reduce downtime with full coverage and preventive service support.

Operator Training

Learn both theory and hands-on flying techniques to ensure safe, effective usage.

3S Centres Across Southeast Asia

Access fast servicing, expert support, and the largest spare parts inventory for agricultural drones in Malaysia.

In-The-Box

Mist Nex 20
H12 Remote Controller
14s 20000mAh Smart Battery

Specs Sheet

Flight System

Category	Specification
Frame Configuration	Quad Copter
Number of Motors	4
Motor Model	Hobbywing X9 Plus
Motor KV	100 KV
Motor Size	96 x 20 mm
Propeller Model	Hobbywing 36190
Propeller Size	36 Inch
Flight Speed Limit	10 m/s (36 km/h)
Wind Resistance	4 m/s (14 km/h)
Maximum Flying Weight	42.0 kg
Flight Endurance	10 minutes (loaded)
Empty Load Flight Time	15 minutes
Expanded Dimensions (mm)	1285 x 1124 x 707
Folded Dimensions (mm)	793 x 505 x 707

Frame Configuration

Quad Copter

Number of Motors

Motor Model

Hobbywing X9 Plus

Motor KV

100 KV

Motor Size

96 x 20 mm

Propeller Model

Hobbywing 36190

Propeller Size

36 Inch

Flight Speed Limit

10 m/s (36 km/h)

Wind Resistance

4 m/s (14 km/h)

Maximum Flying Weight

42.0 kg

Flight Endurance

10 minutes (loaded)

Empty Load Flight Time

15 minutes

Expanded Dimensions (mm)

1285 x 1124 x 707

Folded Dimensions (mm)

793 x 505 x 707

Spraying System

Category	Specification
Tank Capacity	20 litres
Swappable Tank	Yes, with 30 L Spreader Tank.
Pump Type	Brushless
Spray Nozzle	Centrifugal
Max Flow Rate	8 L/min
Terrain Follow	Yes
Obstacle Avoidance	Yes
FPV Camera	Fixed SD Camera with Spotlight

Tank Capacity

20 litres

Swappable Tank

Yes, with 30 L Spreader Tank.

Pump Type

Brushless

Spray Nozzle

Centrifugal

Max Flow Rate

8 L/min

Terrain Follow

Yes

Obstacle Avoidance

Yes

FPV Camera

Fixed SD Camera with Spotlight

Power System

Category	Specification
Recommended Battery	14S LiPo Battery (AS150U)

Recommended Battery

14S LiPo Battery (AS150U)

Remote Controller

Category	Specification
Model	Skydroid H12
Max Radio Range	5 km (line of sight)
Remote Display	5.5” FHD
App Integration	Yes, via built-in 5.5” FHD display

Model

Skydroid H12

Max Radio Range

5 km (line of sight)

Remote Display

5.5” FHD

App Integration

Yes, via built-in 5.5” FHD display

Battery – Enrich Power 14s

Category	Specification
Type	14S LiPo
Nominal Capacity	22,000 mAh
Typical Voltage	51.8 V
Size (L×W×H)	238 x 174 x 117 mm
Weight (±100g)	7200 g
Power	1139.6 Wh
Max. Continuous Discharge Current	100 A
Max. Fast Charging Current	66 A
Max. Charging Voltage	58.8 V
Recommended Charging Temp	+10°C to +45°C
Recommended Discharging Temp	+10°C to +60°C
1st Level Fail-Safe (Landing Voltage)	50.4 V
2nd Level Fail-Safe (Forced Landing)	49.7 V

Type

14S LiPo

Nominal Capacity

22,000 mAh

Typical Voltage

51.8 V

Size (L×W×H)

238 x 174 x 117 mm

Weight (±100g)

7200 g

Power

1139.6 Wh

Max. Continuous Discharge Current

100 A

Max. Fast Charging Current

66 A

Max. Charging Voltage

58.8 V

Recommended Charging Temp

+10°C to +45°C

Recommended Discharging Temp

+10°C to +60°C

1st Level Fail-Safe (Landing Voltage)
