DJI Matrice 30 Series

All-Terrain. All-Weather. All-In-One.

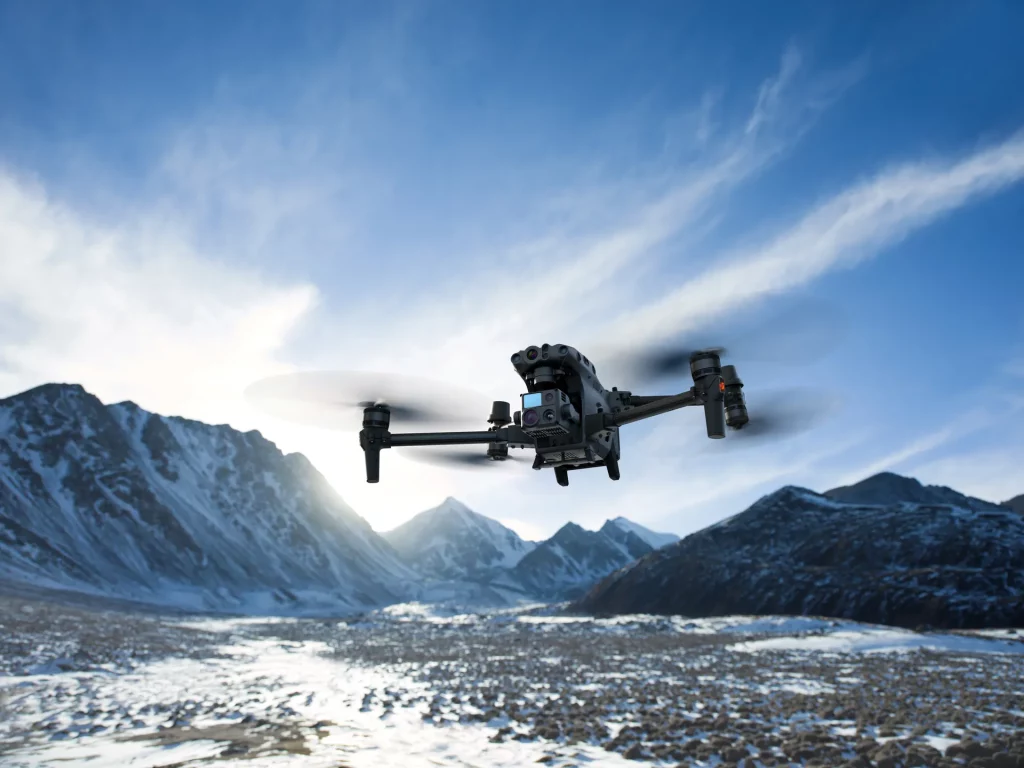

The DJI Matrice 30 Series brings together power, performance, and portability in one rugged drone system—engineered for mission-ready reliability in the toughest environments. With IP55 weather sealing, up to 41 minutes of flight time, and integrated multi-sensor payloads, the M30 and M30T deliver uncompromised performance for public safety, inspection, mapping, and emergency response operations.

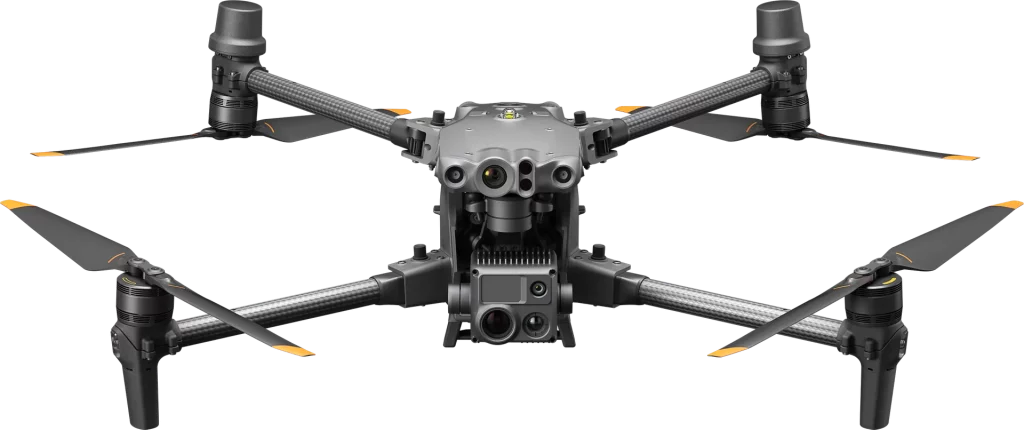

DJI Matrice 30 / M30T

Designed for frontline teams, the M30 offers visual, zoom, laser rangefinder, and—on the M30T—thermal capabilities, all in a compact, foldable airframe. Whether you’re monitoring infrastructure, assessing hazards, or deploying during emergencies, the M30 Series enables faster, smarter decision-making from above.

One Platform. Unlimited Possibilities.

IP55 Rugged Airframe

41-min Max Flight Time

Zoom, Wide, Laser (M30) + Thermal (M30T)

OcuSync 3 Enterprise + LTE Backup

FlightHub 2 & Dock Compatible

Key Features

Compact. Foldable. Built for Harsh Conditions.

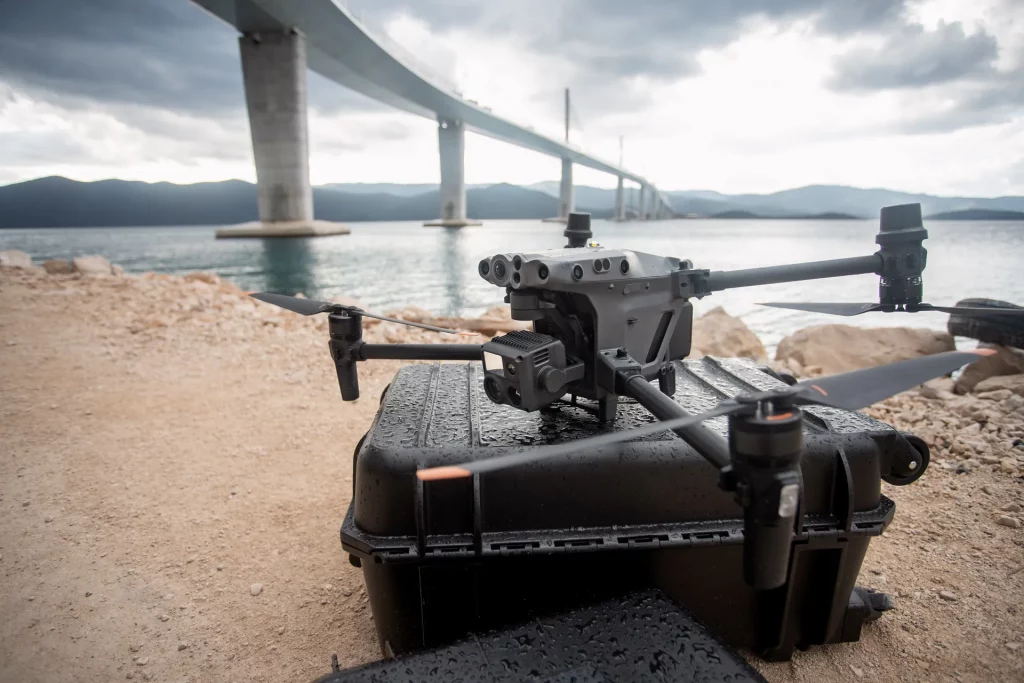

IP55 Weather Resistance

Operates reliably in rain, wind, dust, and extreme temperatures from –20°C to +50°C.

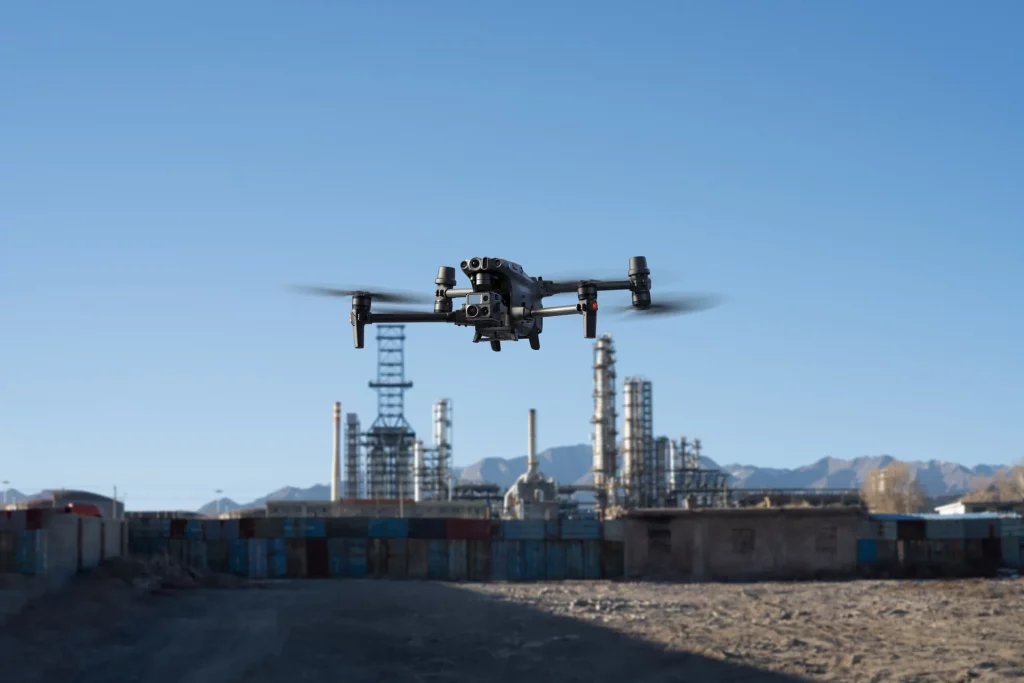

Long Flight Time, Extended Reach

Up to 41 minutes of flight time and 25 km transmission range (FCC) ensure large-area coverage.

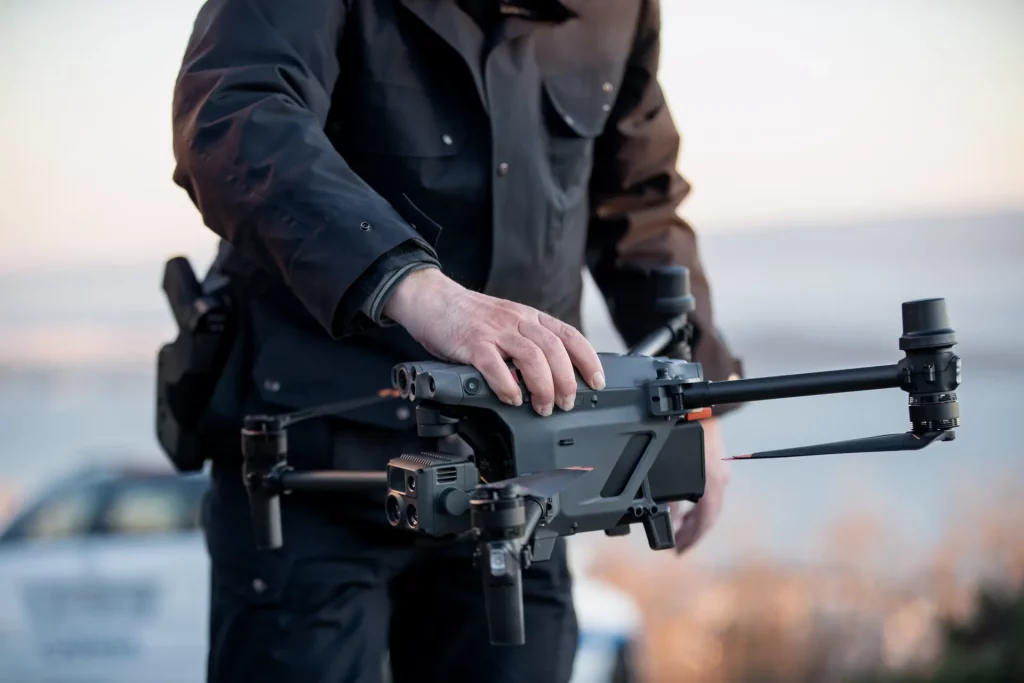

Rugged Portability

Foldable, backpack-friendly design with integrated payload means fast deployment with fewer parts.

Integrated Multi-Sensor Payload

Zoom Camera: 1/2” CMOS sensor, 48MP, 5–16× optical zoom, 200× max digital zoom

Wide Camera: 1/2” CMOS sensor, 12MP, 84° FOV, 24mm equivalent

Laser Rangefinder: Accurately detects targets from 3–1200 m

Thermal Camera (M30T): 640×512 px, 30Hz, 9.1mm focal length, ±2°C accuracy

Intelligent Flight & Safety Systems

Six-Directional Obstacle Sensing

Vision sensors and ToF on all sides keep your flights safe and precise.

ADS-B Receiver

Detect nearby crewed aircraft and avoid airspace conflicts.

Smart RTH, Waypoints & AI Spot Check

Advanced flight automation for safer, repeatable operations.

Powerful Connectivity & Data Integration

OcuSync 3 Enterprise Transmission

4-antenna system supports triple-channel 1080p live feed up to 25 km (FCC).

LTE Module Support

Backup network for remote deployment and redundant comms.

FlightHub 2 Ready

Real-time mission sync, remote control handover, live annotation, and centralized data access.

In-The-Box

DJI M30 Series drone x 1
DJI RC Plus Remote Controller x 1
Carrying Case x 1
BS30 Battery Station x 1
1671 Propeller (CW) x 1
1671 Propeller (CCW) x 1
USB-C to USB-C Cable x 1
Screws and tools x 1

Specs Sheet

General Dimensions

Category	Specification
Dimensions (folded)	365×215×195 mm (L×W×H)
Diagonal Wheelbase	668 mm
Weight (incl. two batteries)	3770 ± 10 g
Max Takeoff Weight	4000 g
Operation Frequency	2.4000-2.4835 GHz5.725-5.850 GHz
Transmitter Power (EIRP)	2.4 GHz:<33 dBm (FCC)<20 dBm (CE/SRRC/MIC)5.8 GHz:<33 dBm (FCC/SRRC)<14 dBm (CE)
Hovering Accuracy (windless or breezy)	Vertical:±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal:±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK
RTK Positioning Accuracy (fixed RTK enabled)	1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical)
Max Angular Velocity	Pitch: 150°/sec. Yaw: 100°/sec.
Max Tilt Angle	35° (N-mode and Forward Vision System enabled: 25°)
Max Ascent/Descent Speed	6 m/s, 5 m/s
Max Tilt Descent Speed	7 m/s
Max Horizontal Speed	23 m/s
Max Service Ceiling Above Sea Level (without other payload	5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers)
Max Wind Resistance	12 m/s
Max Hover Time	36 min
Max Flight Time	41 min
Motor Model	3511
Propeller Model	16711676 High Altitude (not included)
Ingress Protection Rating	IP55
GNSS	GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)
Operating Temperature	-20° to 50° C (-4° to 122° F)

Dimensions (folded)

365×215×195 mm (L×W×H)

Diagonal Wheelbase

668 mm

Weight (incl. two batteries)

3770 ± 10 g

Max Takeoff Weight

4000 g

Operation Frequency

2.4000-2.4835 GHz5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:<33 dBm (FCC)<20 dBm (CE/SRRC/MIC)5.8 GHz:<33 dBm (FCC/SRRC)<14 dBm (CE)

Hovering Accuracy (windless or breezy)

Vertical:±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)

Horizontal:±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK

RTK Positioning Accuracy (fixed RTK enabled)

1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)

Max Angular Velocity

Pitch: 150°/sec.
Yaw: 100°/sec.

Max Tilt Angle

35° (N-mode and Forward Vision System enabled: 25°)

Max Ascent/Descent Speed

6 m/s, 5 m/s

Max Tilt Descent Speed

7 m/s

Max Horizontal Speed

23 m/s

Max Service Ceiling Above Sea Level (without other payload

5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)

Max Wind Resistance

12 m/s

Max Hover Time

36 min

Max Flight Time

41 min

Motor Model

3511

Propeller Model

16711676 High Altitude (not included)

Ingress Protection Rating

IP55

GNSS

GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)

Operating Temperature

-20° to 50° C (-4° to 122° F)

Gimbal

Category	Specification
Angular Vibration Range	±0.01°
Controllable Range	Pan: ±90° Tilt: -120° to +45°
Mechanical Range	Pan: ±105° Tilt: -135° to +60° Roll: ±45°

Angular Vibration Range

±0.01°

Controllable Range

Pan: ±90°
Tilt: -120° to +45°

Mechanical Range

Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°

Zoom Camera

Category	Specification
Sensor	1/2 CMOS
Lens	Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to ∞

Sensor

1/2 CMOS

Lens

Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞

Wide Camera

Category	Specification
Sensor	1/2 CMOS
Lens	DFOV: 84°Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞

Sensor

1/2 CMOS

Lens

DFOV: 84°Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Thermal Camera

Category	Specification
Thermal Imager	Uncooled VOx Microbolometer
Lens	DFOV: 64° Focal length: 9.1 mm (equivalent: 40 mm) Aperture: f/1.0 Focus: 5 m to ∞
Infrared Temperature Measurement Accuracy[4]	±2°C or ±2%(using the larger value)
Video Resolution	Infrared Image Super-resolution Mode: 1280 x 1024 Normal Mode: 640 x 512
Photo Size	Infrared Image Super-resolution Mode: 1280 x 1024 Normal Mode: 640 x 512

Thermal Imager

Uncooled VOx Microbolometer

Lens

DFOV: 64°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Infrared Temperature Measurement Accuracy[4]

±2°C or ±2%(using the larger value)

Video Resolution

Infrared Image Super-resolution Mode: 1280 x 1024
Normal Mode: 640 x 512

Photo Size

Infrared Image Super-resolution Mode: 1280 x 1024
Normal Mode: 640 x 512

FPV Camera

Category	Specification
Resolution	1920×1080
DFOV	161°
Frame Rate	30 fps

Resolution

1920×1080

DFOV

161°

Frame Rate

30 fps

Laser Module

Category	Specification
Wavelength	905 nm
Max Laser Power	3.5 mW
Single Pulse Width	6 ns
Measurement Accuracy	± (0.2 m + D×0.15%) D is the distance to a vertical surface
Measuring Range	3-1,200 m (0.5×12 m vertical surface with 20% reflectivity

Wavelength

905 nm

Max Laser Power

3.5 mW

Single Pulse Width

6 ns

Measurement Accuracy

± (0.2 m + D×0.15%) D is the distance to a vertical surface

Measuring Range

3-1,200 m (0.5×12 m vertical surface with 20% reflectivity

Vision Systems

Category	Specification
Obstacle Sensing Range	Forward: 0.6-38 m Upward/Downward/Backward/Sideward: 0.5-33 m
FOV	65° (H), 50° (V)
Operating Environment	Surfaces with clear patterns and adequate lighting (> 15 lux)

Obstacle Sensing Range

Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m

FOV

65° (H), 50° (V)

Operating Environment

Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

Category	Specification
Obstacle Sensing Range	0.1 to 10 m
FOV	30°
Operating Environment	Large, diffuse, and reflective obstacles (reflectivity >10%)

Obstacle Sensing Range

0.1 to 10 m

FOV

30°

Operating Environment

Large, diffuse, and reflective obstacles (reflectivity >10%)

Auxiliary Lights

Category	Specification
Effective Illumination Distance	5 m
Illumination Type	60 Hz, solid glow

Effective Illumination Distance

5 m

Illumination Type

60 Hz, solid glow

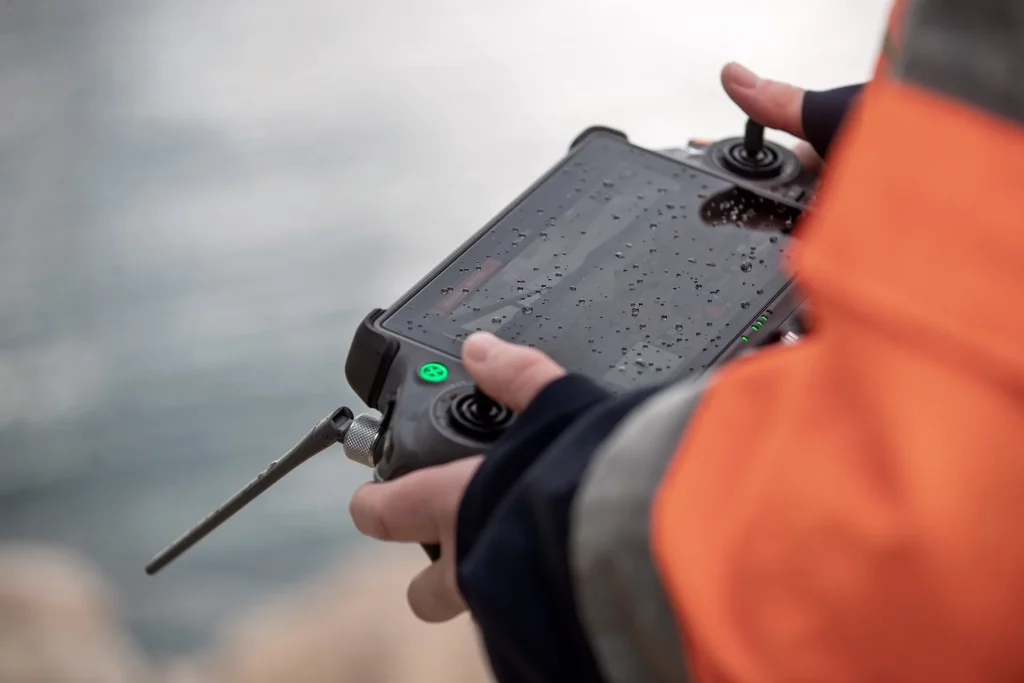

Remote Controller

Category	Specification
Screen	7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Internal Battery	Type: Li-ion (6500 mAh @ 7.2 V) Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) Charge Time: 2 hours Chemical System: LiNiCoAIO2
External Battery (WB37 Intelligent Battery)	Capacity: 4920 mAh Voltage: 7.6 V Battery Type: Li ion Energy: 37.39 Wh Chemical System: LiCoO2
Operating Time	Internal Battery: Approx. 3 hours 18 min Internal Battery + External Battery: Approx. 6 hours
Ingress Protection Rating	IP54
GNSS	GPS+Galileo+BeiDou
Operating Temperature	-20° to 50° C (-4° to 122° F)

Screen

7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

Internal Battery

Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2

External Battery (WB37 Intelligent Battery)

Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li ion
Energy: 37.39 Wh
Chemical System: LiCoO2

Operating Time

Internal Battery: Approx. 3 hours 18 min
Internal Battery + External Battery: Approx. 6 hours

Ingress Protection Rating

IP54

GNSS

GPS+Galileo+BeiDou

Operating Temperature

-20° to 50° C (-4° to 122° F)

O3 Enterprise

Category	Specification
Operating Frequency	2.4000-2.4835 GHz5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference)	2.4000-2.4835 GHz:15 km (FCC)8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference)	Strong Interference (urban landscape, limited line of sight, many competing signals):1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban landscape, open line of sight, some competing signals):3-9 km (FCC)3-6 km (CE/SRRC/MIC) Weak Interference (open landscape abundant line of sight, few competing signals):9-15 km (FCC)6-8 km (CE/SRRC/MIC)
Transmitter Power (EIRP)	2.4 GHz:<33 dBm (FCC)<20 dBm (CE/SRRC/MIC) 5.8 GHz:<33 dBm (FCC)<14 dBm (CE)<23 dBm (SRRC)

Operating Frequency

2.4000-2.4835 GHz5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference)

2.4000-2.4835 GHz:15 km (FCC)8 km (CE/SRRC/MIC)

Max Transmission Distance (with interference)

Strong Interference (urban landscape, limited line of sight, many competing signals):1.5-3 km (FCC/CE/SRRC/MIC)

Medium Interference (suburban landscape, open line of sight, some competing signals):3-9 km (FCC)3-6 km (CE/SRRC/MIC)

Weak Interference (open landscape abundant line of sight, few competing signals):9-15 km (FCC)6-8 km (CE/SRRC/MIC)

Transmitter Power (EIRP)

2.4 GHz:<33 dBm (FCC)<20 dBm (CE/SRRC/MIC)
5.8 GHz:<33 dBm (FCC)<14 dBm (CE)<23 dBm (SRRC)

Wi-Fi

Category	Specification
Protocol	Wi-Fi 6
Operating Frequency	2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz
Transmitter Power (EIRP)	2.4 GHz:<26 dBm (FCC)<20 dBm (CE/SRRC/MIC) 5.1 GHz:<26 dBm (FCC)<23 dBm (CE/SRRC/MIC) 5.8 GHz:<26 dBm (FCC/SRRC)<14 dBm (CE

Protocol

Wi-Fi 6

Operating Frequency

2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:<26 dBm (FCC)<20 dBm (CE/SRRC/MIC)
5.1 GHz:<26 dBm (FCC)<23 dBm (CE/SRRC/MIC)
5.8 GHz:<26 dBm (FCC/SRRC)<14 dBm (CE

Bluetooth

Category	Specification
Protocol	Bluetooth 5.1
Operating Frequency	2.4000-2.4835 GHz
Transmitter Power (EIRP)	<10 dBm

Protocol

Bluetooth 5.1

Operating Frequency

2.4000-2.4835 GHz

Transmitter Power (EIRP)

<10 dBm

BS30 Intelligent Battery Station

Category	Specification
Dimensions	353×267×148 mm
Net Weight	3.95 kg
Compatible Battery Type	TB30 Intelligent Flight BatteryWB37 Intelligent Battery
Input	100-240 VAC, 50/60 Hz
Output	TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery: 8.7 V, 6 A
Output Power	525 W
USB-C port	Max. output power of 65 W
USB-A port	Max. output power of 10 W (5 V, 2 A)
Power Consumption (when not charging battery)	<8 W
Output Power (when warming up battery)	Approx. 30 W
Operating Temperature	-20° to 40° C (-4° to 104° F)
Ingress Protection Rating	IP55 (with the cover closed properly)
Charging Time	Approx. 30 min (charging two TB30 batteries from 20%-90% Approx. 50 min (charging two TB30 batteries from 0%-100%)
Protection Features	Anti-Backflow Protection Short Circuit Protection Over Voltage Protection Over Current Protection Temperature Protection

Dimensions

353×267×148 mm

Net Weight

3.95 kg

Compatible Battery Type

TB30 Intelligent Flight BatteryWB37 Intelligent Battery

Input

100-240 VAC, 50/60 Hz

Output

TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A

Output Power

525 W

USB-C port

Max. output power of 65 W

USB-A port

Max. output power of 10 W (5 V, 2 A)

Power Consumption (when not charging battery)

<8 W

Output Power (when warming up battery)

Approx. 30 W

Operating Temperature

-20° to 40° C (-4° to 104° F)

Ingress Protection Rating

IP55 (with the cover closed properly)

Charging Time

Approx. 30 min (charging two TB30 batteries from 20%-90%
Approx. 50 min (charging two TB30 batteries from 0%-100%)

Protection Features

Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection

Aonic Care

Premium Care Package

Aonic Care+ (Drone)

Care+ Includes:

Premium warranty with coverage repair
Different rates apply for different models
Unlimited repair up to total coverage value
4× Maintenance sessions
1-Year Validity
Inclusive labor fee
Inclusive delivery charge

DJI Matrice 30 Series

DJI Matrice 30 / M30T

One Platform. Unlimited Possibilities.

Compact. Foldable. Built for Harsh Conditions.

Integrated Multi-Sensor Payload

Intelligent Flight & Safety Systems

Powerful Connectivity & Data Integration

Aonic Care+ (Drone)

Get In Touch
