Double The Spectral Resolution. Half The Hassle.

Integrating two five-band cameras, the RedEdge-MX and the new RedEdge-MX blue, this solution enables the most advanced remote sensing and vegetation research applications.

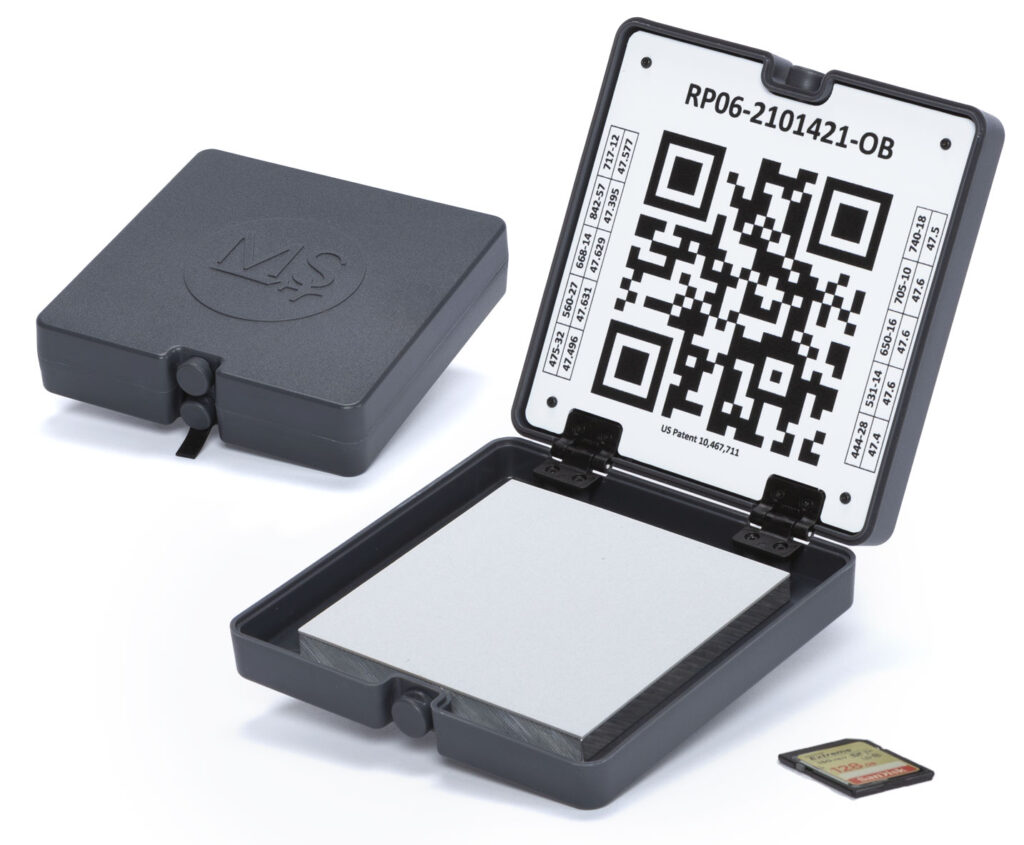

The New Compact CRP 2

A new compact version of our Calibrated Reflectance Panel (CRP) with the same functionality, now in a smaller size and easier to carry!

The CRP 2 in conjunction with our sensors enables more accurate compensation for incident light conditions. It has known reflectance values across the visible and near-infrared light spectrum.

Capture an image of the CRP 2 before and after each flight to provide an accurate representation of light conditions during the flight!

NOTE: SD card shown for approximate scale. CRP 2 measures 131 mm x 131 mm x 31 mm.

Direct Data Comparison between Satellite and Drone Imagery

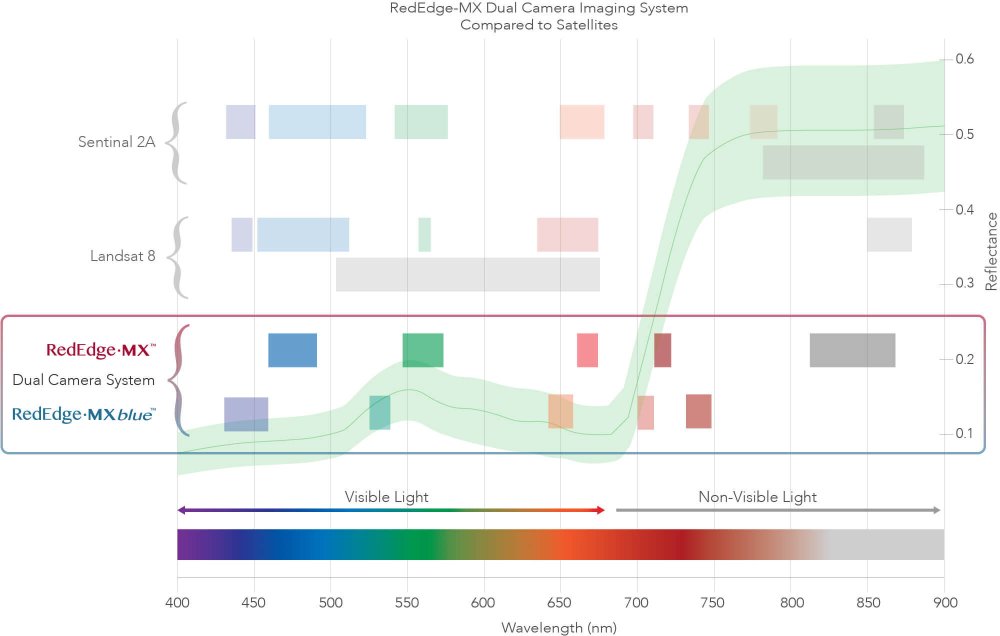

RedEdge-MX Dual Camera Imaging System Compared to Satellites

Features

  • Synchronized capture of all 10 bands for pixel aligned imagery
  • Standard 12 bit TIFF file outputs with embedded metadata for full access to raw data
  • Combined Downwelling Light Sensor and GPS for streamlined integration, accurate ambient light calibration. Only one DLS required
  • Radiometrically calibrated spectral imagers for precise, repeatable measurements
  • Global shutters on all 10 lenses for distortion-free results on every platform
  • Comes standard with fixed bracket and quick-mount connector for easy integration

Benefits

  • Compare imagery directly with Landsat and Sentinel satellite data
  • Data is easily processed using Pix4D, Agisoft, and other MicaSense data partners
  • Double the bands for double the analytical capabilities
  • Monitor shallow water environments with the new coastal blue aerosol band
  • Perform detailed analysis on chlorophyll efficiency with new red, green, and two new red edge bands strategically located on the red edge slope
micasense rededge mx dual

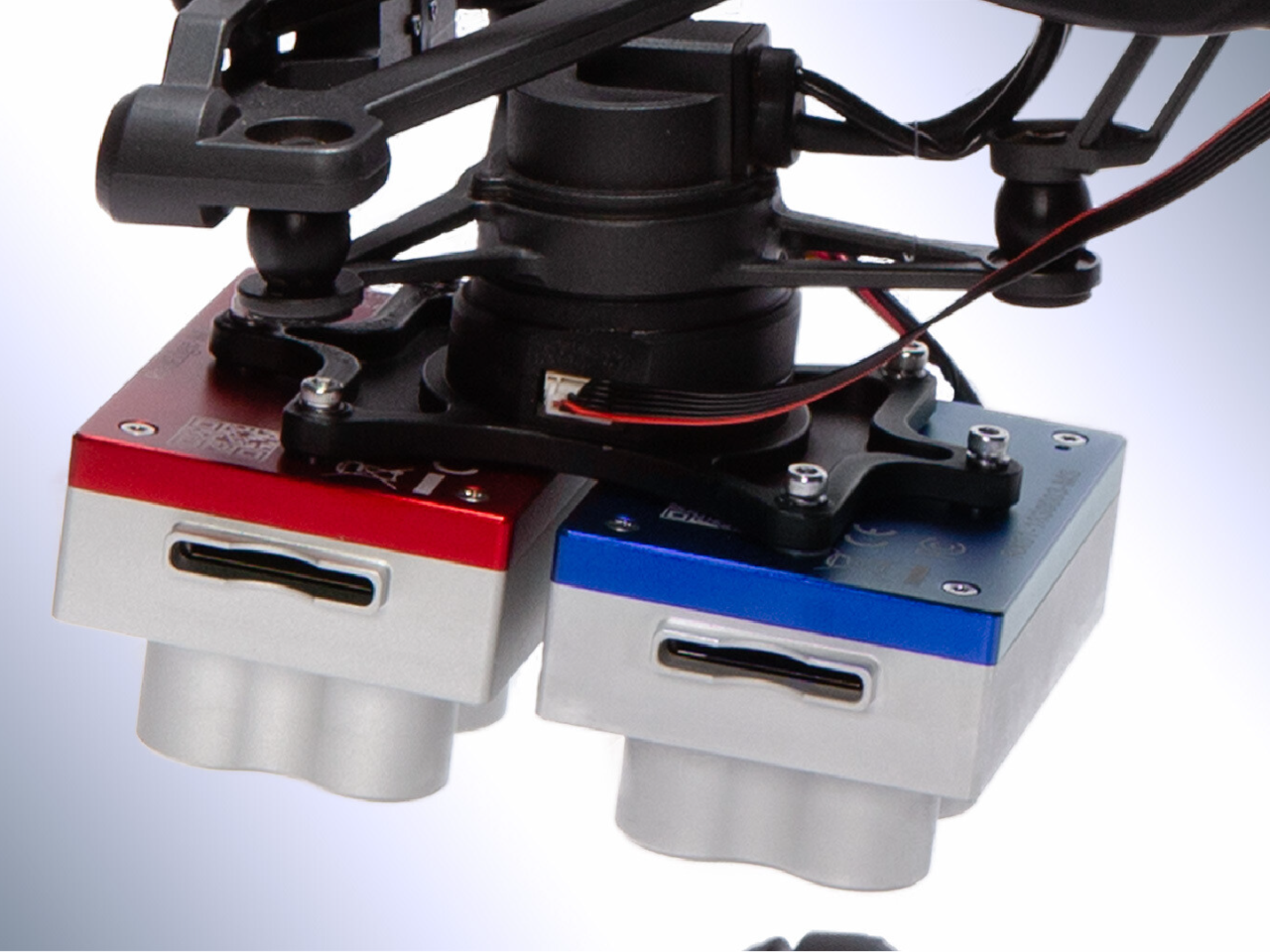

Works With What You Have

Fly

Flying with two cameras is as easy as flying with one. This solution is compatible with a wide range of aircraft, from large fixed wings to small multirotors, and comes standard with an integration kit for DJI drones.

Process

Because the two cameras are both versions of RedEdge-MX, flight planning and data processing can be done with industry-standard tools like Pix4D and Agisoft.

Analyze

Double the bands mean double the analytical capabilities. This solution captures synchronized, pixel-aligned imagery which allows the bands from both cameras to be used interchangeably for the creation of more indices.

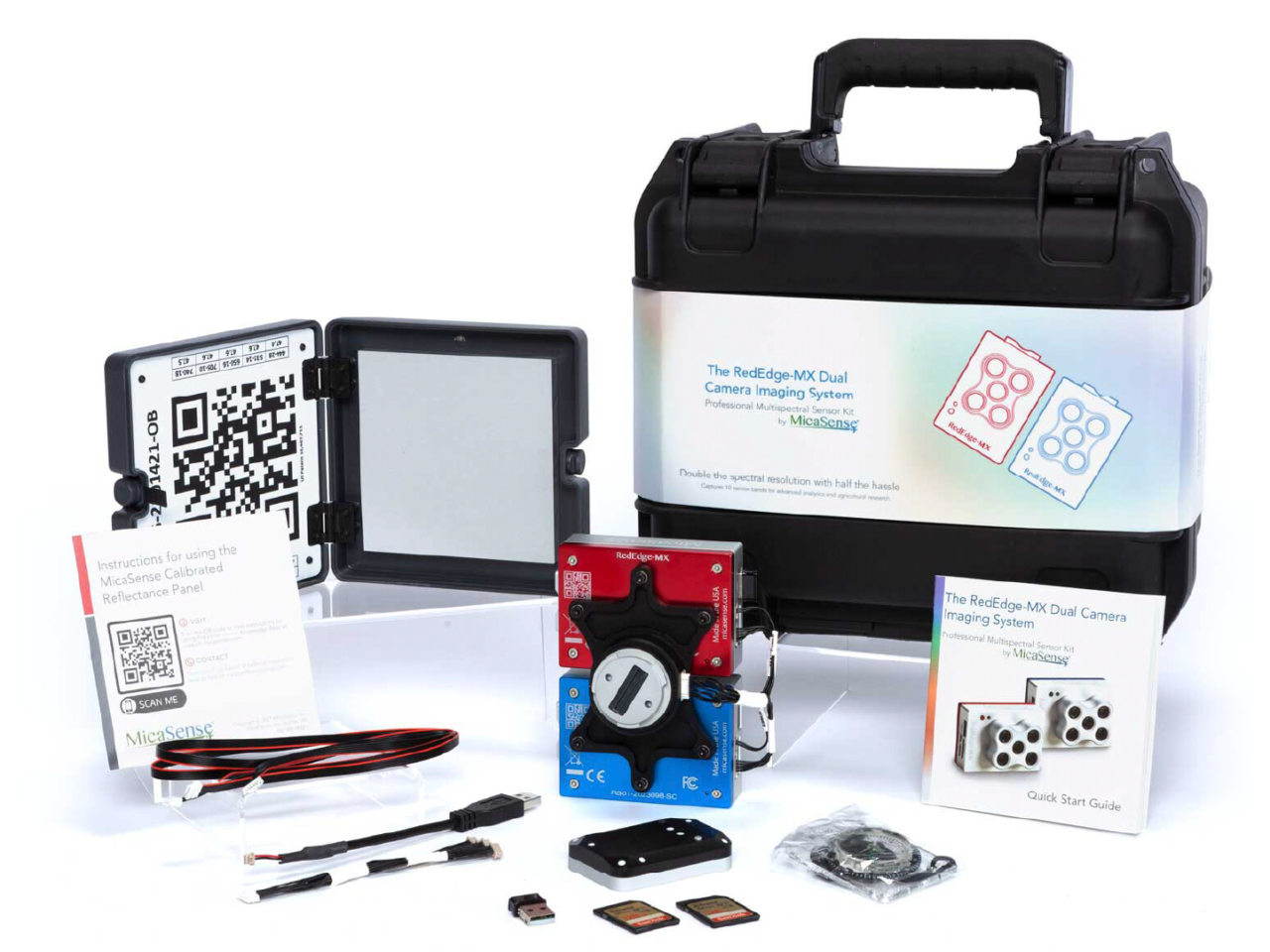

Dual Camera Full Kit

Integrating two five-band cameras, the RedEdge-MX and the new RedEdge-MX Blue, the Dual Camera Imaging system enables the most advanced remote sensing and vegetation research applications.

Complete Dual Camera Kit (For DJI Drones) includes:

  • RedEdge-MX and RedEdge-MX blue Sensors
  • Mounting Plate with Quick Connector
  • DLS 2 and the new CRP 2
  • Two 128GB SD Cards
  • Hard-Sided Carrying Case
  • Wire Harnesses
  • Mounting screws
  • Lens cover for both sensors
  • Compass

Dual Camera - RedEdge-MX Updgrade Kit

Get double the spectral resolution with your current RedEdge-MX and the new RedEdge-MX Blue Kit. A synchronized 10-band solution for advanced remote sensing and agricultural research.

Kit contents:

  • RedEdge-MX Blue sensor
  • Lens cover
  • Cables
  • Mounting screws
  • Mounting Plate with Quick Connector
  • Hard carrying case

*Dual Camera kits are compatible with DJI Inspire 2, Matrice 300, Matrice 200 series, Matrice 100/600 series. (DJI Zenmuse 30 gimbal adapter required)

*Integration with DJI M210 RTK drone has not been validated, therefore we cannot ensure compatibility.
