DJI Zenmuse L1

Instant Clarity. Superior Accuracy.

A LIDAR + RGB Solution for Aerial Surveying

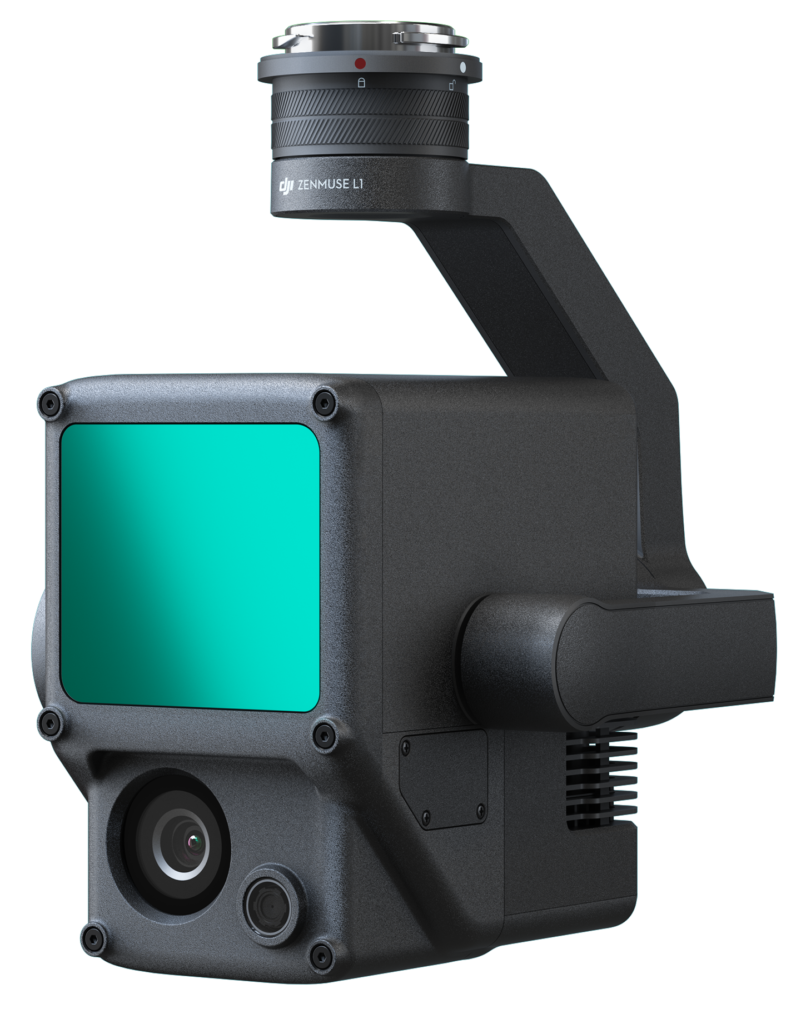

The DJI Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

dji zenmuse l1 / payload

Features

Integrates a Lidar module, an RGB camera, and a high-accuracy IMU

High Efficiency 2km2 covered in a single flight

High Accuracy
Vertical Accuracy: 5 cm
Horizontal Accuracy: 10 cm

Point Rate: 240,000 pts/s

Supports 3 Returns

Detection Range: 450 m
(80% reflectivity, 0 klx)

IP54 Ingress Protection Level

Point Cloud LiveView

Digitize Without Compromise

dji zenmuse l1 / payload

Exceptional Efficiency

Generate true-color point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.

dji zenmuse l1 / payload

Unparalleled Accuracy

Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.

dji zenmuse l1 / payload / matrice 300 rtk

Ready When You Are

The IP54 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

dji zenmuse l1 / payload

Visualize Data as You Fly

Livox Lidar Module

dji zenmuse l1 / payload

Everything in View

RGB Camera

dji zenmuse l1 / payload

Accurate Details

High-accuracy IMU

Recreate the World in 3D Point Clouds

Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly. You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Measurement and Annotation

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.

dji zenmuse l1 / payload

One-stop Post-processing

DJI Terra fuses the IMU and GNSS data for point cloud and visible light calculations, in addition to conducting POS data calculations so you can effortlessly generate reconstructed models and accuracy reports.

DJI Zenmuse L1. Instant Clarity. Superior Accuracy.
