High Precision Agriculture Spraying

Powerful and precise, Oryctes tranforms crop spraying for agribusinessess of all sizes.

oryctes / agriculture drone

Introducing Oryctes

Coverage of 16 Ha/Day

16 Liter Tank

RTK Positioning

Point-to-Point
Spraying

Oryctes is the first high accuracy point-to-point agriculture spraying drone created specifically for oil palm as a proven solution against damaging pests such as Rhinoceros Beetles

Oryctes In Action

Cutting-Edge Precision Point-to-Point Spraying

Precise Spraying

Controlled Amount

Reduce Pesticide Exposure

Tree Identification

Harnessing RTK positioning technology and a unique single-nozzle design, Oryctes sprays with centimetre-level precision. Precisely control the quantity and area of spraying to avoid using excessive pesticide

Proprietary Purpose Built Software

airamap desktop logo / airamap desktop / oryctes / agriculture drone app
airamap desktop logo / airamap desktop / oryctes / agriculture drone app

Advanced aerial mapping analytics software powered by our very own A.I engine.

Find Out More
oryctes logo / oryctes flight app / agriculture drone app
oryctes logo / oryctes flight app / agriculture drone app

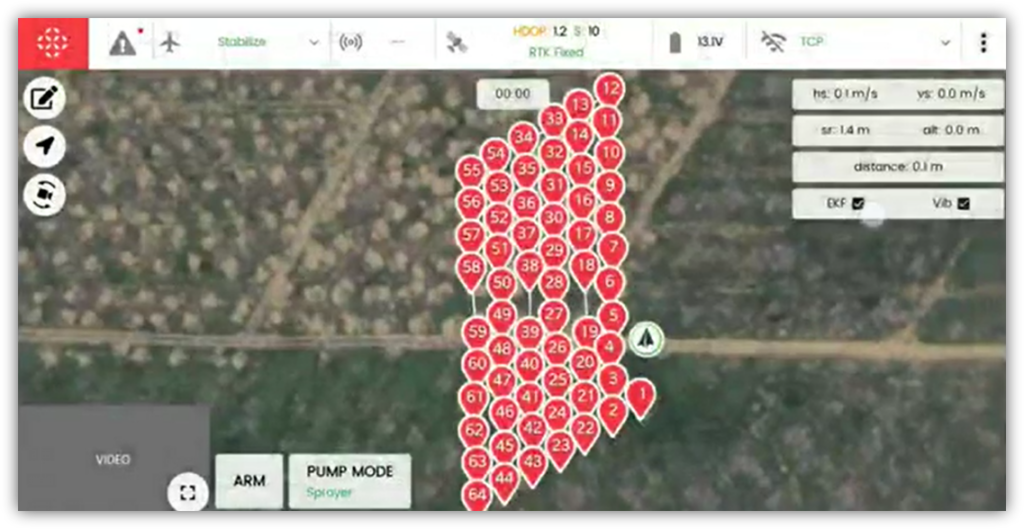

Gather essential telemetry data and track live drone location through the Oryctes Flight App. View missions and flight paths of your Oryctes.

Find Out More

Technical Specifications

Edit Content

AIRFRAME & TANK

ModelORY001
Extended Dimension2364.6 x 2144.6 x 556 mm
Folded Dimension1073 x 956 x 546 mm
Tank Capacity16L
Max Battery Size95 x 195 x 65 (x 2)
Unladen Weight (Without Battery)13.5 kg
Unladen Weight (With Battery)19.5 kg
Waterproof & Dustproof StandardIP65

FLIGHT PARAMETERS

Maximum Take-Off Weight35.5 kg
Power Battery22000 mAh, 12S LiPo
Max Thrust-Weight Ratio2.548
Flight Time15 min (Per Mission)
Optimum Operating Speed (Spot Sraying)3 m/s
Recommended Operating Temperature0 to 40℃
Edit Content

PROPULSION SYSTEM – MOTOR

Load/ Rotor5 – 7 kg
Max. Thrust15.3 kg
Weight (Full)1040 g
Waterproof & Dustproof StandardIPX7
Stator Size81 * 20 mm
KV Rating100 KV

PROPULSION SYSTEM – ESC

Recommended LiPo Battery6-12S LiPo
PWM Input Signal Level3.3 V / 5 V (Compatible)
Throttle Signal Frequency50-500 Hz
Operating Pulse Width1100-1940 μs (Fixed)
Max. Input Voltage52.2 V
Max. Input Current (Cont.)80 A (With Good Heat Dissipation)
Max. Peak Current (10s)100 A (With Good Heat Dissipation)
BECNo

PROPULSION SYSTEM – FOLDABLE PROPELLERS (R3390)

Diameter × Pitch29 x 11 inches
Weight (per propeller)180 g
Edit Content

Collision Avoidance Radar

ModelMR72
Transmit Frequency77 GHz
FOV Angle112° * 14°
Detection Range0.2 – 40 m
Distance Accuracy± 0.1 m
Size100 x 57 x 16.5 mm
Weight90 g

Altimeter Radar

ModelNRA15
Transmit Frequency24 GHz
FOV Angle41° * 37°
Detection Range30 – 100 m
Distance Accuracy± 0.04 m
Size100 x 57 x 16.5 mm
Weight81 g
Edit Content

SPRAYING PUMP – ORYCTES Dual

Oryctes Dual PumpModel 3210 Pump
VoltageDC 12 V
Maximum Current10 A
Power Rating120 W
Maximum Pressure1.3 MPa
Operating Pressure0.8 MPa
Maximum Flow Rate10 L/min

NOZZLE – SPOT SPRAYING

Recommended Nozzle TypeTP0030 solid stream spray nozzle (Standard) TG-8 full cone nozzle (Optional, purchase separately)
Quantity1
Flow Rate50-150 ml/s
Edit Content

RTK BASE STATION

ModelORYRTK
Multi-ConstellationGPS & GLONASS: readily available in L2C/L2OC
Galileo: full E5b constellation by ~2020
BeiDou: B2I available until migration to B2a
Range2 km, or greater
Positioning Accuracy1 cm + 1 ppm CEP
*(Relative accuracy to base, absolute accuracy depends on mapping and base accuracy)
Working Voltage3.3 V
Working Current30.3 mA
Output Power100 mW
Radio ProtocolLoRa
Operating Radio Frequency433 MHz
Battery Life per Charge8 hours
Battery Capacity10000mAh

Edit Content

DRONE CONTROLLER

ModelORYRC1
Operating Frequency2.400-2.4833 GHz
Supply Voltage3.7 V (1S Li-ion)
Working Current130 mA
Output power481 mW
Battery life25 hrs / charge
Range20 km Without Obstruction
FirmwareOryctes Flight App
Charge PortMicro-USB

Oryctes INTELLIGENT BATTERY

Battery Type12S LiPo
Capacity22000 mAh
Discharge1.0 CA
Nominal Voltage44.4 V
AC Impedance Resistance≤ 13.2mΩ
Discharge Cut-off Voltage36.0 V
Charge TimeApprox. 1 hour
Storage Temperature-10 °C ~ +45 °C
Operating TemperatureCharging: 0 ~ +45⁰C
Discharging: -10 ~ +60⁰C
Battery size172 x 107 x 235mm
Weight6 kg

Oryctes BATTERY CHARGER

ModelSkyRC PC2600
Input Voltage200 – 240 V
Output Voltage2600 W (1300 W x 2)
Charging CurrentBalance charge (16 A) / Fast charge (22 A)
Work ModesFast charge / Balance charge / Storage mode / Charging hub
Weight6780 g
Dimension236 mm * 175 mm * 267 mm

BATTERY CHARGING HUB

ModelSKyRC G1220-V2
Capacity4 pcs
Maximum Amperage20 A

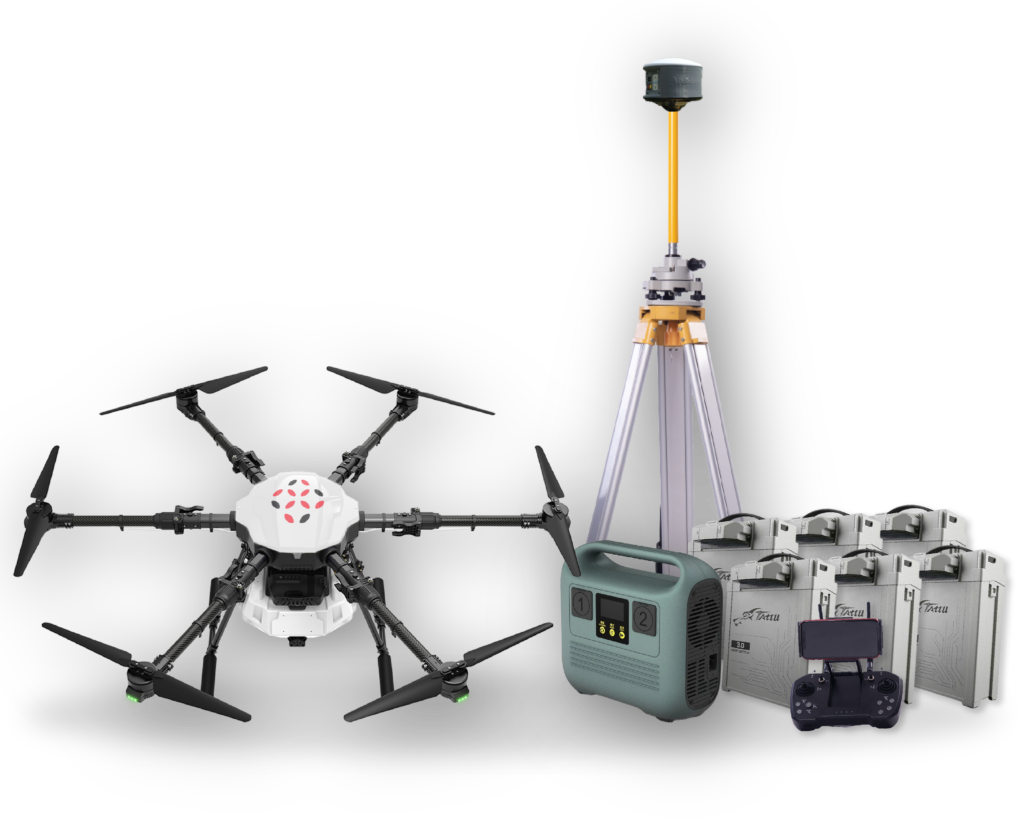

Oryctes Ready-To-Fly Package

Ideal for first-time users, this package contains one unit of Oryctes Dual and everything you need to set up and start flying.

  • 1 unit of Oryctes Dual
  • 1 unit of Oryctes remote controller
  • Android phone with Oryctes Flight App
  • 4 sets of Oryctes batteries
  • 1 RTK base station set
  • 1 Oryctes battery charger
oryctes package / agriculture drone / oryctes

Accuracy of RTK Spot Spraying Using Oryctes

Review spot spraying accuracy of Oryctes drone in spraying operations for oil palm plantations.

DOWNLOAD WHITEPAPER
